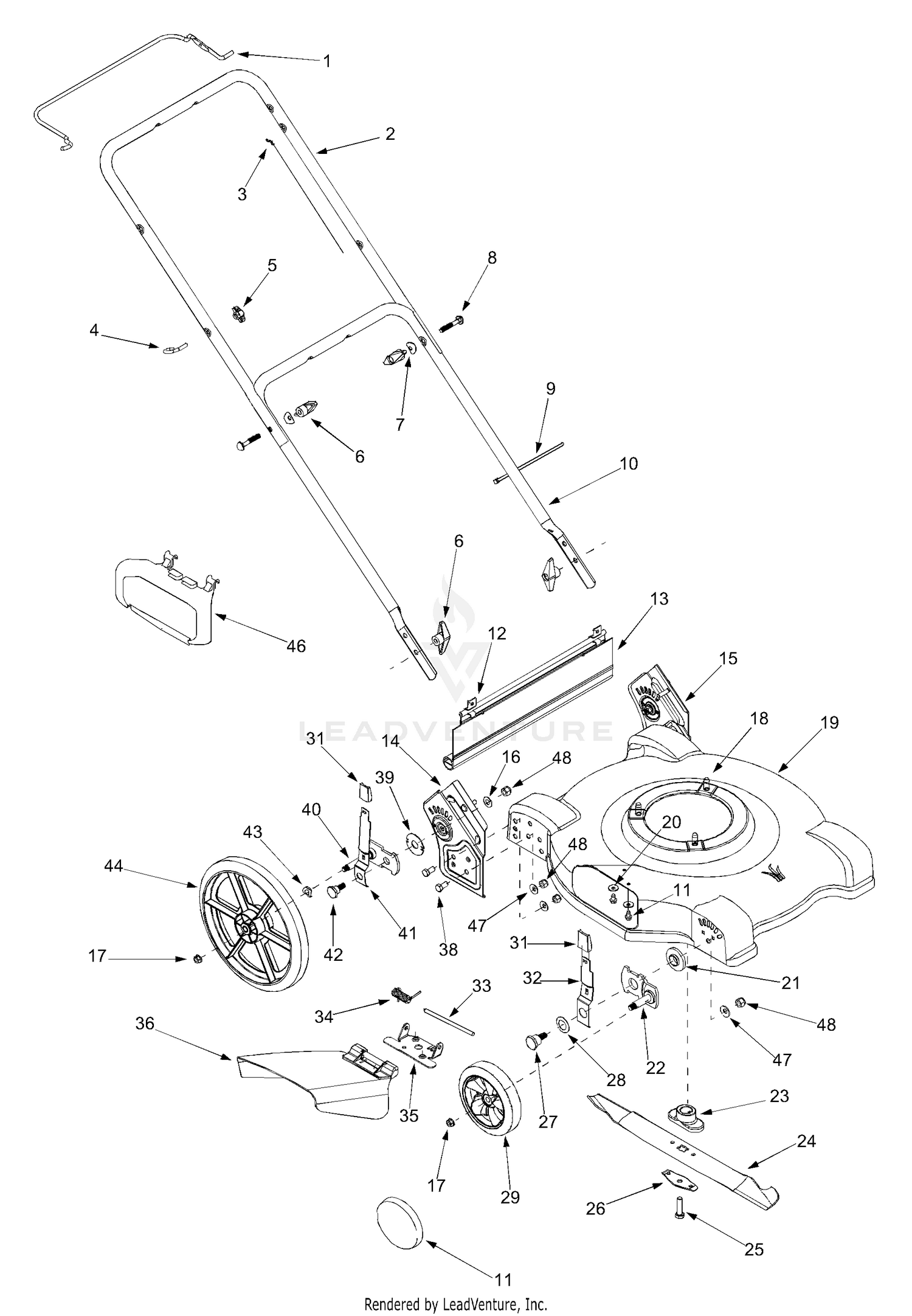

| Ref | Part Number | Description |
|---|
| 1 |
747-1161A |
Blade Control Handle Price: $10.27 |
| 2 |
749-1092A |
Upper Handle Price: $42.79 |
| 3 |
946-0957 |
Control Cable (brake) This part replaces 746-0957. Price: $16.30 |
| 4 |
710-1205 |
Eye Bolt Price: $3.53 |
| 5 |
720-0279 |
Wing Nut Price: $3.93 |
| 6 |
720-0284 |
Wing Nut Price: $4.08 |
| 7 |
736-0451 |
Shoulder Washer .320 ID x .93 OD Price: $3.75 |
| 8 |
710-1174 |
Carriage Bolt 5/16-18 x 2.0 Price: $6.28 |
| 9 |
725-0157 |
Cable Tie Price: $3.46 |
| 10 |
749-04037 |
Lower Handle Price: $46.59 |
| 11 |
731-0981C |
Hub Cap This part replaces 731-0981A. Price: $9.24 |
| 12 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 13 |
731-2537 |
Trail Shield This part replaces 731-2280. Price: $17.45 |
| 14 |
982-3062A |
HANDLE BRACKET (RH) Not Available This part replaces 682-3062A. Price: |
| 15 |
682-3063A |
HANDLE BRACKET ASSEMBLY (LH) Not Available Price: |
| 16 |
736-3050 |
Flat Washer .406 ID x .812 OD Price: $3.90 |
| 17 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 18 |
710-0654A |
Hex Washer Screw 3/8-16 x 1.0 Price: $3.75 |
| 20 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 21 |
741-0751 |
Height Adjuster Bearing Price: $7.50 |
| 22 |
682-0113 |
PIVOT ARM ASSEMBLY Not Available Price: |
| 23 |
748-0376E |
Blade Adapter This part replaces 748-0376C. Price: $19.13 |
| 24 |
942-0642A |
Standard Blade 22-inch This part replaces 742-0642A. Price: $24.37 |
| 25 |
710-1044 |
Hex Cap Screw 3/8-24 x 1.5 Price: $3.48 |
| 26 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524A. Price: $5.34 |
| 27 |
738-1172 |
Shoulder Screw 3/8 - 16 x .302 Price: $5.01 |
| 28 |
736-0741 |
Bell Washer .760 ID x 1.25 OD Price: $3.99 |
| 29 |
734-1988 |
Front Wheel Assembly 7 x 1.8 Price: $18.92 |
| 31 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 32 |
732-1026 |
Front Spring Lever Price: $5.77 |
| 33 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 34 |
732-1014C |
Torsion Spring This part replaces 732-1014. Price: $7.40 |
| 35 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1035B. Price: |
| 36 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1034B. Price: |
| 38 |
710-0216 |
Hex Cap Screw 3/8-16 x .75 Price: $3.93 |
| 39 |
741-0717 |
THRUST BEARING Not Available Price: |
| 40 |
682-0093 |
PIVOT ARM ASSEMBLY 22" Not Available Price: |
| 41 |
732-0984B |
SPRING LEVER Not Available Price: |
| 42 |
738-1127B |
Shoulder Screw 3/8 - 16 x.442 This part replaces 738-1127. Price: $6.36 |
| 43 |
736-0182 |
Spring Washer Price: $3.90 |
| 44 |
734-04030 |
WHEEL ASSEMBLY 14X1.8 This part replaces 734-1864. Price: $67.28 |
| 47 |
736-0105 |
Washer Spacer .401 ID x .870 OD Price: $3.96 |
| 48 |
712-0130 |
Hex Lock Nut 3/8-16 Price: $3.61 |
