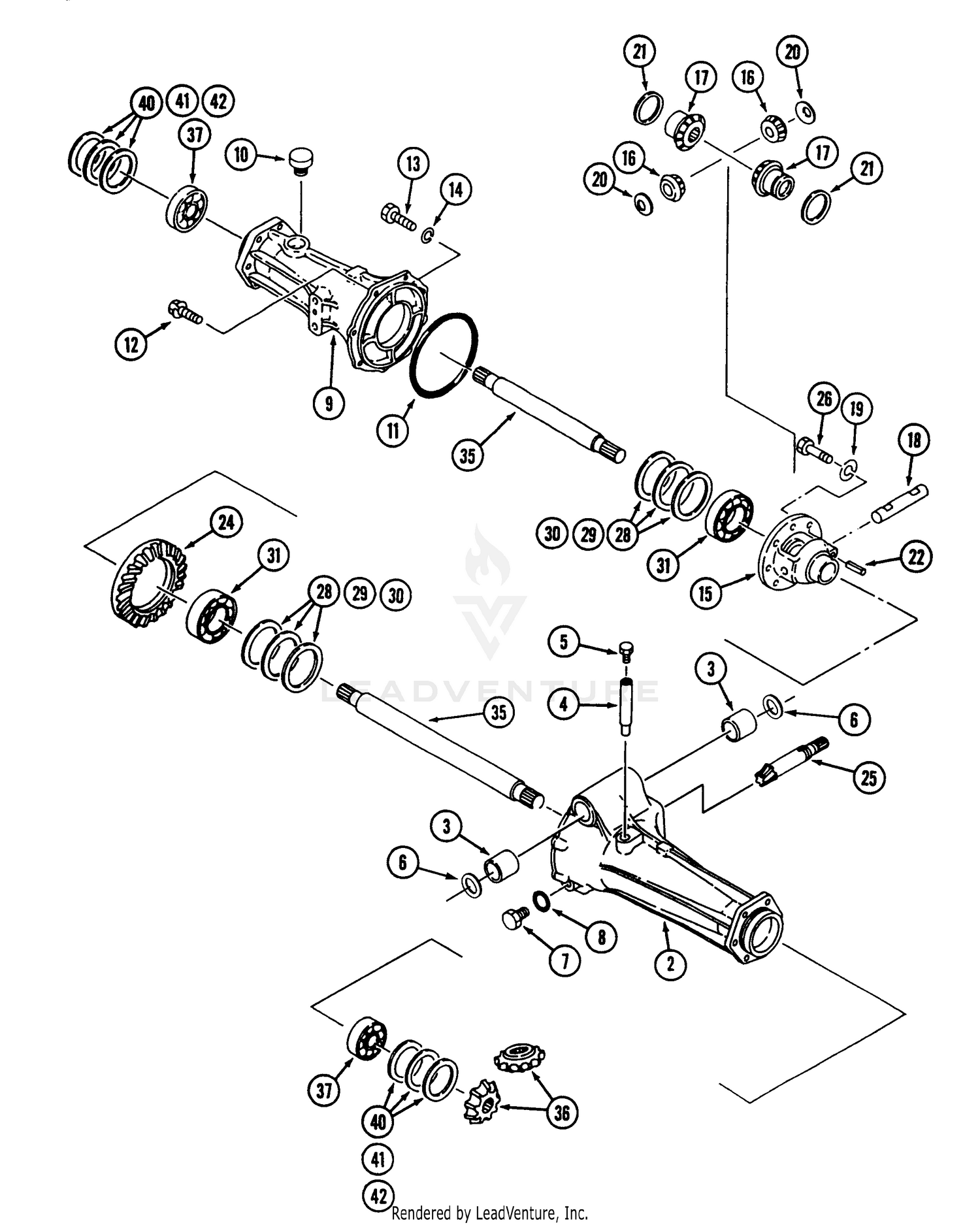

Front Axle - MFD (Part 1)
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 144925 | Battery Price: Call Us |
| 1 | 62-2570 | FILLER CAP ASM Price: $125.61 |
| 2 | None | Housing, Axle A |
| 2 | 32144-34 | SCREW-HWHTF Price: $4.19 |
| 2 | 74760412 | Bolt Hex Hd 1/4-20unc X 3/4 Price: Call Us |
| 3 | 95-5951 | STRIP-SEAL Price: $2.55 |
| 3 | MA-07961030400 | BUSHING Not Available Price: |
| 4 | 95-7118 | TANK-HYDRAULIC Price: $761.62 |
| 4 | MA-19642117AG0 | PIPE Not Available Price: |
| 5 | 27-2400 | RESERVOIR STRAP ASM Price: $104.75 |
| 5 | MA-11190621000 | PLUG Not Available Price: |
| 6 | 3274-19 | SCREW-HSH Price: $1.42 |
| 7 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 7 | MA-F5000-16000 | PLUG Not Available Price: |
| 8 | 156417 | Case Battery Mech Hinge Price: Call Us |
| 8 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 8 | MA-08331001601 | SEAL WASHER Not Available This part replaces MA-08331001600. Price: |
| 9 | 321-3 | SCREW-HH Price: $0.28 |
| 9 | MA-10302119AG2 | CASE B-CENTER MFD Not Available Price: |
| 10 | MA-11911211000 | CAP Not Available Price: |
| 11 | MA-08300501500 | O-RING Not Available Price: |
| 12 | MA-F1550110030 | Bolt Price: $3.52 |
| 13 | MA-69542-64700 | BOLT Not Available Price: |
| 14 | MA-A3600101002 | WASHER,SPRING Not Available Price: |
| 15 | MA-10312121000 | CASE,DIFF Not Available Price: |
| 16 | 153664 | Switch Interlock Push-In Price: Call Us |
| 16 | MA-10191412000 | PINION Not Available Price: |
| 17 | MA-10191413000 | GEAR SIDE Not Available Price: |
| 18 | MA-10191414000 | Shaft, Pinion Price: $101.59 |
| 19 | MA-A3600101002 | WASHER,SPRING Not Available Price: |
| 20 | MA-10191415000 | WASHER THRUST Not Available Price: |
| 21 | 166181 | Harness Socket Light Price: Call Us |
| 21 | MA-10191416000 | WASHER THRUST Not Available Price: |
| 22 | 4152J | Bulb, Light # 1156 Price: Call Us |
| 22 | MA-05500006040 | SPRING PIN Not Available Price: |
| 24 | None | Gear, Ring |
| 24 | 4799J | Cable Battery Price: Call Us |
| 25 | None | Shaft, Pinion |
| 25 | 146147 | Cable Battery 6 Ga Red w/16 wire Price: Call Us |
| 26 | 166180 | Fuse 15 Amp Price: Call Us |
| 26 | MA-10312132000 | BOLT Not Available Price: |
| 27 | 73510400 | Nut Keps Hex 1/4-20 Unc Price: Call Us |
| 28 | 4207J | Cable Ground 6ga 12 black Price: Call Us |
| 28 | MA-10070618000 | LINER=0.1 Not Available Price: |
| 29 | 121305X | Switch Plunger Nc Gray Price: Call Us |
| 29 | MA-10070618100 | LINER=0.2 Not Available Price: |
| 30 | 163968 | Switch Ign Price: Call Us |
| 30 | MA-10070618200 | SHIM=0.4 Not Available Price: |
| 31 | MA-07500060100 | BEARING NSK6010 Not Available Price: |
| 33 | 140401 | Key Ign Molded Generic Price: Call Us |
| 35 | MA-10302128000 | SHAFT DIFF Not Available Price: |
| 36 | MA-19642118000 | GEAR 15T Not Available Price: |
| 37 | MA-07500063050 | Bearing Price: $33.78 |
| 40 | 170217 | Harness Ign Price: Call Us |
| 40 | MA-11353016000 | LINER Not Available Price: |
| 41 | 71110408 | Bolt Fin Hex 1/4-20uncx 1/2 Price: Call Us |
| 41 | MA-07310002502 | LINER Not Available Price: |
| 42 | 131563 | Cover Terminal Red Price: Call Us |
| 42 | MA-07310002504 | LINER Not Available Price: |
| 43 | 145673 | Solenoid Price: Call Us |
| 45 | 121433X | Ammeter Rectangular Price: Call Us |
