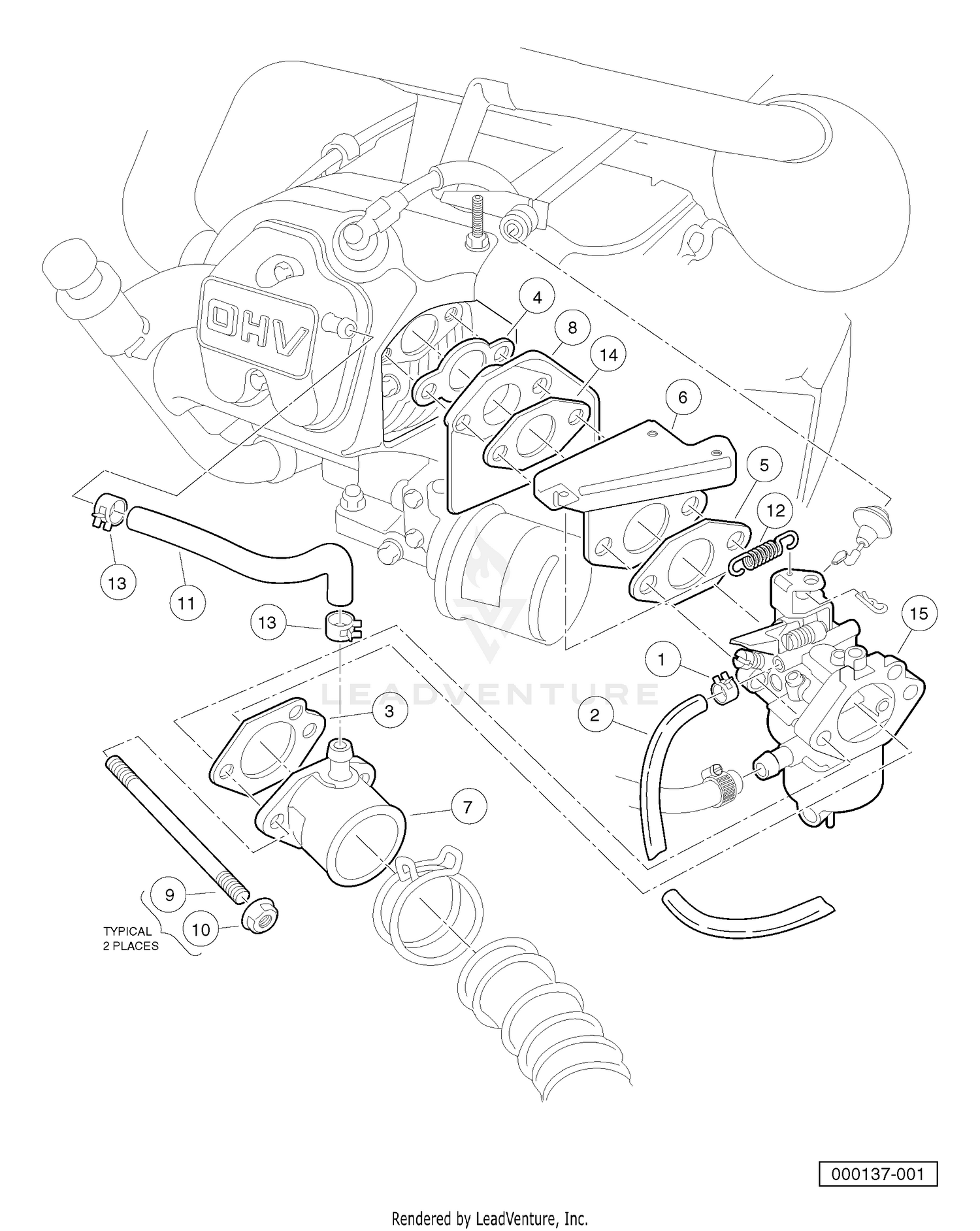

| Ref | Part Number | Description |
|---|
| 1 |
603000185 |
CLAMP Price: $2.99 |
| 2 |
603000240 |
FUEL LINE Price: $3.99 |
| 3 |
603000298 |
GASKET, CARB TO INTAKE MANIFOL Price: $5.99 |
| 4 |
603000299 |
GASKET, ENGINE TO INSULATOR Price: $4.99 |
| 5 |
603000300 |
GASKET, SPRG BRKT TO CARB OHV Price: $5.99 |
| 6 |
603000302 |
BRACKET, THROTTLE SPRG RETURN Price: $14.99 |
| 7 |
603000317 |
PIPE, INTAKE MANIFOLD Price: $12.99 |
| 8 |
603000470 |
INSULATOR, CARBURETOR Price: $7.99 |
| 9 |
603000472 |
STUD, M6-1.00 2-ENDED Price: $3.99 |
| 10 |
603000341 |
NUT Price: $9.99 |
| 11 |
603000352 |
TUBE, CRANKCASE VENT Price: $8.99 |
| 12 |
603000358 |
SPRING, THROTTLE RETURN Price: $4.99 |
| 13 |
603000411 |
CLAMP Price: $1.99 |
| 14 |
603000620 |
GASKET, INSULATOR TO BRACKET Price: $8.99 |
| 15 |
603000852 |
FE400 CARBURETOR ASSY Price: $749.99 |
| 16 |
603000469 |
HIGH ALTITUDE JET Price: $14.99 |
| 18 |
603000319 |
FLOAT ASSEMBLY Price: $84.99 |
| 19 |
603000325 |
SCREW ASSEMBLY Price: $12.99 |
| 20 |
603000353 |
JET, #45 PILOT Price: $22.99 |
| 21 |
603000361 |
BOLT Price: $19.99 |
| 22 |
603000409 |
CHAMBER ASSEMBLY - FLOAT Price: $74.99 |
| 23 |
603000324 |
SCREW ASSEMBLY Price: $17.99 |
| 24 |
603000858 |
Nozzle, Main, Carburetor Price: $11.85 |
