Home / OPE / *Legacy / Versatiller / 12168 Versatiller (5HP) 121681100101-121681199999 / Handlebar, Mounting Plate, Tine Hood Assembly

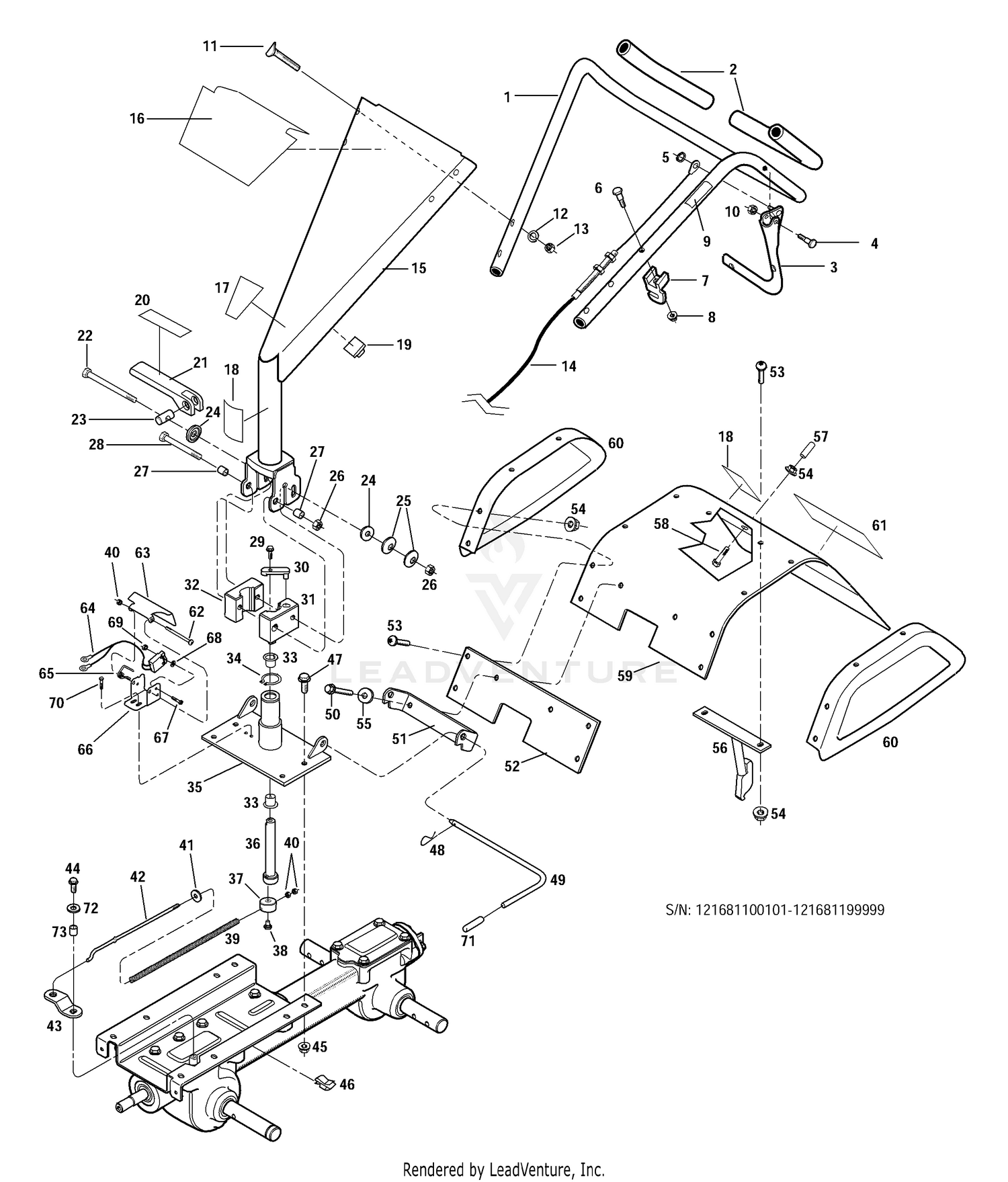

Handlebar, Mounting Plate, Tine Hood Assembly

Handlebar, Mounting Plate, Tine Hood Assembly

Parts (70)

RefPart NumberDescription
2 1915269 UPPER HANDLEBAR FOAM GRIP Not Available Price:
3 1911383001 BAIL-CONTR Not Available Price:
4 710-0606 Hex Bolt 1/4-20 x 1.50 This part replaces 1100811. Price: $4.67
5 1911437 RING-GRIP Not Available Price:
6 1983658 SCREW 1/4- Not Available Price:
7 1749977001 CABLE BRACKET Not Available This part replaces 1749977. Price:
8 712-0324 Hex Ins. L-Nut 1/4-20 Thd. This part replaces 1185814. Price: $3.38
9 1911359 DECAL-DRIVE 12168 Not Available Price:
10 712-0324 Hex Ins. L-Nut 1/4-20 Thd. This part replaces GW-9811. Price: $3.38
11 710-0805A SCREW 5/16-18 x 1.5 LG This part replaces GW-9854. Price: $3.75
12 936-0119 LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29
13 712-3010 HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89
14 1911440 CONTROL CABLE 12168 Not Available Price:
16 1911362 DECAL-LOGO 12168 Not Available Price:
17 1911421 DECAL (12168) Not Available Price:
18 1911361 DECAL-TINE WARNING Not Available Price:
19 1724879 CLIP-CORD Not Available Price:
20 1911483 DECAL-H/BAR ROTATI Not Available Price:
21 1911368001 LOCKING LEVER Not Available Price:
22 710-0693 Hex Bolt 3/8-16 x 4.5" ig. This part replaces 1915433. Price: $12.87
23 1915434 PIVOT Not Available Price:
24 1911505 WASHER-GRIPPER .17 Not Available This part replaces 1915432. Price:
25 690-120-0104 BLADE - 18" x 1/2" Not Available This part replaces 94-022. Price:
26 712-0375 Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02
27 GW-9091 SPACER-IDL Not Available Price:
28 1911403 SCREW-HH 3/8-16X3.25 Not Available Price:
29 1186310 Screw, 1/4-20 x 5/8 Self-Tapping Price: $3.11
30 1915429 ENGAGE/DISENGAGE ARM Not Available Price:
31 1915431001 Clamp Price: Call Us
32 1915430001 Clamp Price: Call Us
33 741-0591 Flange Bearing This part replaces 1911381. Price: $4.02
34 716-0116 Ring, Retainer This part replaces 1118816. Price: $4.19
35 1915443001 Base Plate Weldment Price: Call Us
36 1915428 SHAFT-WHEEL ENG/DI Not Available Price:
37 1911352 SWIVEL-LIN Not Available Price:
38 1911353 SCR-SHLDR 1/4-20X. Not Available Price:
39 1911351 SPRING-CLUTCH 1216 Not Available Price:
40 1983039 NUT-HK Not Available This part replaces 1737938. Price:
41 690-120-0058 BLADE - 21-1/2" x 1/2" Not Available This part replaces 94-019. Price:
42 1911350 ROD-ADJUST Not Available Price:
43 1911365 LEVER-ECC Not Available Price:
44 710-0599 SCREW 1/4-20 X.500 This part replaces 1186308. Price: $3.86
45 712-04054 NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95
46 GW-9218 CLIP-SPECIAL Not Available Price:
47 710-04043 SCREW 5/16-18 This part replaces 1186329. Price: $3.96
48 97111 Hair Pin Price: Call Us
49 1911379 PIN-HOOD L Not Available Price:
50 710-0206 Hex Screw, 1/4-20 x 7/8 This part replaces 1111600. Price: $3.94
51 1911377010 LATCH-HOOD Not Available Price:
52 1011438010 HOOD REINFORCEMENT PLATE Not Available Price:
53 1911402 SCREW-BH SKT 1/4-20X Not Available Price:
54 1186389 Lock Nut Price: $3.05
55 736-3020 Flat Washer .271 ID x .630 OD This part replaces 1107381. Price: $5.94
56 1911385010 SUPPORT-HOOD REAR Not Available Price:
57 1911472 STOP-FLAP 12168 Not Available Price:
58 1911473 SCR-HH TAP Not Available Price:
59 1911461010 HOOD ASSEMBLY Not Available Price:
60 1911336010 SHIELD-SIDE 12168 Not Available Price:
61 1911360 DECAL-HOOD 12168 Not Available Price:
62 1911467 SCR-PH 10- Not Available Price:
63 1915454001 COVER-SWITCH Not Available Price:
64 1911428 ASSM-SWITC Not Available Price:
65 1911451 SPRING-TOR Not Available Price:
66 1915455001 BASE-SWITCH Not Available Price:
67 1911470 SCR-HH #6- Not Available Price:
68 1911469 FLAT WASHER Not Available Price:
69 1911468 SEMS NUT # Not Available Price:
70 710-04454 HEX SCREW #10-32 This part replaces 1186299. Price: $3.71
71 1718534 GRIP-HANDLE Not Available Price:
72 736-3020 Flat Washer .271 ID x .630 OD This part replaces 1107381. Price: $5.94
