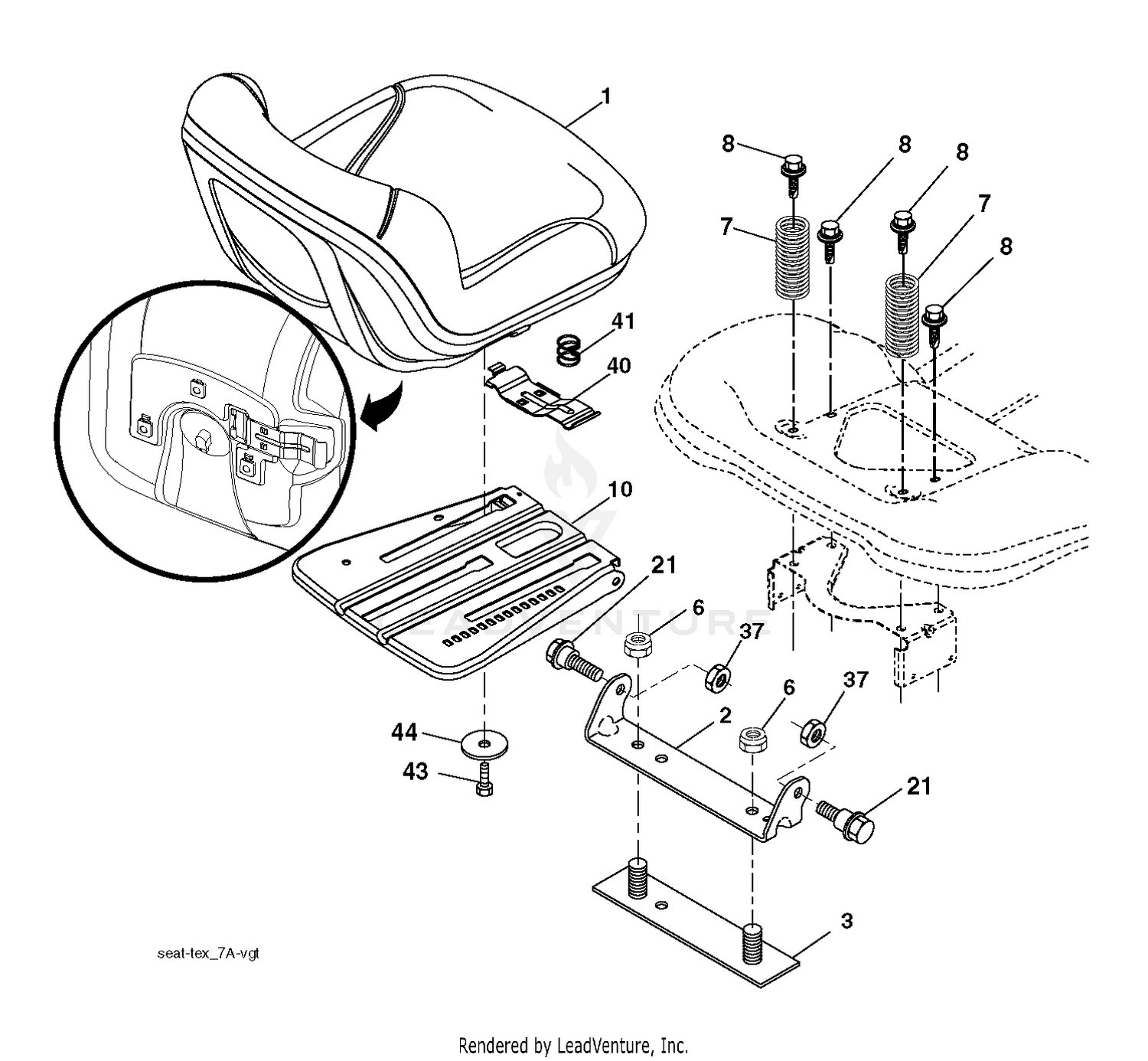

| Ref | Part Number | Description |
|---|
| 1 |
532411405 |
SEAT.TG130.BLACK.NO/LOGO. Price: $168.99 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $5.99 |
| 3 |
532140675 |
STRAP Price: $3.99 |
| 6 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 7 |
539110300 |
SRPING.SEAT This part replaces 532124181. Price: $2.99 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
532196977 |
PAN.ASM.SEAT.3PT Price: $31.99 |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
532171852 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 37 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 40 |
532197661 |
HANDLE.SLIDE.SEAT.TEX.BLACK Price: $12.99 |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $2.99 |
| 43 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 874760612. Price: $3.99 |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
