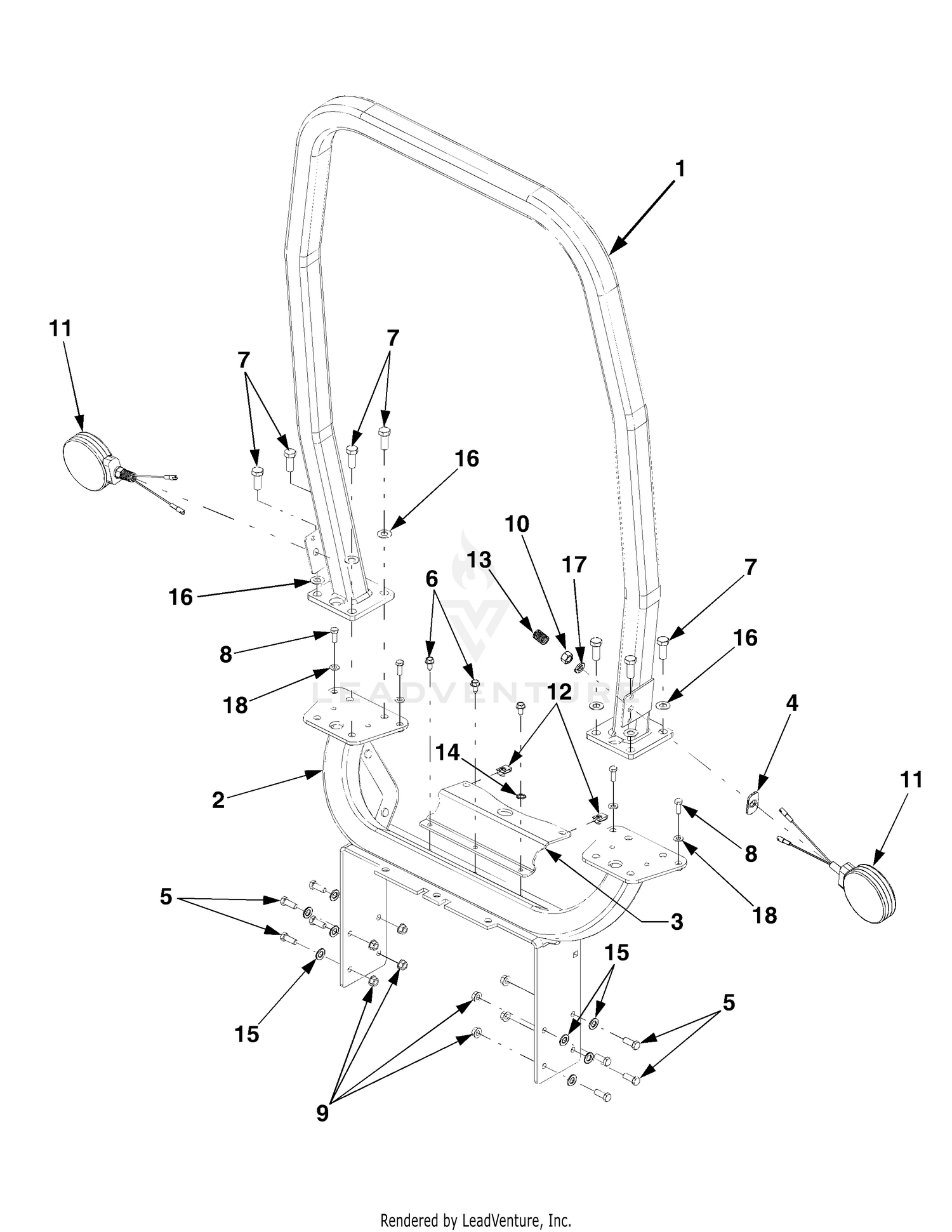

| Ref | Part Number | Description |
|---|
| 1 |
603-04011 |
UPPER FIXED ROPS ASSEMBLY Not Available Price: |
| 1 |
76-6990 |
CAPSCREW Price: $0.93 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
603-04012 |
LOWER ROPS ASSEMBLY Not Available Price: |
| 2 |
76-6920 |
BACK PLATE ASSY Price: $748.76 |
| 3 |
703-05032-0637 |
REAR SEAT BRACKET (POWDER BLACK) Not Available Price: |
| 3 |
76-6980 |
O-RING Price: $11.28 |
| 4 |
703-05770-0637 |
HAZARD LAMP PLATE (POWDER BLACK) Not Available Price: |
| 5 |
710-0514 |
Screw, Hex Cap, 3/8-16 x 1.0 GR5 . Price: $3.78 |
| 5 |
76-6970 |
INSERT-PLATE, CAM Price: $140.84 |
| 6 |
710-1260A |
Screw, Hex Wash. Hd. Tapp 5/16-18 x .75 Price: $3.34 |
| 6 |
76-6940 |
DISCONTINUED Price: Call Us |
| 7 |
710-3032 |
Screw, Hex Cap, 1/2-13 x 1.25 GR5 Price: $5.66 |
| 8 |
710-3038 |
Screw, Hex Cap, 5/16-18 x .875 GR5 Price: $4.17 |
| 8 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 9 |
712-04065 |
Nut, Hex Flange Lock, 3/8-16 GRF Price: $3.68 |
| 9 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 10 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 10 |
912-3066 |
Hex Nut, 1/2-20 This part replaces 712-3066. Price: $6.01 |
| 11 |
76-7020 |
SPACER Price: $23.61 |
| 11 |
925-04266 |
HAZARD LAMP ASSEMBLY Not Available This part replaces 725-04266. Price: |
| 12 |
726-0211 |
Nut, Speed, 5/16-18 Price: $3.90 |
| 12 |
76-6930 |
SHAFT-DRIVE Price: $1,328.23 |
| 13 |
731-0757 |
CONVOLUTED CONDUIT Not Available Price: |
| 13 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 14 |
736-0148 |
Washer, Ext. Tooth Lock, 3/8 Price: $3.19 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
736-0185 |
Washer, Flat, .375 x .74x.063 Price: $3.43 |
| 16 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 17 |
736-0921 |
Washer, Lock, 1/2 Price: $3.90 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 583864501. Price: $6.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ Price: $79.99 |
| 73 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532440619. Price: $19.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532448275. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532441455. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 284 |
532417693 |
NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
| 307 |
874180412 |
SCREW.MACHINE.CR.1/4-20 Price: $3.99 |
