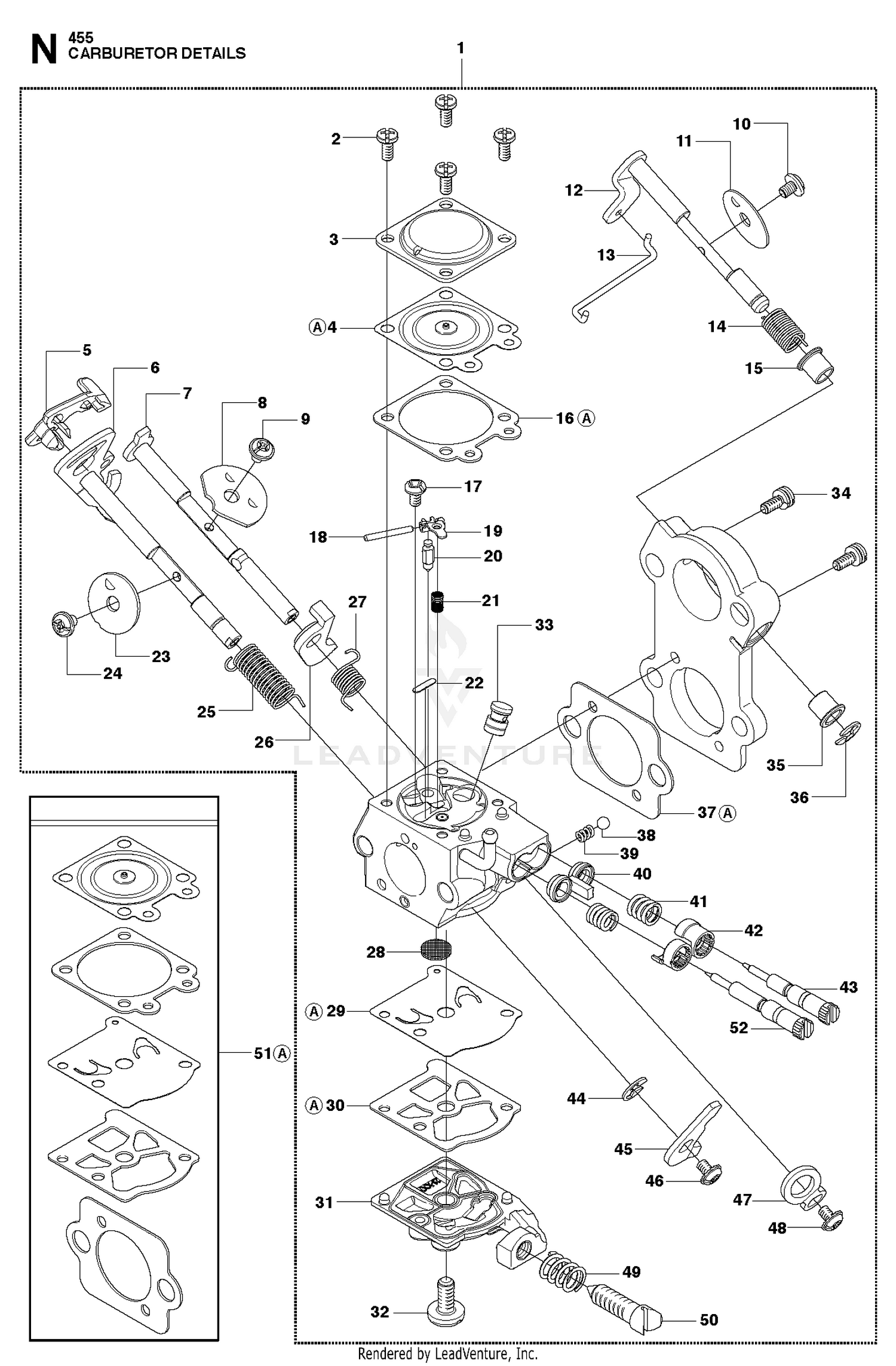

CARBURETOR DETAILS
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 503584601 | SCREW Price: $2.99 |
| 3 | 505316754 | DIAPHRAGM COVER Price: $3.99 |
| 4 | 502847001 | DIAPHRAGM Price: $54.99 |
| 5 | 537306201 | BUCKLE Price: $4.99 |
| 6 | 537407401 | SHAFT Price: $7.99 |
| 7 | 537407501 | SHAFT Price: $22.99 |
| 8 | 537407701 | VALVE Price: $8.99 |
| 9 | 501468701 | SCREW This part replaces 537003401. Price: $6.99 |
| 10 | 501468701 | SCREW This part replaces 537003401. Price: $6.99 |
| 11 | 537406801 | CHOKE FLAP Price: $6.99 |
| 12 | 537406901 | SHAFT Price: $5.99 |
| 13 | 537407201 | ROD Price: $11.99 |
| 14 | 537407001 | SPRING Price: $4.99 |
| 15 | 537406701 | SLEEVE Price: $2.99 |
| 16 | 504350906 | GASKET Price: $9.99 |
| 17 | 502847101 | SCREW Price: $6.99 |
| 18 | 505520125 | FULCRUM PIN Price: $6.99 |
| 19 | 502847401 | LEVER Price: $3.99 |
| 20 | 503563401 | INLET NEEDLE Price: $14.99 |
| 21 | 503914701 | SPRING Price: $9.99 |
| 22 | 502846901 | PLUG Price: $8.99 |
| 23 | 502846601 | VALVE Price: $7.99 |
| 24 | 544111501 | SCREW Price: $6.99 |
| 25 | 537408401 | SPRING Price: $3.99 |
| 26 | 537409201 | LEVER Price: $3.99 |
| 27 | 537408601 | SPRING Price: $3.99 |
| 28 | 501666101 | FUEL INLET SCREEN Price: $12.99 |
| 29 | 504130807 | PUMP DIAPHRAGM This part replaces 502213601. Price: $27.99 |
| 30 | 504130906 | GASKET Price: $9.99 |
| 31 | 537407301 | COVER Price: $5.99 |
| 32 | 501466901 | SCREW Price: $7.99 |
| 33 | 502846801 | NOZZLE ASSY Price: $5.99 |
| 34 | 537408301 | SCREW Price: $7.99 |
| 36 | 502119801 | CLIPS This part replaces 505316736. Price: $7.99 |
| 37 | 537408101 | GASKET Price: $9.99 |
| 38 | 501468501 | BALL Price: $6.99 |
| 39 | 501468401 | SPRING Price: $6.99 |
| 40 | 544971401 | RETAINER Price: $9.99 |
| 41 | 544971001 | SPRING Price: $4.99 |
| 42 | 544970801 | LIMITER CAP Price: $3.99 |
| 44 | 502119801 | CLIPS This part replaces 505316736. Price: $7.99 |
| 45 | 537407101 | LEVER Price: $3.99 |
| 46 | 501468701 | SCREW Price: $6.99 |
| 47 | 537407601 | PLATE Price: $3.99 |
| 48 | 501468701 | SCREW Price: $6.99 |
| 49 | 503564201 | SPRING Price: $9.99 |
| 50 | 537408201 | SCREW Price: $14.99 |
