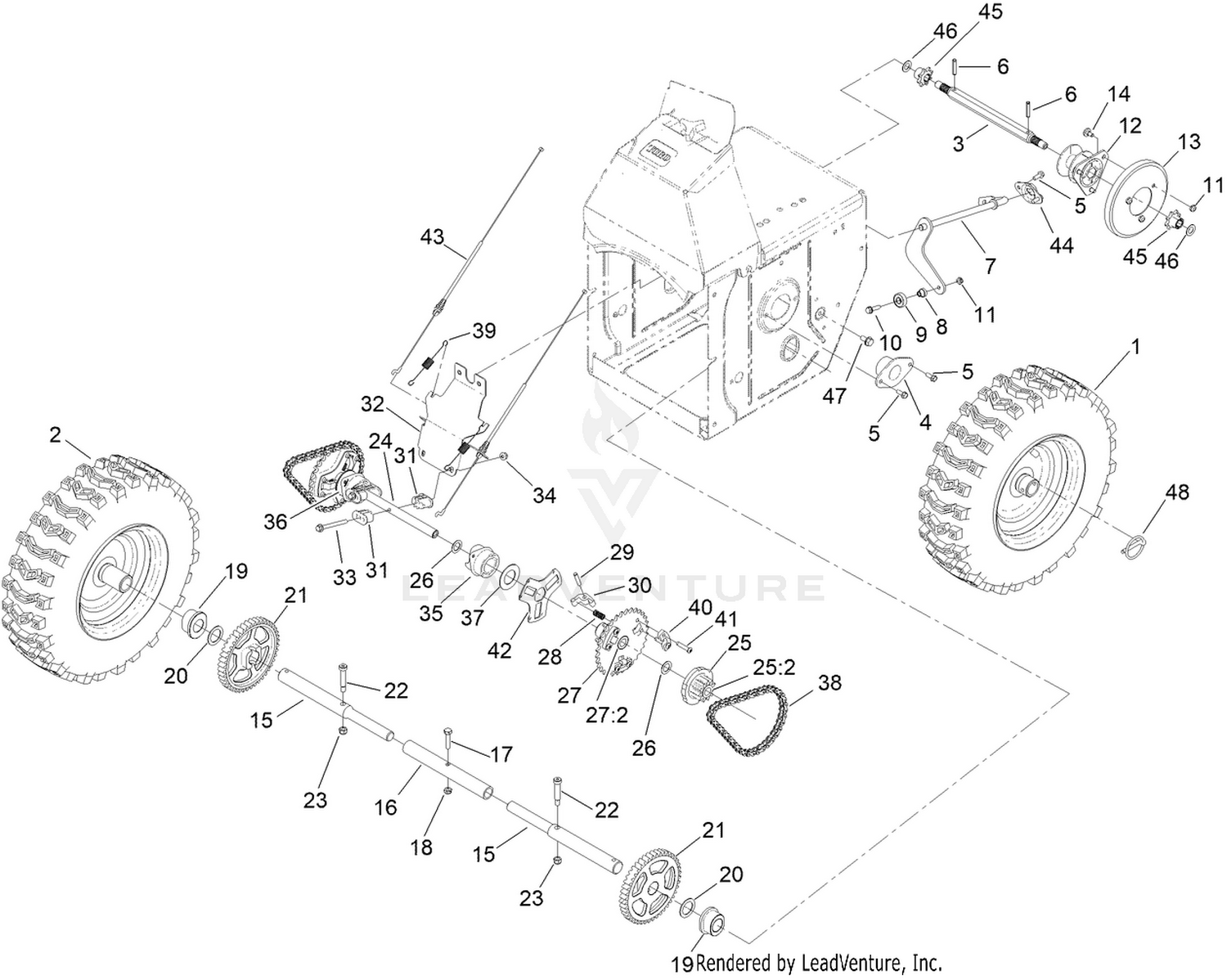

| Ref | Part Number | Description |
|---|
| 1 |
136-6668 |
LH WHEEL AND TIRE ASM Price: $78.99 |
| 2 |
136-6667 |
RH WHEEL AND TIRE ASM Price: $78.99 |
| 3 |
125-1135 |
SHAFT-HEX Price: $43.99 |
| 4 |
108-7319 |
RETAINER-BEARING Price: $29.99 |
| 5 |
32144-85 |
SCREW-HWH Price: $1.59 |
| 6 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 7 |
137-6162 |
SHIFT ROD Price: $18.99 |
| 8 |
119-7684 |
SPACER-PLATE, SHIFT Price: $1.49 |
| 9 |
121-6835 |
BEARING-BALL Price: $7.79 |
| 10 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 11 |
137-3091 |
NUT-HEX Price: $0.39 |
| 12 |
119-7630 |
TRUNNION Price: $12.99 |
| 13 |
119-1567 |
WHEEL-FRICTION Price: $44.99 |
| 14 |
137-6246 |
SCREW-SHOULDER Price: $0.69 |
| 15 |
136-6640 |
AXLE Price: $35.99 |
| 16 |
106-7259 |
TUBE-AXLE Price: $89.99 |
| 17 |
137-3051 |
SCREW-HH Price: $5.89 |
| 18 |
137-3089 |
NUT-HEX Price: $0.39 |
| 19 |
136-6641 |
BUSHING-AXLE Price: $6.29 |
| 20 |
138-0725 |
WASHER-THRUST Price: $0.89 |
| 21 |
136-6642 |
GEAR-AXLE Price: $31.99 |
| 22 |
138-0720 |
BOLT-SHOULDER, HSH Price: $3.09 |
| 23 |
137-3093 |
NUT-HEX Price: $0.59 |
| 24 |
107-8883 |
SHAFT-INTERMEDIATE Price: $59.99 |
| 26 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 28 |
107-8885 |
SPRING-COMPRESSION Price: $2.39 |
| 29 |
107-8899 |
PIN-DOWEL Price: $1.79 |
| 30 |
107-8879 |
PAWL-CLUTCH Price: $7.29 |
| 31 |
107-8889 |
GUIDE-COLLAR Price: $4.89 |
| 32 |
136-6648-03 |
BRACE-SHIFT, COLLAR Price: $10.99 |
| 33 |
138-3653 |
SCREW-HHF Price: $0.99 |
| 34 |
119-4040 |
NUT-FLANGE, NI Price: $0.52 |
| 35 |
107-8887 |
COLLAR-SHIFT, LH Price: $10.99 |
| 36 |
107-8888 |
COLLAR-SHIFT, RH Price: $10.99 |
| 37 |
107-8891 |
WASHER-THRUST Price: $4.79 |
| 38 |
108-0016 |
CHAIN-ROLLER Price: $57.99 |
| 39 |
107-8893 |
SPRING-EXTENSION Price: $7.29 |
| 40 |
107-8880 |
SUPPORT-PAWL Price: $5.99 |
| 41 |
137-3010 |
SCREW-BHCS Price: $1.39 |
| 42 |
136-7318 |
RETAINER-PAWL, PIN Price: $6.09 |
| 43 |
107-8896 |
CABLE-CLUTCH Price: $27.99 |
| 44 |
136-6647-03 |
RETAINER-ROD, SHIFT Price: $3.29 |
| 45 |
125-1134 |
GEAR-PINION, 8 TOOTH Price: $6.09 |
| 46 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 47 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
