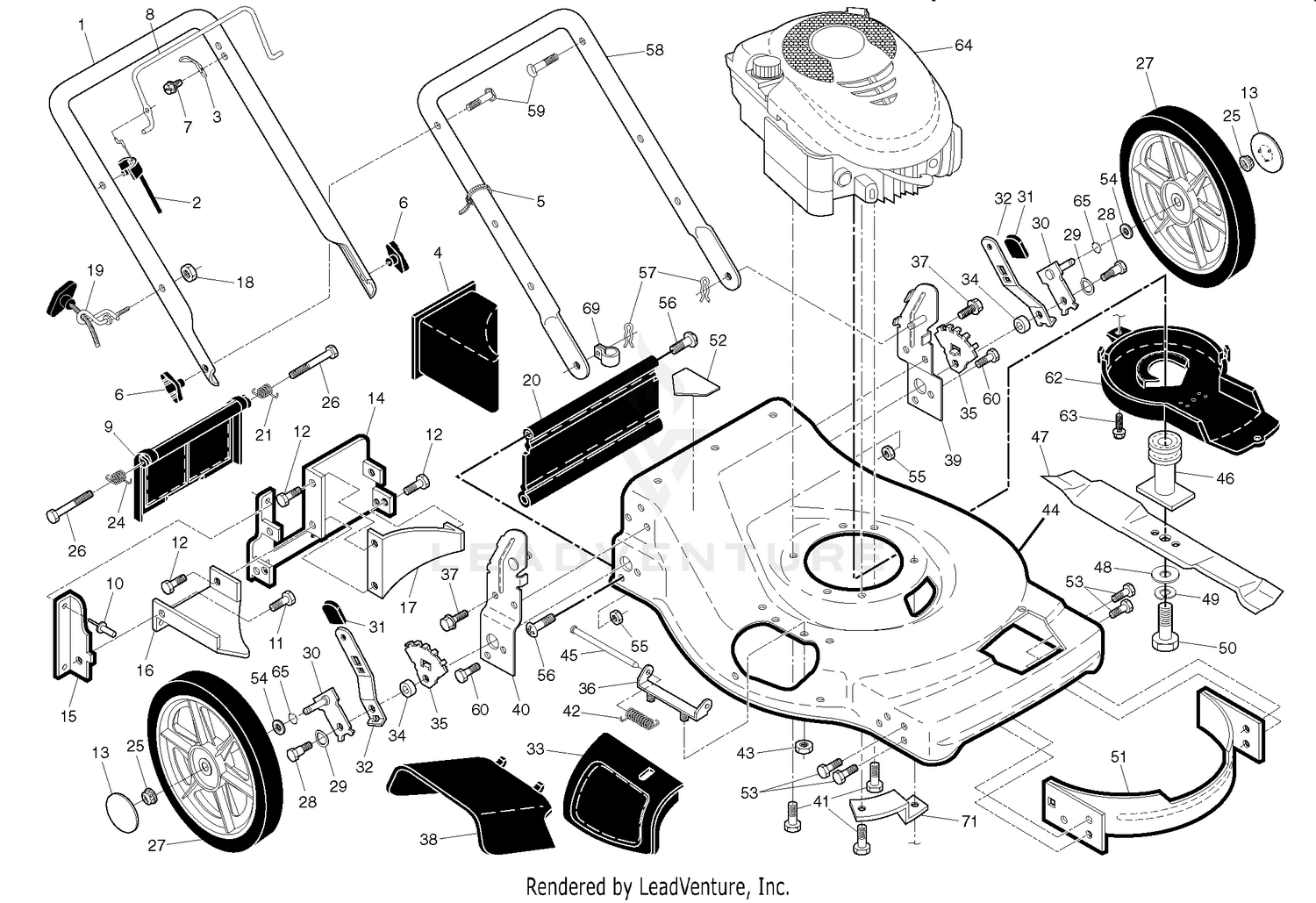

| Ref | Part Number | Description |
|---|
| 1 |
194203X479 |
Upper Handle Price: Call Us |
| 1 |
94-3645 |
KEY Price: $13.07 |
| 2 |
183567 |
Cable, Operator Presence Price: Call Us |
| 2 |
94-6359 |
SHAFT-DRIVE Price: $675.42 |
| 3 |
104-4046 |
BEARING-CUP Price: $40.66 |
| 3 |
850733X004 |
Bracket, Upstop Price: Call Us |
| 4 |
166649 |
Mulcher Plug Price: Call Us |
| 4 |
98-4640 |
SCREW-CAP Price: $7.46 |
| 5 |
664-26 |
Wire Tie Price: Call Us |
| 5 |
98-4644 |
PLATE-COVER Price: $310.82 |
| 6 |
105-9762 |
WASHER Price: $5.90 |
| 6 |
189713X428 |
Handle Knob Price: Call Us |
| 7 |
100-3182 |
SHIM KIT Price: $404.35 |
| 7 |
750634 |
Screw Price: Call Us |
| 8 |
194199X421 |
Control Bar Price: Call Us |
| 8 |
98-4639 |
BEARING-CONE Price: $74.90 |
| 9 |
401813X428 |
Rear Door Assembly Price: Call Us |
| 9 |
94-3646 |
KEY Price: $6.56 |
| 10 |
100-3175 |
CAMPLATE Price: $1,100.72 |
| 10 |
128415 |
Pop Rivet Price: Call Us |
| 11 |
150050 |
Screw, Self-Tapping #10-24 x 5/8 Price: Call Us |
| 11 |
76-6070 |
ROTATING KIT Price: $1,788.80 |
| 12 |
54583 |
Screw, Hex Hex Head, Sems 1/4-20 x 1/2 Price: Call Us |
| 13 |
100-3180 |
PLATE-VALVE Price: $373.14 |
| 13 |
407794X421 |
Hubcap Price: Call Us |
| 14 |
195622X479 |
Back Plate Price: Call Us |
| 15 |
410545X479 |
Side Baffle Price: Call Us |
| 15 |
76-6150 |
PIN-DOWEL Price: $1.42 |
| 16 |
105-3813 |
ENDCOVER SUB ASM Price: $1,421.33 |
| 16 |
176655X479 |
Discharge Baffle Price: Call Us |
| 17 |
140661X479 |
Rear Baffle Price: Call Us |
| 18 |
132004 |
Keps Locknut 1/4-20 Price: Call Us |
| 19 |
194788 |
Rope Guide Price: Call Us |
| 20 |
105-3812 |
VALVE-CHECK Price: $570.10 |
| 20 |
413160 |
Rear Skirt Price: Call Us |
| 21 |
105-3811 |
VALVE-BYPASS Price: $170.14 |
| 21 |
405421 |
Spring, Rear Door, LH Price: Call Us |
| 22 |
76-6170 |
CAPSCREW Price: $2.65 |
| 23 |
76-6160 |
CAPSCREW Price: $3.95 |
| 24 |
405423 |
Spring, Rear Door, RH Price: Call Us |
| 25 |
409148 |
Nut, Hex, Flanged Price: Call Us |
| 25 |
98-4645 |
PLATE-COVER Price: $645.16 |
| 26 |
184193 |
Bolt, Rear Door Price: Call Us |
| 27 |
408852X421 |
Wheel & Tire Assembly, Rear Price: Call Us |
| 28 |
142748 |
Bolt, Shoulder 3/8-16 x 1 Price: Call Us |
| 29 |
100-3176 |
HOUSING ASM Price: $1,172.62 |
| 29 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 30 |
401180X004 |
Axle Arm Assembly Price: Call Us |
| 31 |
252-71 |
WASHER-THRUST Price: $14.39 |
| 31 |
701037X421 |
Selector Knob Price: Call Us |
| 32 |
252-66 |
BEARING-THRUST Price: $10.61 |
| 32 |
401626X004 |
Selector Spring Price: Call Us |
| 33 |
189917X428 |
Mulcher Door Price: Call Us |
| 33 |
33-3720 |
WASHER Price: $11.87 |
| 34 |
401629 |
Spacer Price: Call Us |
| 35 |
700325X005 |
Wheel Adjusting Bracket Price: Call Us |
| 36 |
175735 |
Hinge Bracket Assembly Price: Call Us |
| 37 |
150078 |
Screw, Sems, Thread Cutting 5/16-18 x 3/4 Price: Call Us |
| 38 |
402574X428 |
Discharge Deflector Price: Call Us |
| 39 |
195915X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 39 |
98-4635 |
INSERT-PLATE, CAM Price: $167.59 |
| 40 |
195914X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 41 |
150406 |
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8 Price: Call Us |
| 42 |
193000 |
Spring, Torsion Price: Call Us |
| 42 |
74-9040 |
COUPLER Price: $73.91 |
| 43 |
120-5754 |
SEAL KIT This part replaces 105-3844. Price: $229.41 |
| 43 |
73800400 |
Nut, Hex, Nylock Price: Call Us |
| 45 |
175650 |
Rod, Hinge Price: Call Us |
| 46 |
189179 |
Blade Adapter / Pulley Price: Call Us |
| 47 |
406713 |
Blade, 22" Price: Call Us |
| 48 |
851074 |
Washer, Hardened Price: Call Us |
| 49 |
850263 |
Washer, Helical Price: Call Us |
| 50 |
851084 |
Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8 Price: Call Us |
| 52 |
404763 |
Danger Decal Price: Call Us |
| 53 |
17600406 |
Screw, Serrated, TT 1/4-20 Price: Call Us |
| 54 |
88348 |
Washer, Flat Price: Call Us |
| 55 |
751592 |
Nut, Hex 3/8-16 Price: Call Us |
| 56 |
88652 |
Hinge Screw 1/4-20 x 1-1/4 Price: Call Us |
| 57 |
51793 |
Hairpin Cotter Price: Call Us |
| 58 |
151590X479 |
Lower Handle Price: Call Us |
| 59 |
191574 |
Handle Bolt Price: Call Us |
| 60 |
74760612 |
Bolt, Hex Head 3/8-16 x 3/4 Price: Call Us |
| 62 |
405843 |
Debris Shield Price: Call Us |
| 63 |
192325 |
Screw, Debris Shield Price: Call Us |
| 65 |
197480 |
O-Ring Price: Call Us |
| 69 |
197991 |
Clip, Cable Price: Call Us |
| 71 |
188839X004 |
Mounting Bracket, Debris Shield Price: Call Us |
| 71 |
193733 |
Operator's Manual, English Price: Call Us |
| 71 |
193736 |
Operator's Manual, French Price: Call Us |
