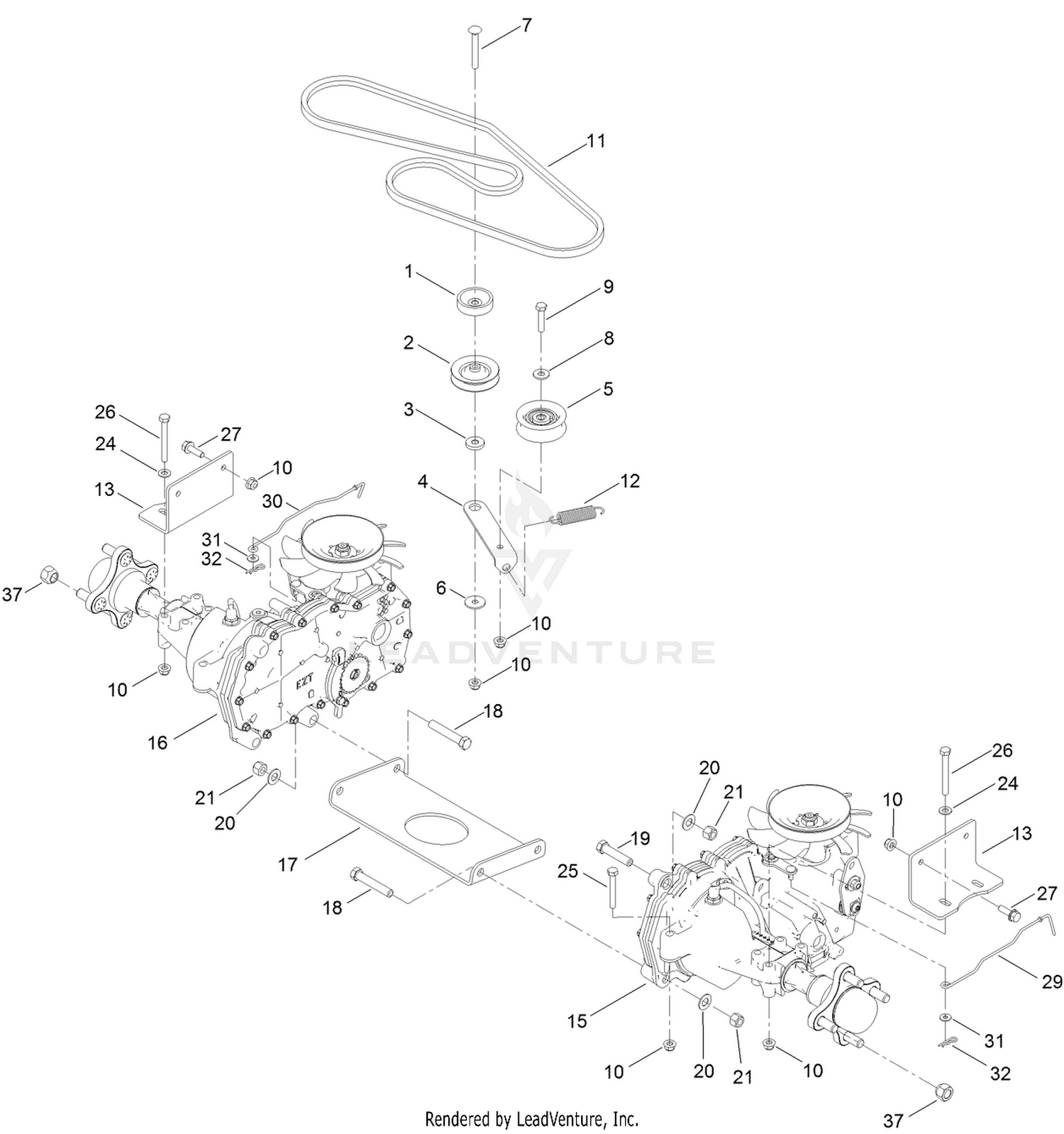

| Ref | Part Number | Description |
|---|
| 1 |
119-3353 |
SPACER Price: $7.02 |
| 2 |
119-8822 |
PULLEY-IDLER Price: $17.50 |
| 3 |
119-3327 |
SPACER-ARM, IDLER Price: $1.27 |
| 4 |
138-7276 |
ARM-IDLER Price: $3.74 |
| 5 |
138-7597 |
PULLEY-IDLER, FLAT Price: $10.22 |
| 6 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 7 |
3230-8 |
SCREW-CARR Price: $1.00 |
| 8 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 9 |
322-7 |
SCREW-HH Price: $0.89 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
130-6976 |
V-BELT Price: $27.35 |
| 12 |
137-7040 |
SPRING-RETURN, PEDAL Price: $4.89 |
| 13 |
117-7264-03 |
MOUNT-HYDRO Price: $6.41 |
| 15 |
131-3640 |
LH HYDRO TRANSMISSION ASM Price: $876.54 |
| 16 |
131-3641 |
RH HYDRO TRANSMISSION ASM Price: $876.54 |
| 17 |
119-3342-03 |
PLATE-CROSS, HYDRO Price: $18.48 |
| 18 |
324-10 |
SCREW-HH Price: $1.97 |
| 19 |
324-8 |
SCREW-HH Price: $4.29 |
| 20 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 21 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 24 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 25 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 26 |
322-13 |
SCREW-HH Price: $2.73 |
| 27 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 29 |
138-7243 |
ROD-BYPASS, LH Price: $5.32 |
| 30 |
138-7245 |
ROD-BYPASS, RH Price: $5.32 |
| 31 |
119-8952 |
WASHER Price: $0.77 |
| 32 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
