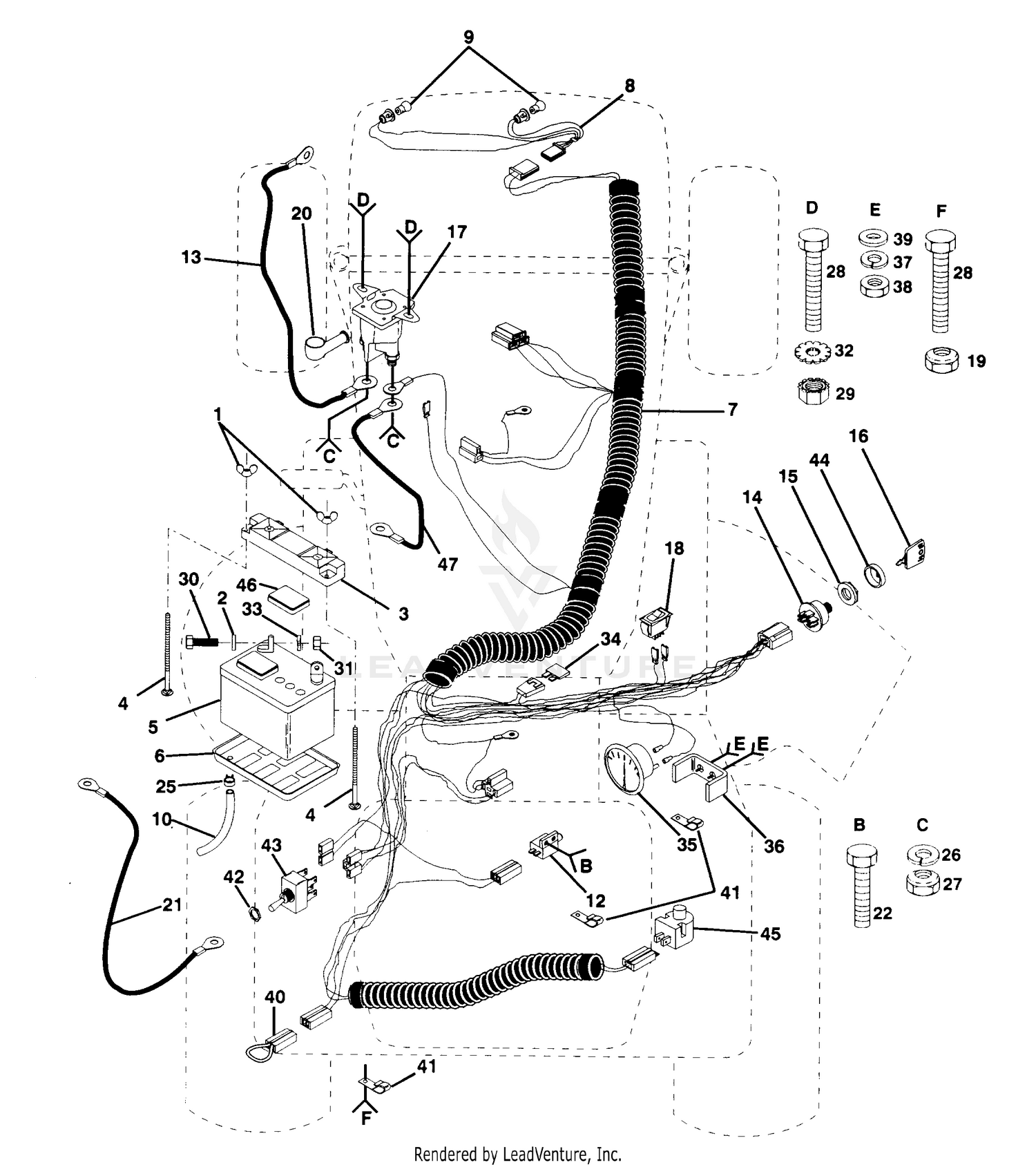

| Ref | Part Number | Description |
|---|
| 1 |
114-5422 |
ROLLER-SHOULDER, PLASTIC Price: $525.86 |
| 1 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 2 |
114-5403 |
SHAFT-ROLLER, FRONT Price: $82.00 |
| 2 |
819091016 |
Washer 9/32 x 5/8 x 16 Gauge (AYP part number) Price: $2.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
532150109 |
BATTERY HOLDDOWN This part replaces 532102476. Price: $4.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
872240460 |
Bolt, Carriage 1/4-20 x 7-1/2 (AYP part number) Price: $3.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121265. Price: $139.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $3.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
532135150 |
Harness, Ignition Price: $3.33 |
| 8 |
532136850 |
Harness Asm Light W/4152j (AYP part number) This part replaces 532127441. Price: $15.99 |
| 9 |
532004152 |
LIGHTBULB This part replaces 532124893. Price: $2.99 |
| 10 |
532007697 |
Tube, Tray, Battery (AYP part number) This part replaces 532124924. Price: $6.23 |
| 12 |
532104445 |
Switch, Interlock, Clutch (AYP part number) Price: $9.99 |
| 13 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $6.99 |
| 14 |
532158913 |
IGNITION SWITCH KIT This part replaces 532102972. Price: $37.99 |
| 15 |
532124211 |
Nut, Ignition (AYP part number) This part replaces 532109788. Price: $3.99 |
| 16 |
532122147 |
Key, Molded (AYP part number) Price: $4.99 |
| 17 |
532109081 |
Solenoid (AYP part number) Price: $22.99 |
| 18 |
532110712 |
Switch, Light (AYP part number) Price: $4.99 |
| 19 |
873680400 |
Nut, Hex 1/4-20 (AYP part number) Price: $2.99 |
| 20 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 21 |
532124773 |
Cable, Battery (Battery to Ground) (AYP part number) Price: $4.99 |
| 22 |
817021008 |
Screw, Tapping, Hex Head #10-24 UNC x 1/2 TyF (AYP part number) Price: $1.99 |
| 25 |
532109596 |
Clamp, Hose (AYP part number) Price: $2.99 |
| 26 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 27 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 28 |
539990071 |
HCS 1/4-20. This part replaces 874780408. Price: $1.99 |
| 29 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 30 |
874760412 |
Bolt, Hex 1/4-20 x 3/4 (AYP part number) Price: $3.99 |
| 31 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 32 |
810040400 |
LOCKWASHER This part replaces 811050400. Price: $3.99 |
| 33 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 34 |
532108824 |
Fuse (AYP part number) Price: $3.99 |
| 35 |
532124900 |
Ammeter (AYP part number) Price: $27.99 |
| 36 |
532131708 |
Bracket, Ammeter This part replaces 532124901. Price: $2.99 |
| 37 |
810071000 |
LOCKWASHER This part replaces 810101000. Price: $2.99 |
| 38 |
873911000 |
Nut (AYP part number) Price: $0.99 |
| 39 |
819070816 |
Washer 7/32 x 1/2 x 16 Ga. (AYP part number) This part replaces 819070818. Price: $5.99 |
| 40 |
532102501 |
Loop, Wire (AYP part number) Price: $9.49 |
| 41 |
532124995 |
Clip, Insulated (AYP part number) Price: $2.38 |
| 42 |
532004022 |
Hex Nut (AYP part number) This part replaces 532124932. Price: $2.99 |
| 43 |
532004021 |
P.T.O. Switch (AYP part number) This part replaces 532126016. Price: $18.99 |
| 44 |
584446901 |
KIT.IGN.BOOT/NUT This part replaces 532109787. Price: $4.99 |
| 45 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 46 |
532121264 |
Cap, Battery (AYP part number) Price: $10.91 |
