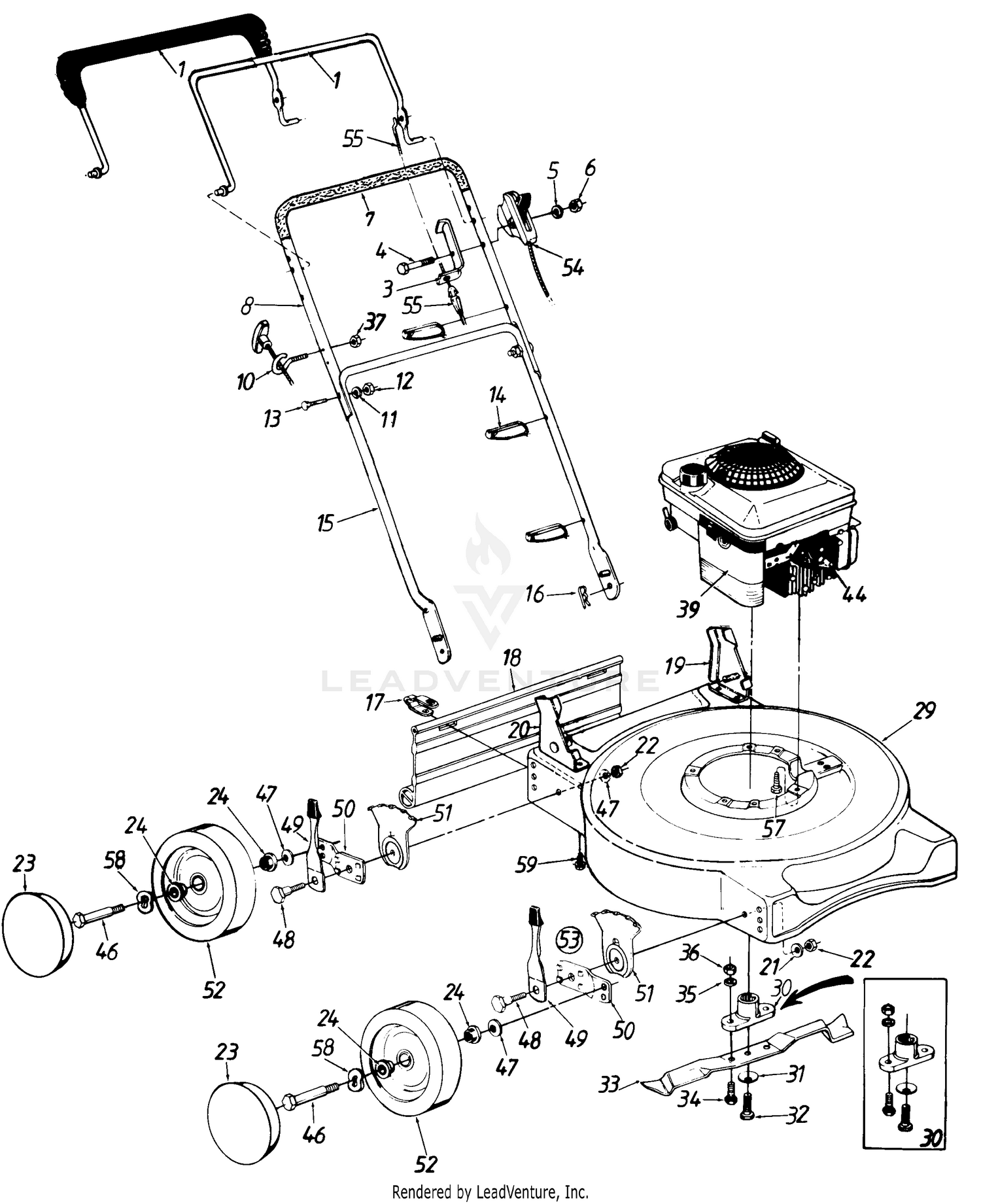

| Ref | Part Number | Description |
|---|
| 3 |
17174 |
BRACKET-CA Not Available Price: |
| 4 |
710-1216 |
HEX SCREW 1/4-20 x 1.875 Not Available Price: |
| 5 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 6 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 8 |
749-0756A |
UPPER HANDLE Not Available Price: |
| 10 |
710-1205 |
Rope Guide Bolt Price: $3.53 |
| 11 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 12 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 13 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 14 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 15 |
749-0928A-0637 |
Lower Handle This part replaces 749-0372B. Price: $29.67 |
| 16 |
714-0104 |
Hairpin Cotter Price: $3.90 |
| 17 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 18 |
731-0872B |
Rear Flap Not Available This part replaces 731-0872. Price: |
| 19 |
12935A |
BRACKET AS Not Available Price: |
| 20 |
12936A |
BRACKET ASSY-HDLE Not Available Price: |
| 21 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 22 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 24 |
N/A |
Wheel Bearings |
| 30 |
753-0485 |
SPLINED BLADE ADAPTER KIT Not Available Price: |
| 31 |
936-0453 |
BELL WASHER Not Available This part replaces 736-0453. Price: |
| 32 |
710-0757 |
Hex Bolt 7/16-20 x 1.5" Lg. Price: $8.83 |
| 34 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 35 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 36 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 37 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 39 |
N/A |
Engine |
| 44 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 46 |
738-0102 |
Axle Bolt Price: $9.22 |
| 47 |
736-0105 |
Bell-Wash. .400" I.D. x .88" Price: $3.96 |
| 48 |
738-0507B |
Shld. Bolt .50" Dia. x .357" Price: $3.86 |
| 49 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 50 |
15262B |
Pivot Bar Price: $13.59 |
| 51 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 52 |
N/A |
Wheel Ass'y. Comp. |
| 53 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 57 |
710-0654A |
Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg. Price: $3.75 |
| 58 |
736-0232 |
Wave Washer .53" I.D. Price: $4.02 |
