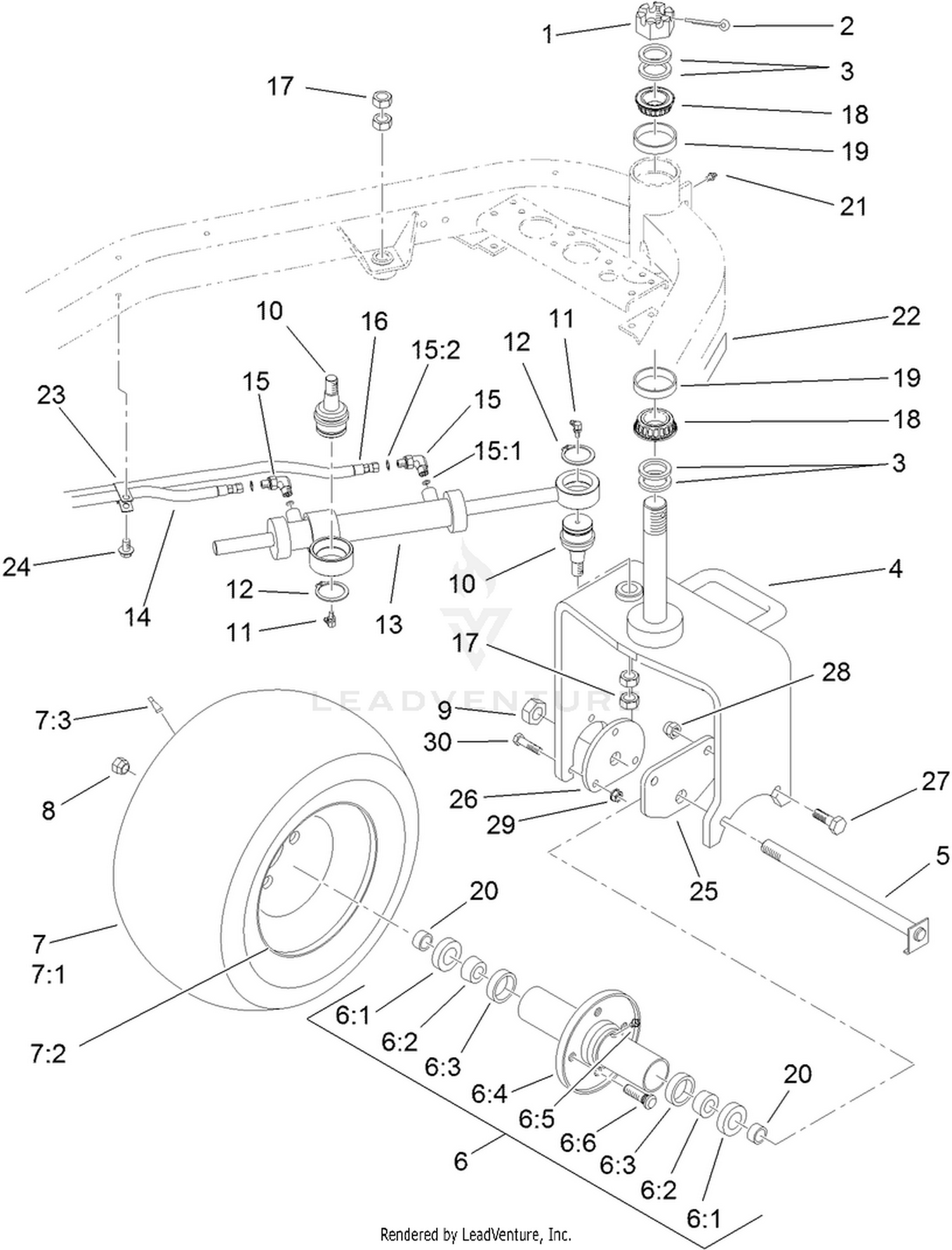

| Ref | Part Number | Description |
|---|
| 1 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 2 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 3 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 4 |
112-9174-01 |
FORK-CASTER Price: $532.63 |
| 5 |
70-8370 |
BOLT Price: $73.52 |
| 6 |
72-9710 |
HUB-TIRE Price: $288.21 |
| 7 |
114-4665 |
TIRE ASM Price: $226.02 |
| 8 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 9 |
3296-67 |
NUT-LOCK, NI Price: $5.05 |
| 10 |
106-6774 |
JOINT-BALL Price: $79.04 |
| 11 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 12 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 13 |
132-3778 |
CYLINDER-STEERING This part replaces 112-0298. Price: $786.47 |
| 14 |
131-2001 |
HOSE ASM Price: $139.51 |
| 15 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 16 |
131-2000 |
HOSE ASM Price: $148.71 |
| 17 |
3220-6 |
NUT-JAM Price: $1.25 |
| 18 |
115-9472 |
BEARING-CONE AND SEAL Price: $22.04 |
| 19 |
115-9471 |
BEARING-CUP Price: $6.46 |
| 20 |
70-8490 |
SPACER-SPINDLE, REAR Price: $24.99 |
| 21 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 22 |
99-1493 |
DECAL Price: $34.25 |
| 23 |
2412-137 |
CLAMP-R, DOUBLE Price: $5.08 |
| 24 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 25 |
99-1485-01 |
PLATE-ADAPTER, MOTOR Price: $41.54 |
| 26 |
99-1486-01 |
PLATE-ADAPTER Price: $35.80 |
| 27 |
325-6 |
SCREW-HH Price: $1.42 |
| 28 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 29 |
104-8301 |
NUT-HF, NI Price: $1.09 |
