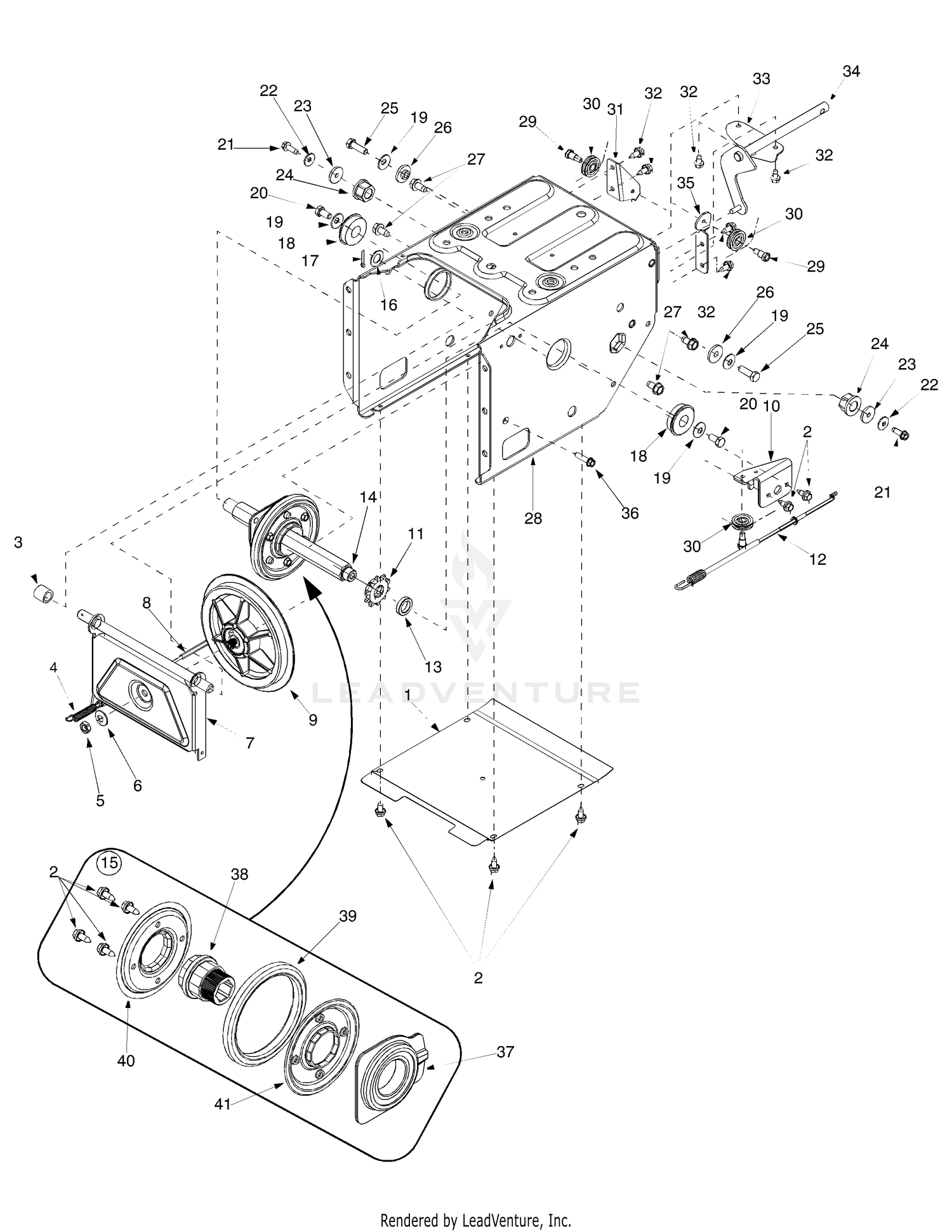

| Ref | Part Number | Description |
|---|
| 1 |
784-5648A-0637 |
TRACK FRAME COVER (POWDER BLACK) Not Available This part replaces 784-5648. Price: |
| 2 |
710-1652 |
Tap Screw 1/4-20 x.625 Price: $3.86 |
| 3 |
748-0190 |
Spacer.508 ID x.75 OD Price: $5.48 |
| 4 |
932-0264 |
Extension Spring This part replaces 732-0264. Price: $4.40 |
| 5 |
712-0711 |
Jam Nut 3/8-24 Price: $3.90 |
| 6 |
736-0105 |
Bell Washer.401 ID x.87 OD Price: $3.96 |
| 7 |
984-0021-0637 |
BRACKET ASSEMBLY Not Available This part replaces 684-0021. Price: |
| 8 |
946-0898 |
Drive Clutch Cable This part replaces 746-0898B. Price: $24.46 |
| 9 |
956-0012A |
Friction Wheel Disc Assembly Not Available This part replaces 656-0012A. Price: |
| 10 |
784-5689A-0637 |
GUIDE BRACKET Not Available This part replaces 784-5689A. Price: |
| 12 |
946-0897 |
Auger Cable This part replaces 746-0897. Price: $23.09 |
| 13 |
950-0997 |
Spacer, .675 x 1.0 x .23 This part replaces 750-0997. Price: $6.07 |
| 14 |
711-1042 |
DRIVE SHAFT Not Available Price: |
| 15 |
984-0042C |
Friction Wheel Hub This part replaces 684-0042C. Price: $121.65 |
| 16 |
736-0160 |
Flat Washer.536 ID x.93 OD Price: $3.90 |
| 17 |
714-0474 |
Cotter Pin Price: $4.08 |
| 18 |
941-0563 |
Ball Bearing, 17 x 40 x 12 This part replaces 741-0563. Price: $33.84 |
| 19 |
736-0242 |
Bell Washer.34 ID x.872 OD Price: $3.75 |
| 20 |
710-0538 |
Hex Cap Screw 5/16-18 x.625 Price: $4.02 |
| 21 |
710-0875 |
Tap Screw 1/4-20 x.75 Price: $3.64 |
| 22 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 23 |
736-0176 |
Flat Washer 1/4 ID x.93 OD Price: $3.95 |
| 24 |
741-1111 |
Hex Flange Bearing Price: $8.98 |
| 25 |
710-0643 |
Hex Cap Screw 5/16-18 x 1" Price: $5.99 |
| 26 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 27 |
710-0604A |
Tap Screw 5/16-12 x.6250 Price: $3.96 |
| 28 |
984-0031 |
FRAME ASSEMBLY Not Available This part replaces 684-0031. Price: |
| 29 |
738-0924A |
Shoulder Screw, 1/4-28, .340 x .355 This part replaces 738-0924. Price: $5.94 |
| 30 |
756-0625 |
Cable Roller Price: $8.52 |
| 31 |
784-5688 |
DRIVE GUIDE BRACKET Not Available Price: |
| 32 |
710-0599 |
Tap Screw 1/4-20 x.5 Price: $3.86 |
| 33 |
784-5590 |
Shift Frame Bracket Price: $10.65 |
| 34 |
684-0014B-0637 |
SHAFT ASSEMBLY (POWDER BLACK) Not Available This part replaces 684-0014B. Price: |
| 35 |
784-5687A |
AUGER GUIDE BRACKET Not Available Price: |
| 36 |
710-0809 |
Tap Screw 1/4-20 x 1.250 Price: $6.37 |
| 37 |
618-0063A |
Friction Wheel Bearing Price: $80.89 |
| 38 |
984-0042C |
Friction Wheel Hub This part replaces 718-0301A. Price: $121.65 |
| 39 |
935-0243B |
Friction Wheel Rubber This part replaces 735-0243B. Price: $14.83 |
| 40 |
790-00011 |
FRICTION PLATE Not Available Price: |
