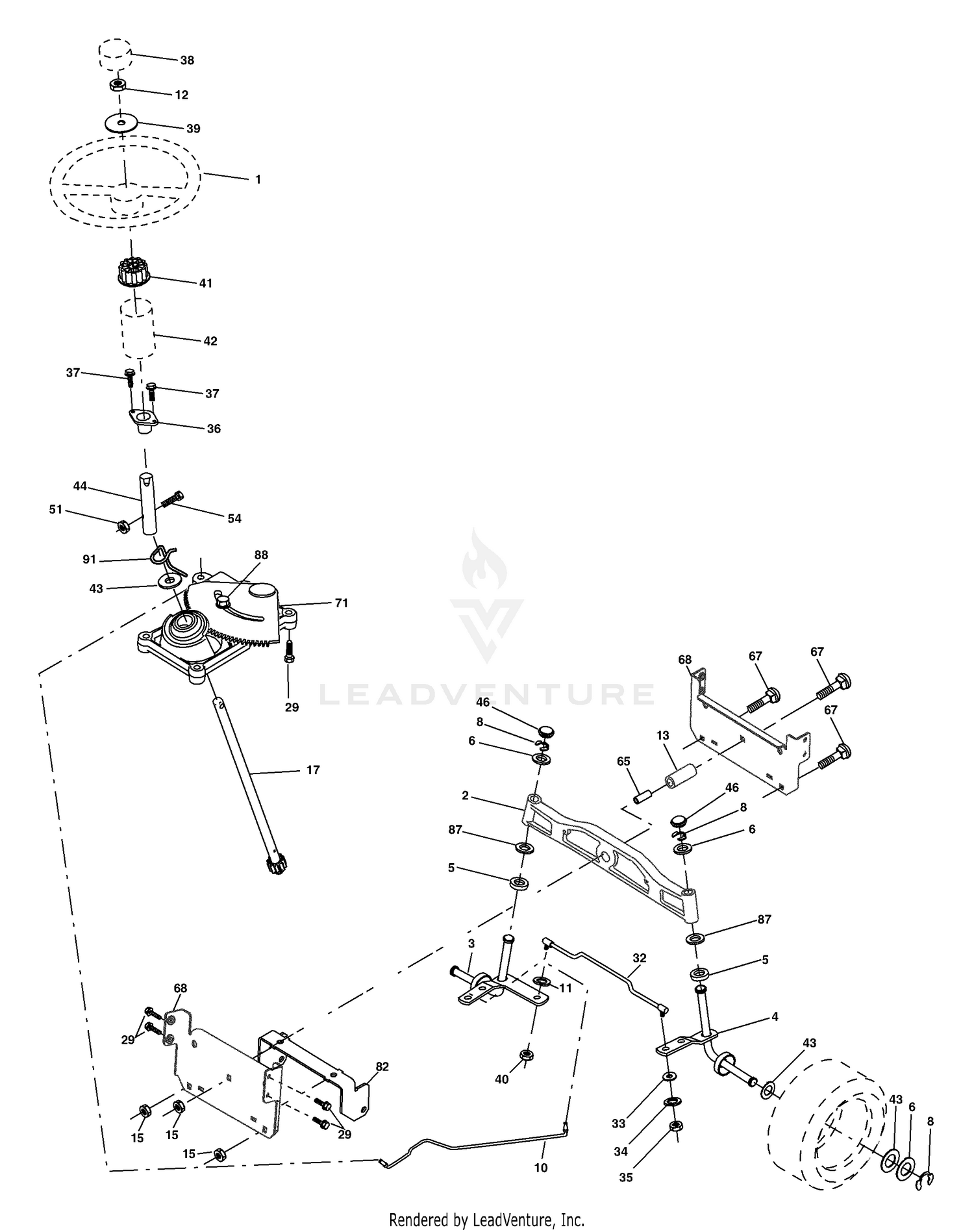

| Ref | Part Number | Description |
|---|
| 1 |
106-4620 |
PIVOT MOUNT ASM Price: $94.64 |
| 1 |
180656 |
Wheel Steering Price: Call Us |
| 2 |
172393 |
Axle Asm Front Price: Call Us |
| 3 |
169840 |
Spindle Asm Lh Price: Call Us |
| 3 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 4 |
169839 |
Spindle Asm Rh Price: Call Us |
| 4 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 5 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 X 1 5/8 X 16ga Price: Call Us |
| 6 |
132-3831 |
LOCK ASM This part replaces 105-5425. Price: $80.77 |
| 7 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
323-6 |
SCREW-HH Price: $0.66 |
| 9 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
106-4621 |
SUPPORT ASM Price: $74.48 |
| 10 |
175121 |
Link Drag Extended Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Unf Price: Call Us |
| 13 |
105-5430 |
ROD-CONNECTING Price: $90.44 |
| 13 |
136518 |
Spacer Bearing Axle Front Price: Call Us |
| 14 |
32120-18 |
E-RING Price: $0.97 |
| 15 |
145212 |
Hex Flange Lock Price: Call Us |
| 15 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 16 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 17 |
180641 |
Shaft Asm Strg Price: Call Us |
| 17 |
9266934 |
SCREW Price: $7.89 |
| 19 |
93-2279 |
CLAMP-CABLE Price: $7.12 |
| 20 |
322-1 |
SCREW-HH Price: $0.22 |
| 21 |
105-5429 |
SPACER-PEDAL, TRACTION Price: $33.79 |
| 22 |
105-5445 |
CABLE-TRACTION Price: $126.99 |
| 24 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 25 |
105-5421-01 |
PEDAL-TRACTION Price: $139.74 |
| 26 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 27 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 28 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 29 |
17060612 |
Screw 3/8-16x3/4 Price: Call Us |
| 29 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 30 |
32128-20 |
NUT-HF Price: $0.99 |
| 31 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 32 |
17-9426 |
SCREW-HANDLE Price: $3.49 |
| 32 |
171888 |
Rod Tie Price: Call Us |
| 33 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
| 34 |
10040500 |
Washer lock 5/16 Price: Call Us |
| 34 |
105-5444 |
CABLE-LOCK, NEUTRAL Price: $109.43 |
| 35 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 35 |
73540500 |
Nut Crownlock 5/16-24 Price: Call Us |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 37 |
105-8318 |
WASHER-FLAT Price: $1.97 |
| 37 |
152927 |
Screw TT #10-32 x 5 x 3/8 Flange Price: Call Us |
| 38 |
180657 |
Insert Cap Strg Price: Call Us |
| 38 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 39 |
19182411 |
Washer 9/16 ID x 1-1/2 OD 11 Gr Price: Call Us |
| 39 |
80-0650 |
SPACER-TUBULAR Price: $6.99 |
| 40 |
321-10 |
SCREW-HH Price: $1.29 |
| 40 |
7810H |
Locknut Center Price: Call Us |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Dash Steering Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
180640 |
Extension Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
3219-14 |
NUT-HEX Price: $0.25 |
| 48 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Rdhd Sq 3/8-16 Unc x 2-3/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 71 |
175146 |
Steering Asm Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
