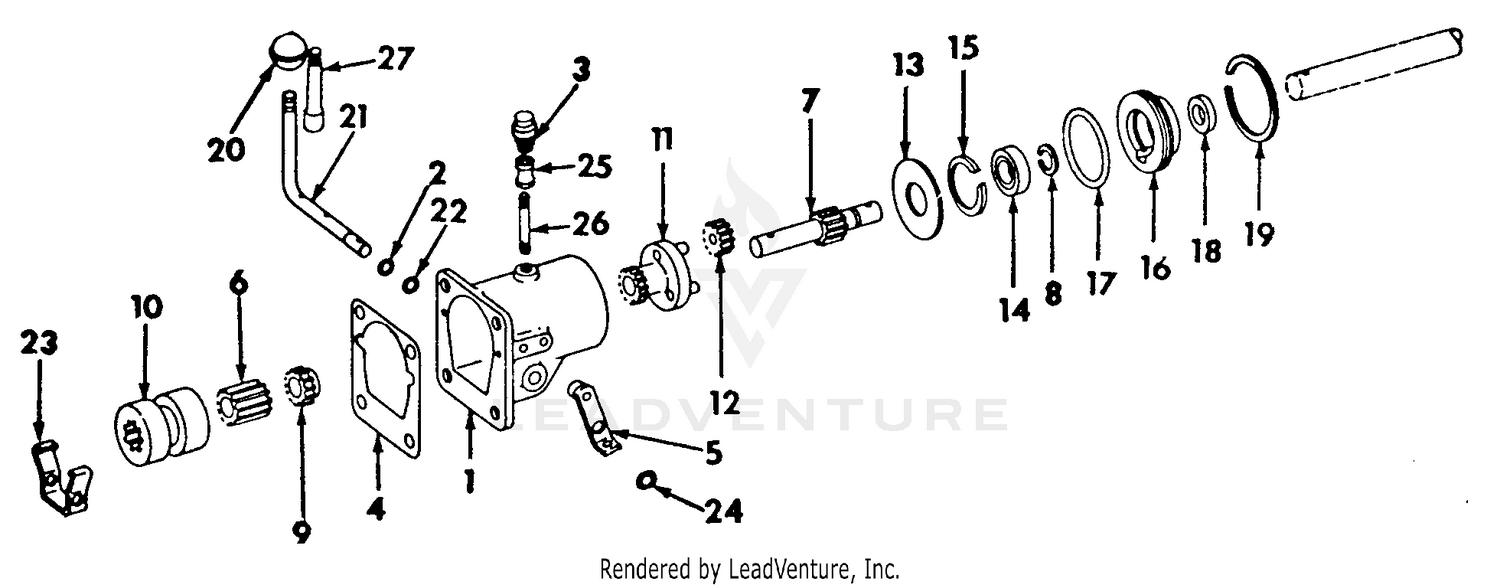

| Ref | Part Number | Description |
|---|
| 1 |
25-2650 |
PLUG-VALVE, CHECK Price: $89.01 |
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX Price: $159.99 |
| 1 |
719-3025 |
Housing Assy, Creeper Drive Price: Call Us |
| 2 |
237-86 |
O-RING Price: $5.47 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
25-2640 |
SPRING-VALVE Price: $4.22 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 3 |
723-3021 |
Breather, Housing This part replaces IH-61991-R1. Price: $20.30 |
| 4 |
25-2490 |
BALL Price: $14.47 |
| 4 |
721-3009 |
CREEPER GASKET Not Available Price: |
| 5 |
703-0410 |
LEVER ASSEMBLY-POPPET Not Available Price: |
| 5 |
75-0170 |
PLUG-THREAD, STRAIGHT This part replaces 92-8776. Price: $18.20 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
703-1061 |
COUPLING ASSEMBLY-DRIVEN Not Available Price: |
| 6 |
92-8777 |
O-RING Price: $3.02 |
| 7 |
112-7655 |
KIT-SERVICE This part replaces 95-5808. Price: $496.31 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
711-3074A |
SHAFT-DR INPUT Not Available Price: |
| 8 |
25-2610 |
SPRING-VALVE This part replaces 95-5815. Price: $29.42 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
916-0115 |
SNAP RING FOR .625 DIA SHAFT Not Available This part replaces 716-0115. Price: |
| 9 |
717-3019 |
COUPLING-DIRECTOR Not Available Price: |
| 9 |
95-5814 |
VALVE-ACCELERATION Price: $268.12 |
| 10 |
237-79 |
O-RING Price: $5.46 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 10 |
717-3020 |
COLLAR-SHIFTER Not Available Price: |
| 11 |
136-3219 |
PLUG ASM This part replaces 95-5816. Price: $21.54 |
| 11 |
759-3124 |
CARRIER-PLANET Not Available Price: |
| 12 |
237-30 |
O-RING Price: $2.50 |
| 12 |
717-3022 |
GEAR-PLANET Not Available Price: |
| 13 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 13 |
736-3049 |
Washer, Planet Gear Thrust Price: Call Us |
| 14 |
25-2400 |
GASKET Price: $19.26 |
| 14 |
741-0145 |
GROOVE BALL BEARING This part replaces IH-462848-R91. Price: $37.42 |
| 15 |
716-04098 |
INTERNAL SNAP RING Not Available This part replaces 716-3007. Price: |
| 15 |
95-5811 |
PLATE-VALVE Price: $873.34 |
| 16 |
48-1800 |
CYLINDER BLOCK KIT This part replaces 25-2600. Price: $1,923.22 |
| 16 |
719-3026 |
BEARING-CAGE Not Available Price: |
| 18 |
921-3011 |
OIL SEAL This part replaces 721-3011. Price: $18.55 |
| 19 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 19 |
716-3008 |
SNAP RING Not Available Price: |
| 20 |
00012118 |
BLACK SHIFT KNOB Not Available This part replaces 720-3008. Price: |
| 20 |
95-5809 |
BEARING-BALL Price: $146.80 |
| 21 |
32151-83 |
RING-SNAP This part replaces 95-5813. Price: $0.34 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 |
IH-545594-R1 |
LEVER Not Available Price: |
| 22 |
353-988 |
PLUG-HEX Price: $10.61 |
| 23 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 23 |
703-0409 |
YOKE-SHIFT Not Available Price: |
| 24 |
736-3051 |
SPACER Not Available Price: |
| 24 |
88-8190 |
BEARING-JOURNAL Price: $121.52 |
| 25 |
None |
Not used in this application |
| 25 |
25-3210 |
SEAL-LIP Price: $23.14 |
| 26 |
None |
Not used in this application |
| 26 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 27 |
88-8180 |
SHAFT-TRUNNION Price: $225.05 |
| 28 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 29 |
25-2460 |
PLUG-HH Price: $37.38 |
| 30 |
25-2470 |
PACK-SHIM Price: $47.36 |
| 31 |
25-2570 |
SPRING-VALVE Price: $12.67 |
| 32 |
83-7260 |
CONE-RELIEF, CHARGE Price: $50.57 |
| 33 |
67-8030 |
PLUG ASM This part replaces 88-8210. Price: $29.67 |
| 34 |
237-80 |
O-RING Price: $6.10 |
| 35 |
25-2690 |
DISCONTINUED Price: Call Us |
| 36 |
93-4133 |
SEAL-LIP This part replaces 67-8060. Price: $37.43 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 37 |
67-8050 |
BEARING-NEEDLE Price: $54.10 |
| 38 |
322-4 |
SCREW-HH Price: $0.35 |
| 39 |
95-5812 |
GEROTOR ASM Price: $765.80 |
| 40 |
237-95 |
O-RING Price: $11.97 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 42 |
25-2480 |
SPRING-VALVE Price: $4.93 |
| 43 |
25-2500 |
SHAFT-TRUNNION Price: $191.66 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
252-82 |
BEARING-NEEDLE Price: $51.31 |
| 45 |
117-2700 |
HOUSING KIT This part replaces 88-8170. Price: $2,321.28 |
| 46 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 47 |
95-5810 |
SHAFT Price: $874.65 |
| 48 |
25-2450 |
PLATE-SWASH, VARIABLE Price: $896.81 |
| 49 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 50 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 51 |
110-6341 |
BEARING-ROLLER This part replaces 46-8400. Price: $41.33 |
| 53 |
132-4357 |
SEAL-LIP This part replaces 88-8230. Price: $44.12 |
| 55 |
323-45 |
SCREW-HH Price: $0.68 |
