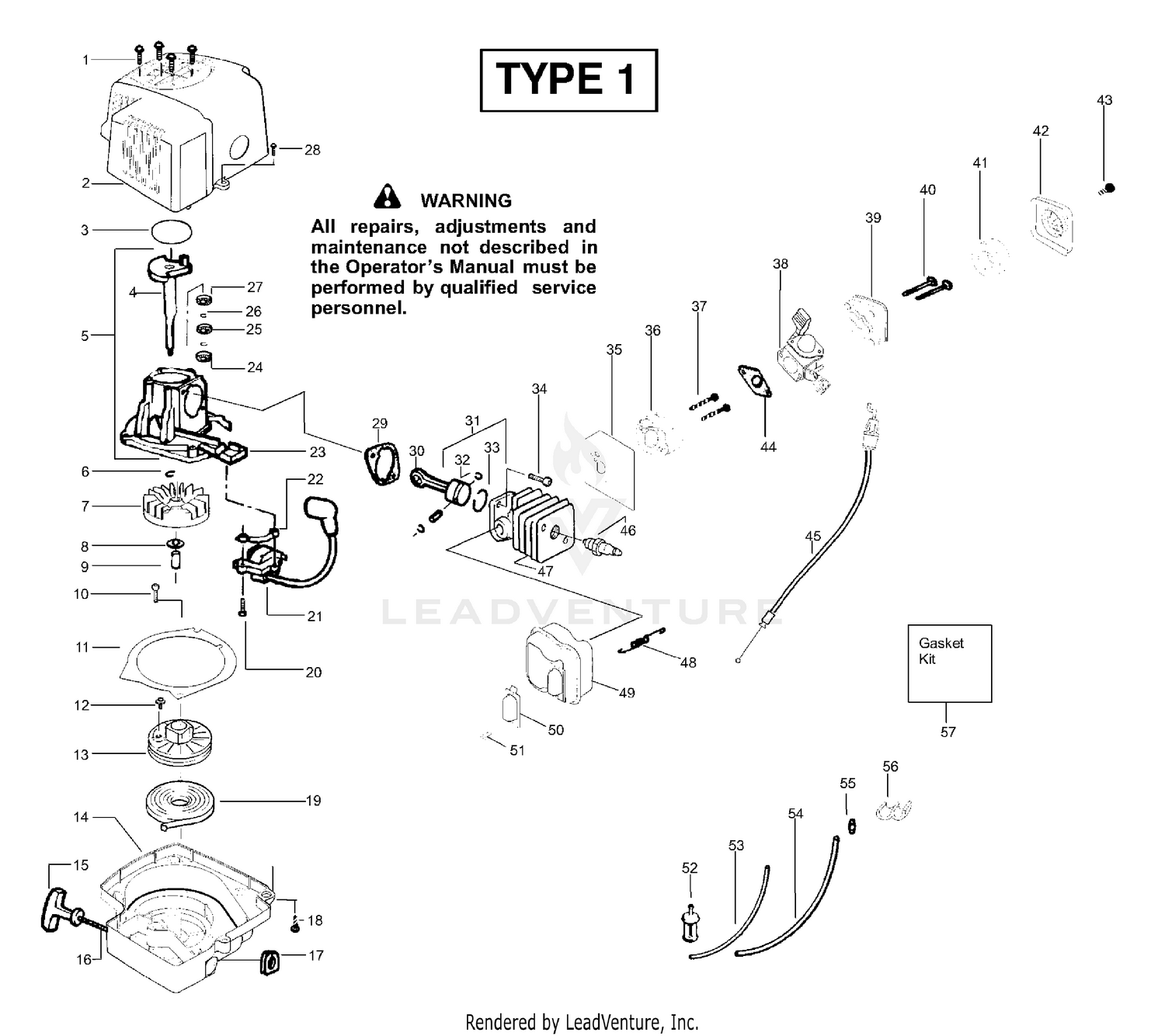

| Ref | Part Number | Description |
|---|
| 1 |
302-22 |
FITTING-GREASE Price: $1.30 |
| 1 |
530016386 |
Screw Price: $5.99 |
| 2 |
100-6592 |
HYDRAULIC CYLINDER ASM This part replaces 21-9040. Price: $843.53 |
| 2 |
530055790 |
Assy-Shroud/H'shield Price: $14.99 |
| 3 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 3 |
530071486 |
O-Ring-Shrd/C'case Price: $5.99 |
| 4 |
21-9080 |
DISCONTINUED Price: Call Us |
| 4 |
545145801 |
CRANKSHAFT ASSY This part replaces 530028802. Price: $17.99 |
| 6 |
530015941 |
Ring-Retainer-C'shaft Price: $1.99 |
| 7 |
21-9030 |
DISCONTINUED Price: Call Us |
| 7 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 8 |
530015828 |
Washer-Flat Price: $1.99 |
| 9 |
21-9070 |
DISCONTINUED Price: Call Us |
| 9 |
530055729 |
Spacer-Flywheel Price: $7.99 |
| 10 |
530015496 |
Screw Price: $1.99 |
| 11 |
530055681 |
Plate-Baffle Price: $2.99 |
| 12 |
530015882 |
Screw Price: $1.99 |
| 13 |
21-9060 |
DISCONTINUED Price: Call Us |
| 14 |
530055762 |
Assy-Fan Housing Price: $14.99 |
| 15 |
530027569 |
Handle-Starter Price: $1.99 |
| 16 |
530069232 |
Kit-Rope Price: $3.99 |
| 17 |
530019182 |
Grommet-Ignition Module Price: $1.99 |
| 18 |
530016386 |
Screw-(f/hsg to shrd) Price: $5.99 |
| 19 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 20 |
530015954 |
Screw Price: $1.99 |
| 21 |
545081826 |
Kit - Ignition Module This part replaces 530039221. Price: $32.99 |
| 22 |
530036145 |
Spacer-Ign. Module Price: $1.99 |
| 23 |
530012462 |
Assy-Crankcase Price: $8.99 |
| 24 |
530032124 |
Bearing-Outer Price: $4.99 |
| 25 |
530019179 |
Seal-Crankcase Price: $2.99 |
| 26 |
530015945 |
Ring-Retainer-C'case Price: $1.99 |
| 27 |
530032125 |
Bearing-Inner Price: $11.99 |
| 28 |
530015934 |
Screw Price: $1.99 |
| 29 |
530071486 |
Gasket-Cylinder Price: $5.99 |
| 30 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 32 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 33 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 34 |
530015953 |
Screw Price: $1.99 |
| 35 |
530071486 |
Gasket-Cyl./Carb. Adapt. Price: $5.99 |
| 36 |
530055459 |
Adapter-Carburetor Price: $4.99 |
| 37 |
530016014 |
Screw Price: $1.99 |
| 38 |
530071633 |
Kit-Carburetor Ass'y. This part replaces 530071601. Price: $32.99 |
| 39 |
530055680 |
Air Box Price: $2.99 |
| 40 |
530016353 |
Screw Price: $1.99 |
| 41 |
530047932 |
Air Filter Foam Price: $1.99 |
| 42 |
530055679 |
Air Filter Cover Price: $1.99 |
| 43 |
530015957 |
Screw Price: $1.99 |
| 44 |
530071486 |
Gasket-Carburetor Price: $5.99 |
| 45 |
530055547 |
Assy-Throttle Cable Price: $5.99 |
| 46 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 47 |
530012416 |
Cylinder This part replaces 530071359. Price: $17.99 |
| 48 |
530042088 |
Spring-Muffler Price: $1.99 |
| 49 |
530071470 |
Kit-Muffler Price: $22.99 |
| 50 |
530071361 |
Kit-Spark Arrestor Price: $4.99 |
| 51 |
530015241 |
Screw Price: $1.99 |
| 52 |
530095646 |
Assy-Pick-up Price: $2.99 |
| 53 |
530069247 |
Kit-Fuel Line (small) Price: $3.99 |
| 54 |
530069216 |
Kit-Fuel Line (large) Price: $3.99 |
| 55 |
530023877 |
Fitting-Fuel Line Price: $1.99 |
| 56 |
530016103 |
Clip-Retainer Price: $1.99 |
