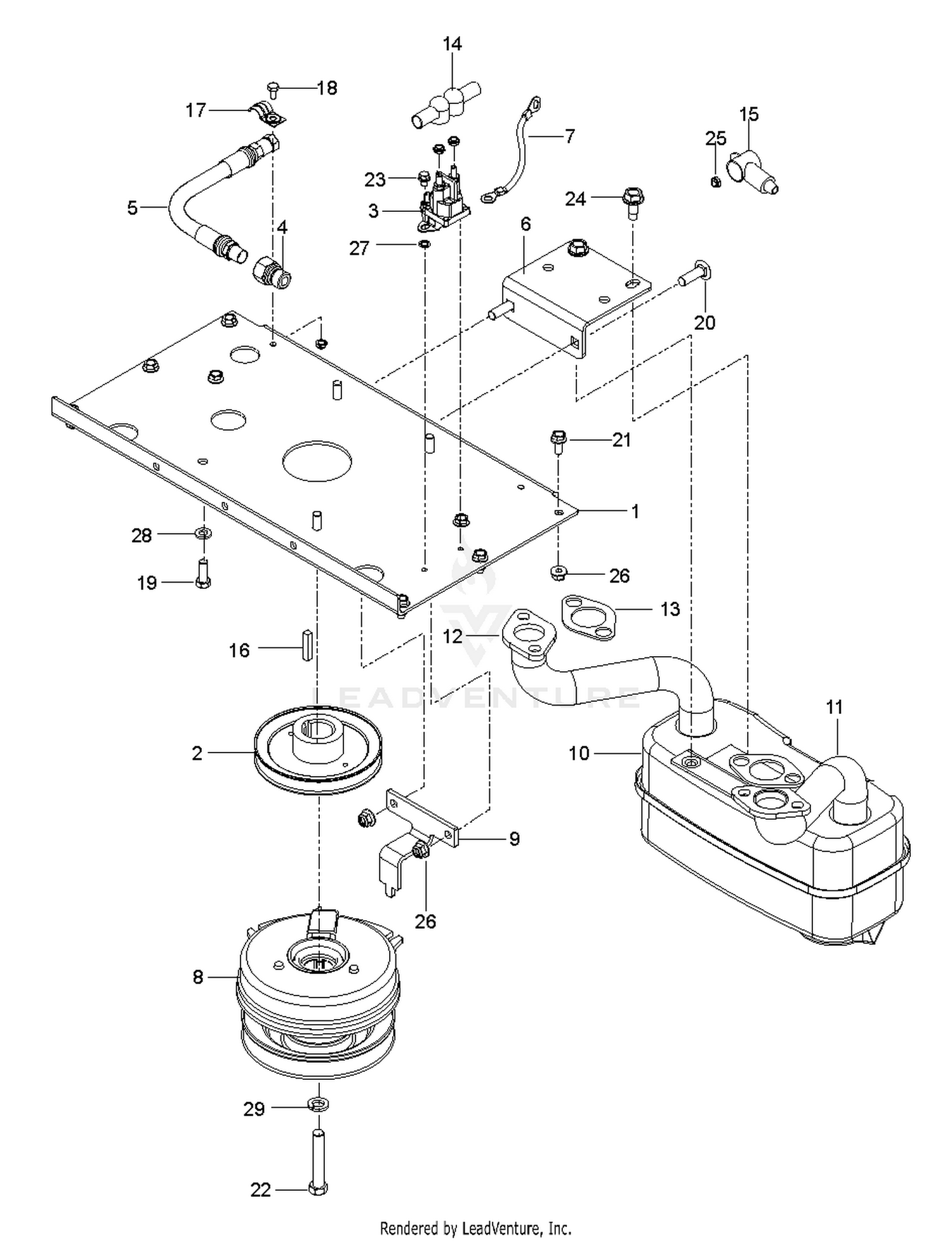

| Ref | Part Number | Description |
|---|
| 000000000 |
| |
Engine, Kawasaki FR730V-FS00-S 24 Hp. For engine replacement parts, see Kawasaki dealer. Price: Call Us 000000000 |
| 1 |
586651402 |
PLATE.PNT.ENGINE.E-DIP Price: $32.99 |
| 2 |
574811001 |
PULLEY, V, 1.125 BORE Price: $39.99 |
| 3 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 4 |
522599003 |
ADAPTER This part replaces 522599002. Price: $8.99 |
| 5 |
584825501 |
HOSE.ASSEMBLY.OIL.DRAIN Price: $27.99 |
| 6 |
575229902 |
BRKT, MUFFLER, BLK Price: $29.99 |
| 8 |
574607001 |
CLUTCH 200 FT LB Price: $379.99 |
| 9 |
575017305 |
STOP CLUTCH STOP This part replaces 575017302. Price: $12.99 |
| 10 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 11 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 12 |
539102757 |
CABLE POSITIVE Price: $7.99 |
| 13 |
532178151 |
GASKET This part replaces 586839701. Price: $4.99 |
| 14 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 15 |
539102759 |
INSULATOR Price: $3.99 |
| 16 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 17 |
539101363 |
CLAMP Price: $2.99 |
| 18 |
596437001 |
Screws Price: $2.99 |
| 19 |
596564401 |
Bolts Price: $3.99 |
| 20 |
596435701 |
Bolts Price: $2.99 |
| 21 |
592858702 |
Bolts Price: $3.99 |
| 22 |
581332806 |
Bolts Price: $6.99 |
| 23 |
596582701 |
Screws Price: $2.99 |
| 24 |
596135901 |
Bolts Price: $1.99 |
| 25 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 596031501. Price: $1.99 |
| 26 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 27 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 28 |
596238701 |
Washers Price: $3.99 |
| 29 |
596238901 |
Washers Price: $2.99 |
