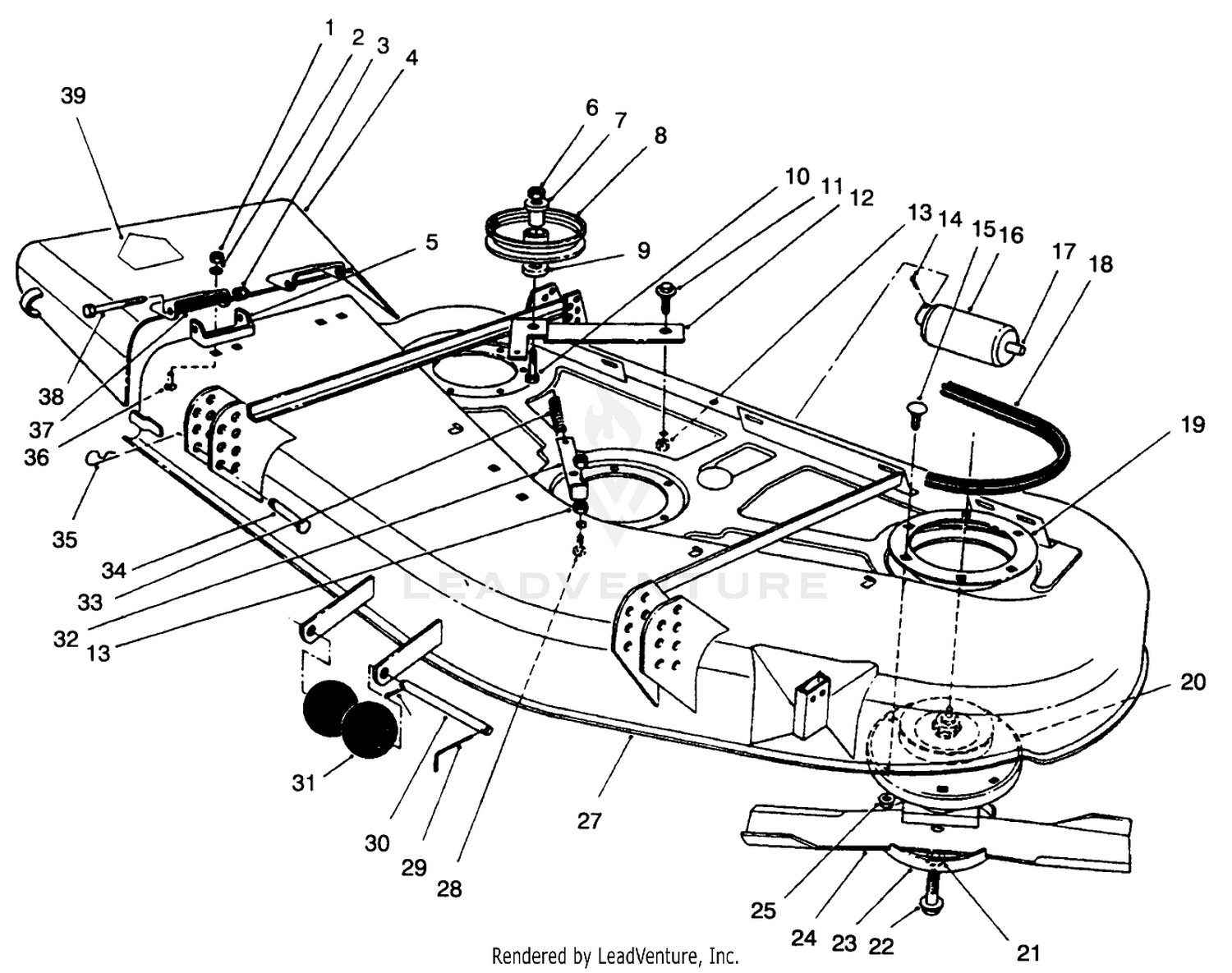

| Ref | Part Number | Description |
|---|
| 1 |
3217-6 |
NUT-HEX Price: $1.19 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
3296-5 |
NUT-HEX Price: $3.09 |
| 4 |
13-3949 |
DEFLECTOR ASM Price: $214.07 |
| 5 |
29-5590-03 |
BRACKET-PIVOT This part replaces 29-5590. Price: $23.25 |
| 6 |
3296-5 |
NUT-HEX Price: $3.09 |
| 7 |
65-5950 |
BUSHING-PULLEY Price: $4.44 |
| 8 |
65-5940 |
PULLEY-IDLER Price: $35.61 |
| 9 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 10 |
3211-8 |
SCREW-HH Price: $3.50 |
| 11 |
19-1470 |
SCREW-SHOULDER Price: $3.49 |
| 12 |
56-5520-01 |
DISCONTINUED This part replaces 56-5520. Price: Call Us |
| 13 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 14 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 15 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 16 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 17 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 18 |
56-5560 |
V-BELT, DECK Price: $76.85 |
| 19 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 20 |
27-0871 |
SPINDLE HSG ASM Price: Call Us |
| 21 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 22 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 23 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 24 |
27-0990-03 |
BLADE-18 INCH This part replaces 27-0990. Price: $18.94 |
| 25 |
32128-21 |
NUT-HF Price: $0.39 |
| 27 |
14-2359 |
Housing Price: Call Us |
| 28 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 29 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 30 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 31 |
29-4820 |
ROLLER Price: $14.88 |
| 32 |
56-5540-01 |
ANCHOR-DECK SPRING This part replaces 56-5540. Price: $25.10 |
| 33 |
54-1160 |
SPRING-EXTENSION, DECK Price: $31.38 |
| 34 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 35 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 36 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 37 |
40-6230 |
SPRING Price: $37.99 |
| 38 |
3211-15 |
SCREW-HH Price: $7.99 |
