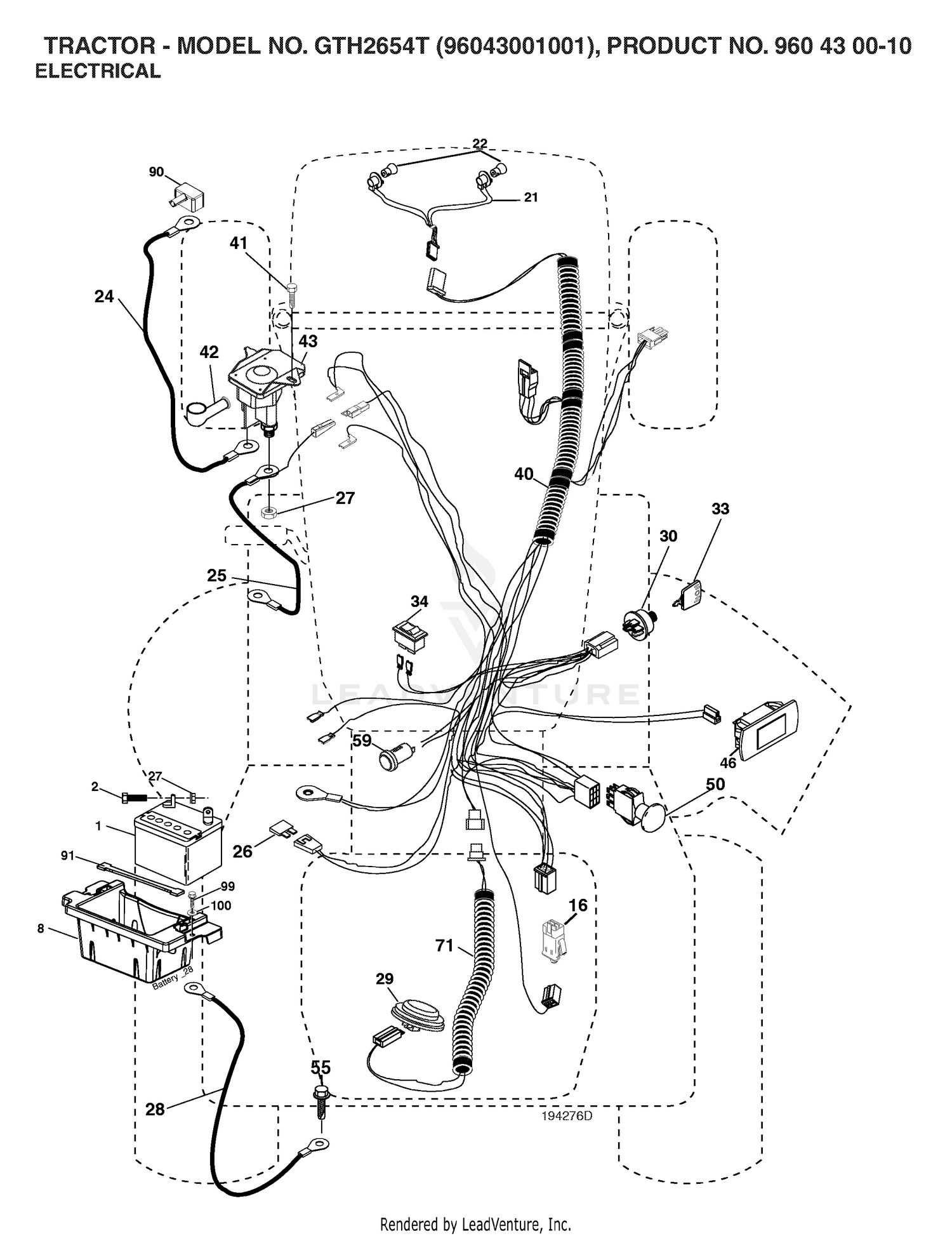

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 10 |
115-3446 |
CYLINDER HEAD COVER ASM Price: $240.24 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
98-9615 |
GASKET-COVER, HEAD Price: $20.34 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
110-3715 |
VALVE-BREATHER Price: $173.99 |
| 40 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 41 |
596437001 |
Screws This part replaces 871720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532198138. Price: $19.99 |
| 50 |
110-3714 |
COVER-BREATHER Price: $22.08 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 60 |
98-9364 |
SCREW (WITH WASHER) Price: $0.32 |
| 70 |
98-7766 |
PIPE-RETURN, WATER Price: $9.95 |
| 71 |
584452601 |
HARNESS.IGN.DASH.HUQ/PRED KIT This part replaces 532401105. Price: $49.99 |
| 80 |
98-9455 |
NUT-CAP Price: $4.77 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 90 |
98-9454 |
GASKET Price: $1.43 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
107-7836 |
TUBE-BREATHER Price: $8.51 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 110 |
108-2859 |
CLAMP-HOSE Price: $2.19 |
| 120 |
108-2860 |
CLAMP-HOSE Price: $5.06 |
| 130 |
107-9075 |
PLUG-FILLER, OIL Price: $7.25 |
