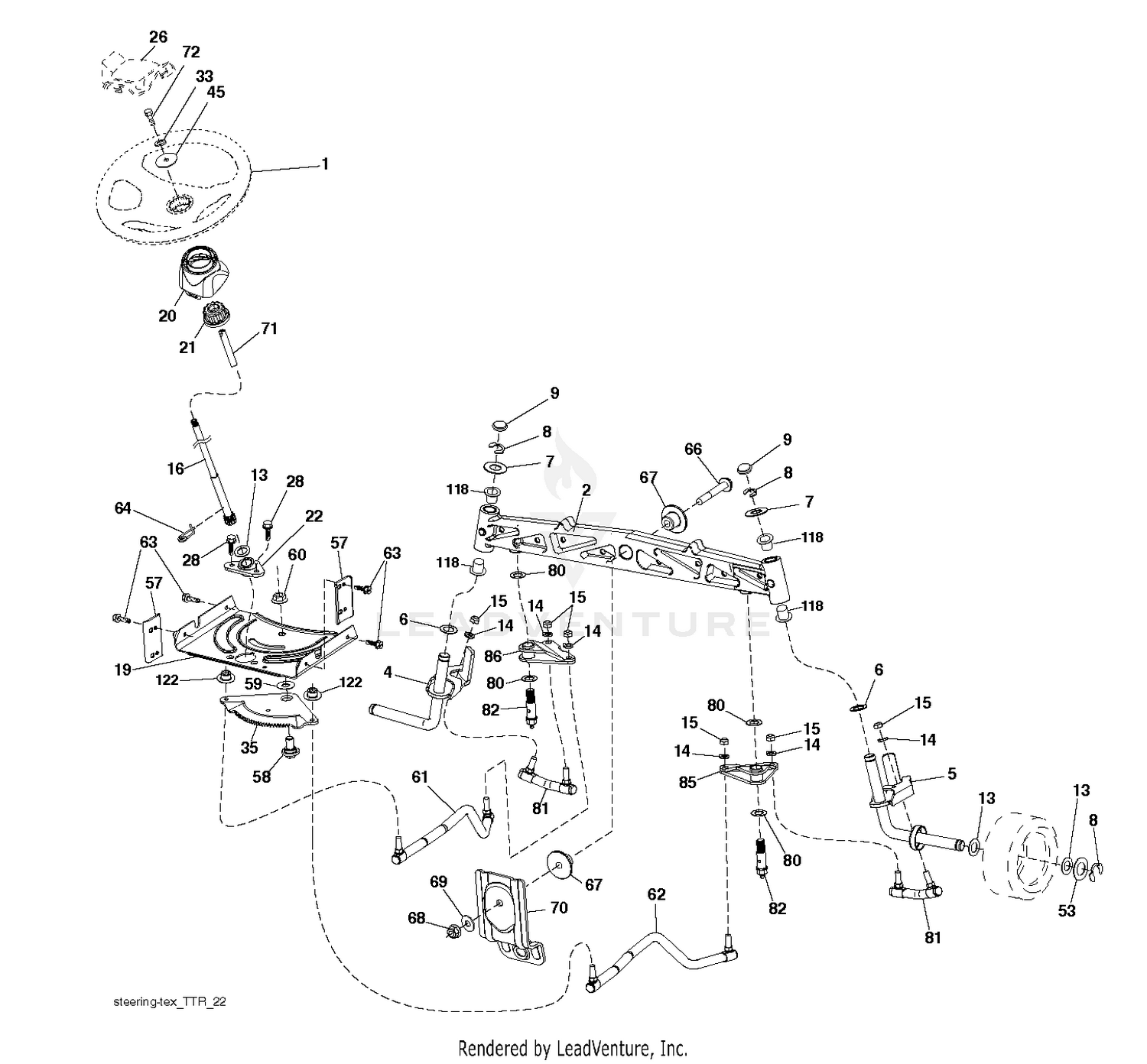

| Ref | Part Number | Description |
|---|
| 1 |
32-1140 |
DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 2 |
583512701 |
SUBASM.AXLE.CAST.NZTR. This part replaces 532436870. Price: $169.99 |
| 3 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 4 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 4 |
583512801 |
WELDMENT.SPINDLE.LH.15.NZTR This part replaces 532436873. Price: $29.99 |
| 5 |
10-7070 |
KEY-SQUARE Price: $1.02 |
| 5 |
583512901 |
WELDMENT.SPINDLE.RH.15.NZTR This part replaces 532436874. Price: $24.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
61-2120 |
DISCONTINUED Price: Call Us |
| 7 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 11 |
61-3470 |
AIR CLEANER HOSE Price: $39.40 |
| 12 |
3334-945 |
TIE-CABLE This part replaces 3333-975. Price: $0.43 |
| 13 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
76-0070 |
DISCONTINUED Price: Call Us |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
583573801 |
RP.SHAFT.STEER.3HI.PLATED.NZTR This part replaces 532444213. Price: $49.99 |
| 16 |
59-9810 |
DISCONTINUED Price: Call Us |
| 17 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 18 |
70-7080 |
WASHER Price: $5.31 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 19 |
61-2170 |
DISCONTINUED Price: Call Us |
| 20 |
3218-3 |
NUT-JAM Price: $0.25 |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT Price: $7.99 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532437747. Price: $7.99 |
| 21 |
70-8020 |
DISCONTINUED Price: Call Us |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532194845. Price: $14.99 |
| 22 |
70-8040 |
WASHER Price: $5.46 |
| 23 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 24 |
3213-9 |
SCREW-HH Price: $5.50 |
| 25 |
61-3390 |
BELT Price: $39.04 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 26 |
61-0040 |
MUFFLER Price: $418.82 |
| 27 |
2112-9 |
CLAMP Price: $7.78 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
3217-6 |
NUT-HEX Price: $1.19 |
| 30 |
12-3270 |
SCREW Price: $3.09 |
| 31 |
61-0020-03 |
MUFFLER SHROUD ASM This part replaces 61-0020. Price: $445.18 |
| 32 |
3256-70 |
WASHER-FLAT Price: $0.25 |
| 33 |
323-10 |
SCREW-HH This part replaces 322-46. Price: $0.89 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
32128-25 |
NUT-HF Price: $3.19 |
| 35 |
583551401 |
GEAR.SECTOR.TEX.NZTR This part replaces 532440770. Price: $39.99 |
| 36 |
70-8030 |
KEY Price: $9.12 |
| 37 |
84-1840-03 |
MUFFLER GRILLE This part replaces 66-5330. Price: $431.06 |
| 38 |
2412-41 |
CLAMP-R Price: $4.82 |
| 39 |
3290-410 |
TIE-MOUNT, PUSH Price: $4.57 |
| 40 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 41 |
61-2220 |
SPACER Price: $9.77 |
| 42 |
323-47 |
SCREW-HH Price: $1.22 |
| 44 |
3218-1 |
NUT-JAM Price: $1.29 |
| 45 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 45 |
61-3330 |
PULLEY Price: $199.28 |
| 46 |
61-3340 |
BUSHING Price: $32.74 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597069802 |
LINKAGE SUBASM LINK DRAG LH N This part replaces 532436884. Price: $29.99 |
| 62 |
597069902 |
Links This part replaces 532436885. Price: $29.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 72 |
596039701 |
Bolts This part replaces 532428982. Price: $3.99 |
| 80 |
532001370 |
THRUST WASHER Price: $4.99 |
| 81 |
597069702 |
Links This part replaces 532436887. Price: $9.99 |
| 82 |
532436877 |
Price: Call Us |
| 85 |
529846901 |
SERVICE KIT SUBASM.PIVOT.RH.NZ This part replaces 532441873. Price: $17.99 |
| 86 |
583561001 |
SUBASM.PIVOT.LH.NZTR This part replaces 532441872. Price: $27.99 |
| 118 |
532406013 |
BUSHING, AXLE CAST Price: $4.99 |
