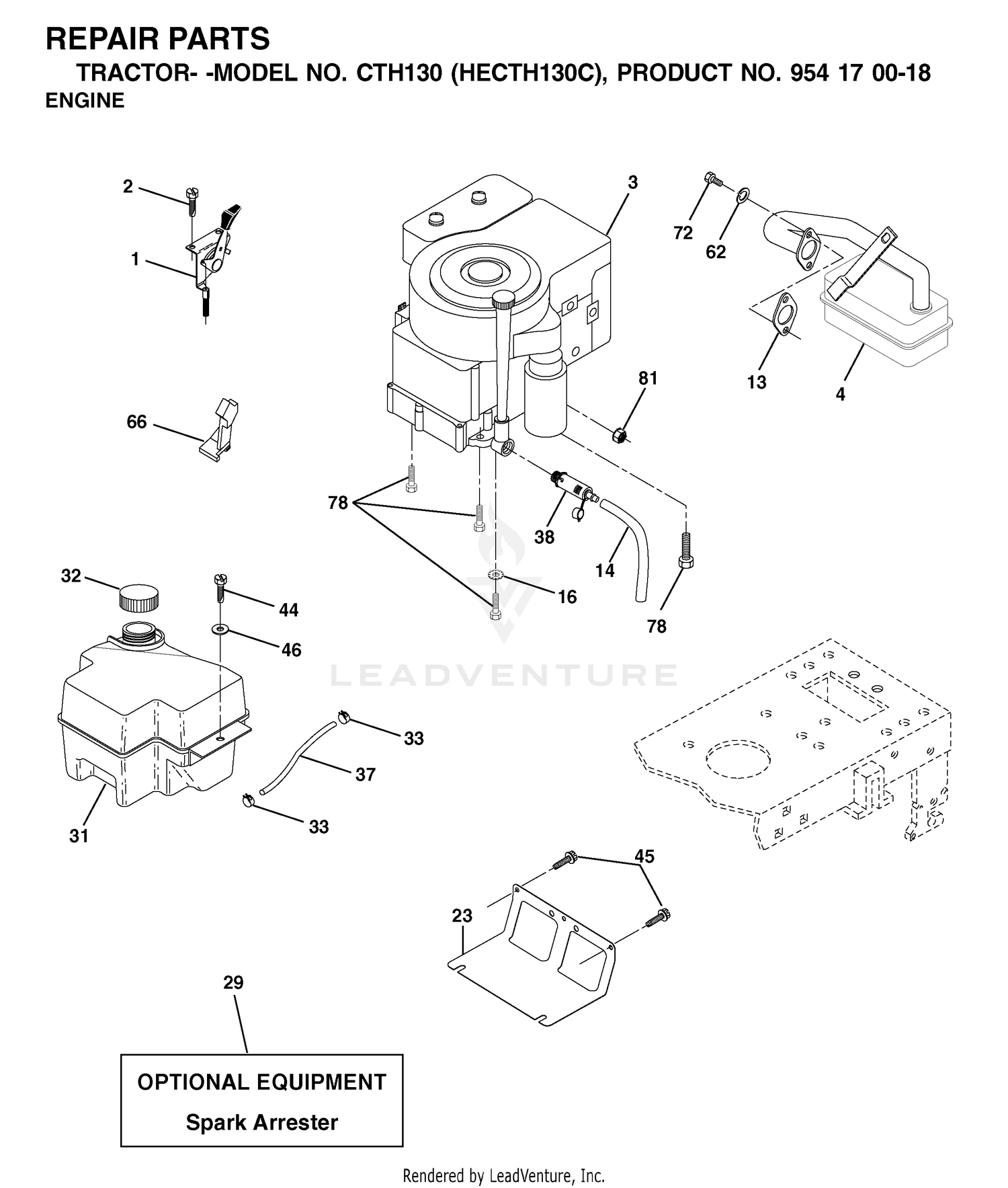

| Ref | Part Number | Description |
|---|
| 1 |
532170865 |
THROTTLE.CONTROL.CABLE.BLACK Price: $22.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 10 |
127-0459 |
FLANGE-INJECTOR Price: $474.88 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532174642. Price: $59.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 40 |
127-0460 |
GASKET-FLANGE Price: $18.14 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 50 |
127-0499 |
SPARK PLUG Price: $44.99 |
| 60 |
127-0498 |
COIL-IGNITION Price: $241.34 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 66 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 70 |
99-8363 |
BOLT-FLANGE Price: $1.66 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 90 |
127-0509 |
DELIVERY PIPE ASM Price: $279.28 |
| 120 |
127-0411 |
PACKING Price: $1.74 |
| 130 |
127-0413 |
PLUG Price: $2.74 |
| 140 |
125-9096 |
GASKET Price: $0.92 |
| 150 |
127-0456 |
CAP-FUEL Price: $1.83 |
| 160 |
125-9107 |
INJECTOR Price: $219.41 |
| 165 |
100-1774 |
BOLT-FLANGE Price: $5.26 |
| 170 |
127-0458 |
STOPPER-INJECTOR Price: $6.40 |
| 180 |
127-0404 |
BOLT-FLANGE Price: $2.13 |
| 190 |
127-0405 |
BOLT-FLANGE Price: $0.91 |
