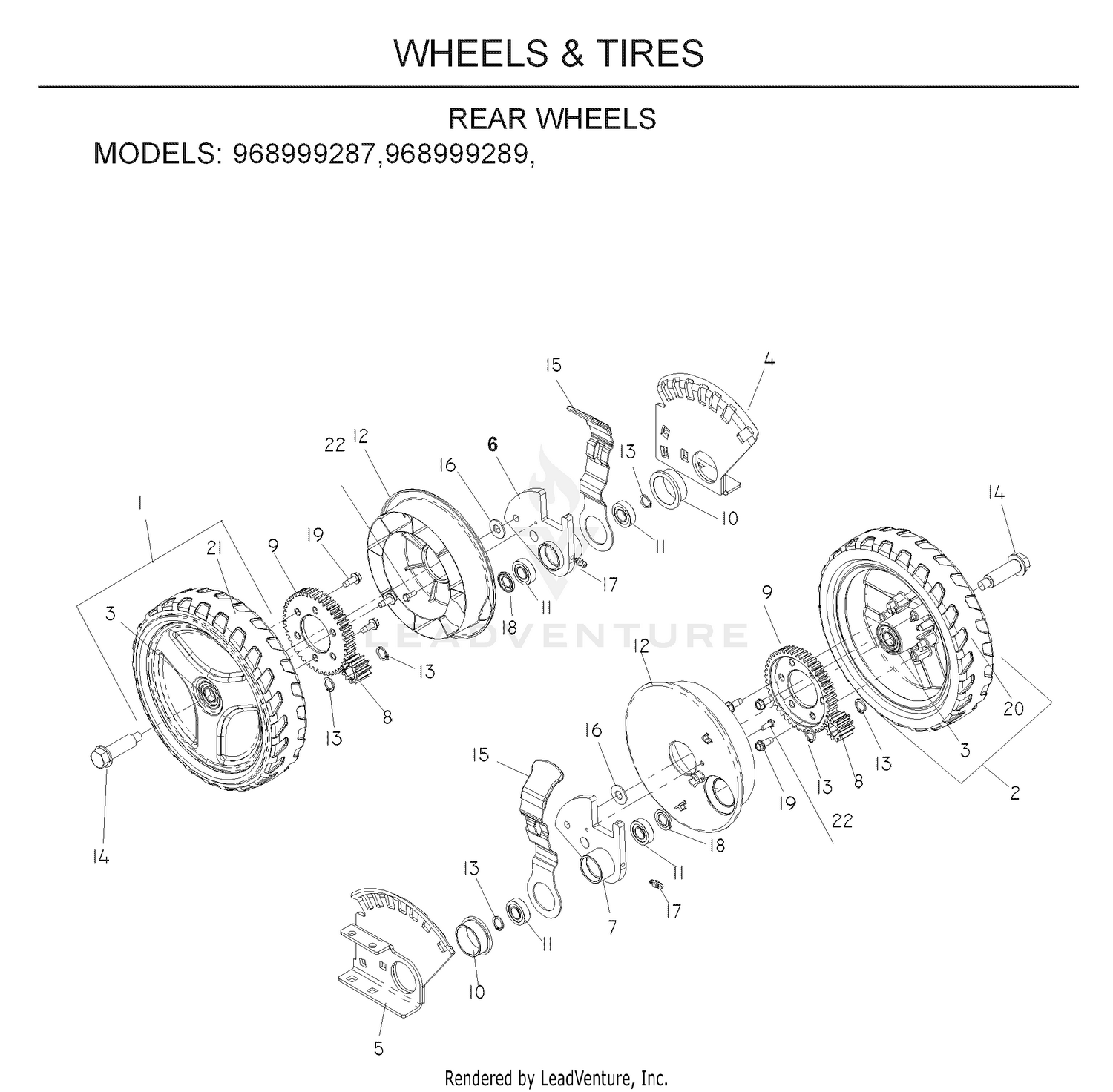

| Ref | Part Number | Description |
|---|
| 1 |
539111993 |
BAIL GROUND DRIVE Price: $54.99 |
| 1 |
539130853 |
WHEEL ASM - 9" This part replaces 539111503. Price: $69.99 |
| 2 |
539112276 |
HCS, M6-1.0 X 70, GR8.8 Price: $2.99 |
| 2 |
539130853 |
WHEEL ASM - 9" This part replaces 539111972. Price: $69.99 |
| 3 |
539111504 |
BEARING, WHEEL Price: $5.99 |
| 3 |
539112277 |
HCS, M6-1.0 X 50, GR8.8 Price: $1.99 |
| 4 |
539110488 |
WASHER, 5/16, WAVE Price: $2.99 |
| 4 |
539111513 |
WHEEL MOUNT, LEFT Price: $10.99 |
| 5 |
539111875 |
WHEEL MOUNT, RIGHT Price: $10.99 |
| 5 |
539130894 |
GRIP - DRIVE LEVER 12" This part replaces 539122635. Price: $6.99 |
| 6 |
539111519 |
OUTER WHEEL, LEFT Price: $10.99 |
| 6 |
539112907 |
BAIL Price: $11.99 |
| 7 |
539111867 |
OUTER WHEEL, RIGHT Price: $17.99 |
| 7 |
539112922 |
ROPE GUIDE Price: $4.99 |
| 8 |
539113067 |
DECAL, STOP SIGN Price: $1.99 |
| 9 |
539111511 |
DRIVEN GEAR, 45 TOOTH Price: $27.99 |
| 9 |
539113068 |
DECAL, PTO Price: $2.99 |
| 10 |
506109701 |
DRIVE CABLE GROUND This part replaces 539113110. Price: $49.99 |
| 10 |
539111516 |
BUSHING Price: $2.99 |
| 11 |
539111517 |
BEARING, TRANS SHAFT Price: $27.99 |
| 11 |
539113113 |
THROTTLE CABLE, BBC Price: $32.99 |
| 12 |
539111547 |
DEBRIS GUARD Price: $3.99 |
| 12 |
539113114 |
BBC CONTROL Price: $64.99 |
| 13 |
539111872 |
RETAINING RING, 1/2, EXT Price: $2.99 |
| 13 |
539113117 |
HANDLE Price: $349.99 |
| 14 |
539111873 |
SHOULDER BOLT Price: $5.99 |
| 14 |
539990134 |
SCREW 3/8C X 3/4 HEX CAP Price: $3.99 |
| 15 |
539111950 |
LEVER Price: $7.99 |
| 15 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 16 |
539112789 |
AXLE WASHER Price: $1.99 |
| 16 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 17 |
539115638 |
ZERK, 3/16, DRIVE IN Price: $4.99 |
| 18 |
539113138 |
WASHER, SPACER Price: $2.99 |
| 19 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 20 |
539130853 |
WHEEL ASM - 9" This part replaces 539111971. Price: $69.99 |
| 21 |
539130853 |
WHEEL ASM - 9" This part replaces 539111502. Price: $69.99 |
| 22 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
