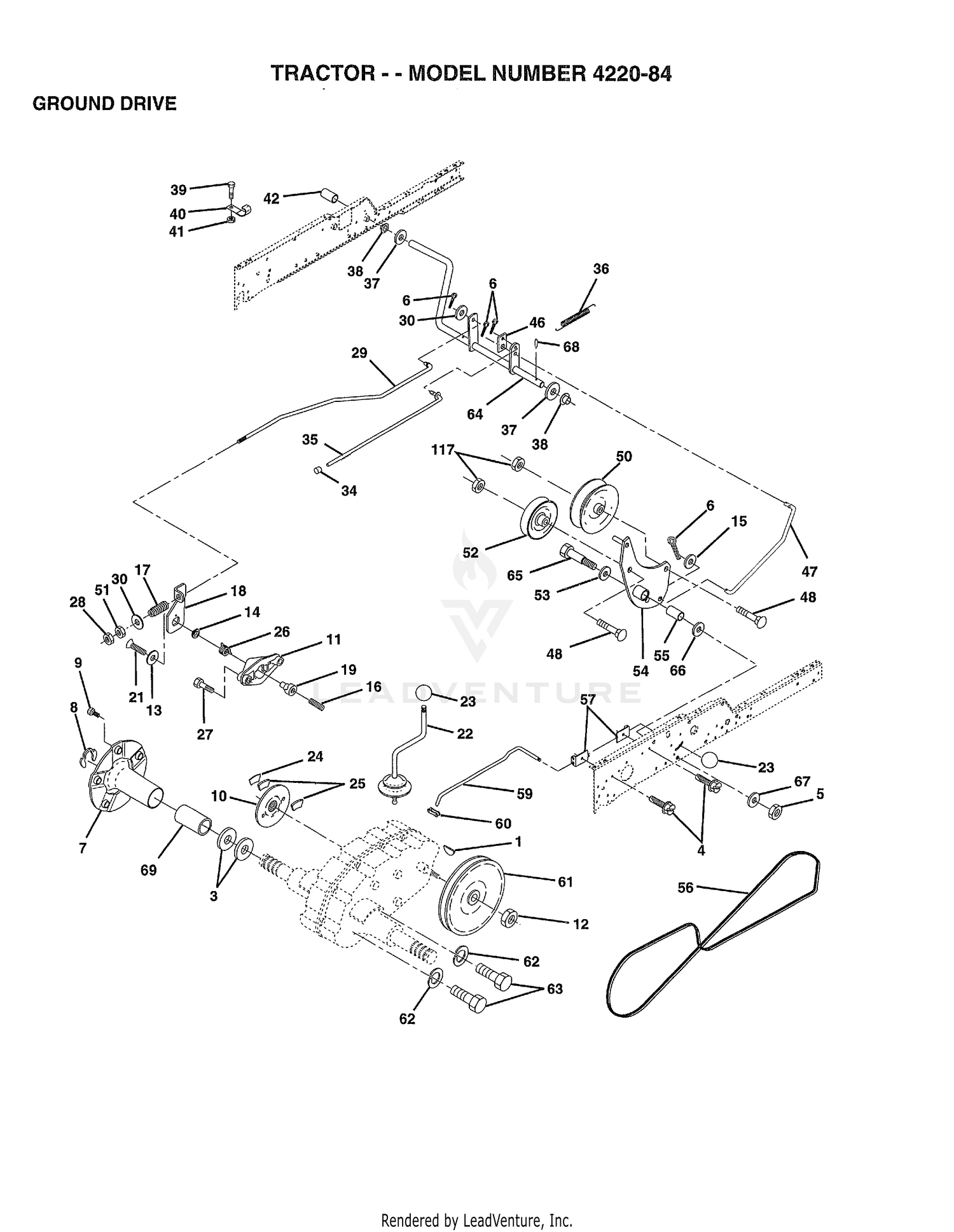

| Ref | Part Number | Description |
|---|
| 1 |
32151-100 |
RING-RETAINING Price: $4.41 |
| 1 |
9858M1 |
KEY Price: Call Us |
| 2 |
69-8910 |
WASHER Price: $1.70 |
| 3 |
7563R |
WASHER T Price: Call Us |
| 3 |
82-7850 |
SPRING-COMPRESSION Price: $12.29 |
| 4 |
354-104 |
RING-BACK UP Price: $2.24 |
| 5 |
237-175 |
O-RING Price: $4.39 |
| 5 |
73680600 |
SUB= 73690600 Price: Call Us |
| 6 |
76020412 |
COTTER PIN Price: Call Us |
| 6 |
82-7840 |
PISTON-BRAKE Price: $220.21 |
| 7 |
149176 |
SUB= 149176X431 Price: Call Us |
| 7 |
237-174 |
O-RING Price: $4.01 |
| 8 |
120000034 |
RING KLIP Price: Call Us |
| 8 |
354-105 |
RING-BACK UP Price: $3.12 |
| 9 |
140080 |
BOLT.HUB.WHL.REAR Price: Call Us |
| 9 |
21-2070-03 |
END-YOKE Price: $40.78 |
| 10 |
105-0605 |
HOUSING-LH Price: $573.76 |
| 10 |
105-0606 |
HOUSING-RH Price: $555.70 |
| 10 |
142509 |
BRAKE.DISC. Price: Call Us |
| 11 |
136927 |
YOKE BRAKE DISC Price: Call Us |
| 11 |
82-7830 |
SCREW-BLEEDER, BRAKE Price: $21.68 |
| 12 |
82-7820 |
SEAT-TUBE, BRAKE Price: $6.91 |
| 13 |
139419 |
WASHER SPECIAL Price: Call Us |
| 13 |
321-2 |
SCREW-HH Price: $2.79 |
| 14 |
138901 |
BUSHING LEVER BKT Price: Call Us |
| 14 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 15 |
19131316 |
WASHER Price: Call Us |
| 15 |
71-3850-03 |
COVER-ACTUATOR, BRAKE Price: $13.99 |
| 16 |
143012 |
SCREW SET 1/4-20 Price: Call Us |
| 16 |
71-3870 |
GASKET Price: $12.51 |
| 17 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 18 |
137014 |
LEVER BRAKE Price: Call Us |
| 18 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 19 |
136926 |
CAM BRAKE DISC GT Price: Call Us |
| 19 |
32128-25 |
NUT-HF Price: $3.19 |
| 20 |
71-3830-03 |
BELLCRANK-BRAKE Price: $82.63 |
| 21 |
23260412 |
SCREW FLT 1/4X28 Price: Call Us |
| 21 |
71-3900 |
GASKET Price: $17.82 |
| 22 |
633A109 |
GEAR SHFT LVR T Price: Call Us |
| 23 |
121466X |
KNOB Price: Call Us |
| 23 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 24 |
136925 |
SUPPORT PUCK BRKE Price: Call Us |
| 24 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 25 |
136923 |
PUCK BRAKE TOP Price: Call Us |
| 25 |
71-3860 |
CLEVIS Price: $16.88 |
| 26 |
137552 |
SPRING RET BRAKE Price: Call Us |
| 26 |
69-0030 |
SPRING-COMPRESSION Price: $21.80 |
| 27 |
17490528 |
SCREW HX WASH Price: Call Us |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 28 |
73350600 |
NUT Price: Call Us |
| 29 |
12-8900 |
BOLT-SHOULDER, HH Price: $22.27 |
| 30 |
19131616 |
WASHER HYT Price: Call Us |
| 30 |
93-7417 |
GASKET Price: $5.86 |
| 31 |
71-3910 |
COLLAR Price: $35.77 |
| 32 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 33 |
93-7418 |
CAP-ACTUATOR, BRAKE Price: $28.84 |
| 34 |
71673 |
PLUNGER CAP T Price: Call Us |
| 35 |
137648 |
ROD BRAKE PART GT Price: Call Us |
| 36 |
149412 |
SPRING.GRND.DRIVE Price: Call Us |
| 38 |
150035 |
BUSHING.NYLINER Price: Call Us |
| 39 |
74321016 |
SCREW Price: Call Us |
| 40 |
5304J |
ACT-SWITCH T Price: Call Us |
| 41 |
73661000 |
NUT.FLANGE Price: Call Us |
| 42 |
8883R |
PEDAL COVER T Price: Call Us |
| 46 |
145170 |
RETAINER.SPRING Price: Call Us |
| 47 |
138228 |
ROD.CLUTCH Price: Call Us |
| 48 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 50 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
139123 |
PULLEY.IDLER.V.GR Price: Call Us |
| 53 |
207J |
WASHER T Price: Call Us |
| 54 |
161590 |
CLUTCH.ARM.ASM Price: Call Us |
| 56 |
137153 |
BELTV.GR.DR.83. Price: Call Us |
| 57 |
141756 |
BRACKET.ROD.SHIFT Price: Call Us |
| 59 |
122253X |
ROD SHIFT HI LO Price: Call Us |
| 60 |
122268X |
CONNECTING LINK Price: Call Us |
| 61 |
137524 |
SUB= 532137524 Price: Call Us |
| 62 |
10040700 |
LOCKWASHER Price: Call Us |
| 63 |
74760720 |
BOLT Price: Call Us |
| 64 |
154752 |
SHAFT-BRAKE/CLUTC Price: Call Us |
| 65 |
67609 |
AXLE BOLT Price: Call Us |
| 66 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 67 |
19131312 |
WASHER Price: Call Us |
| 68 |
5142H |
ROLL PIN STD Price: Call Us |
