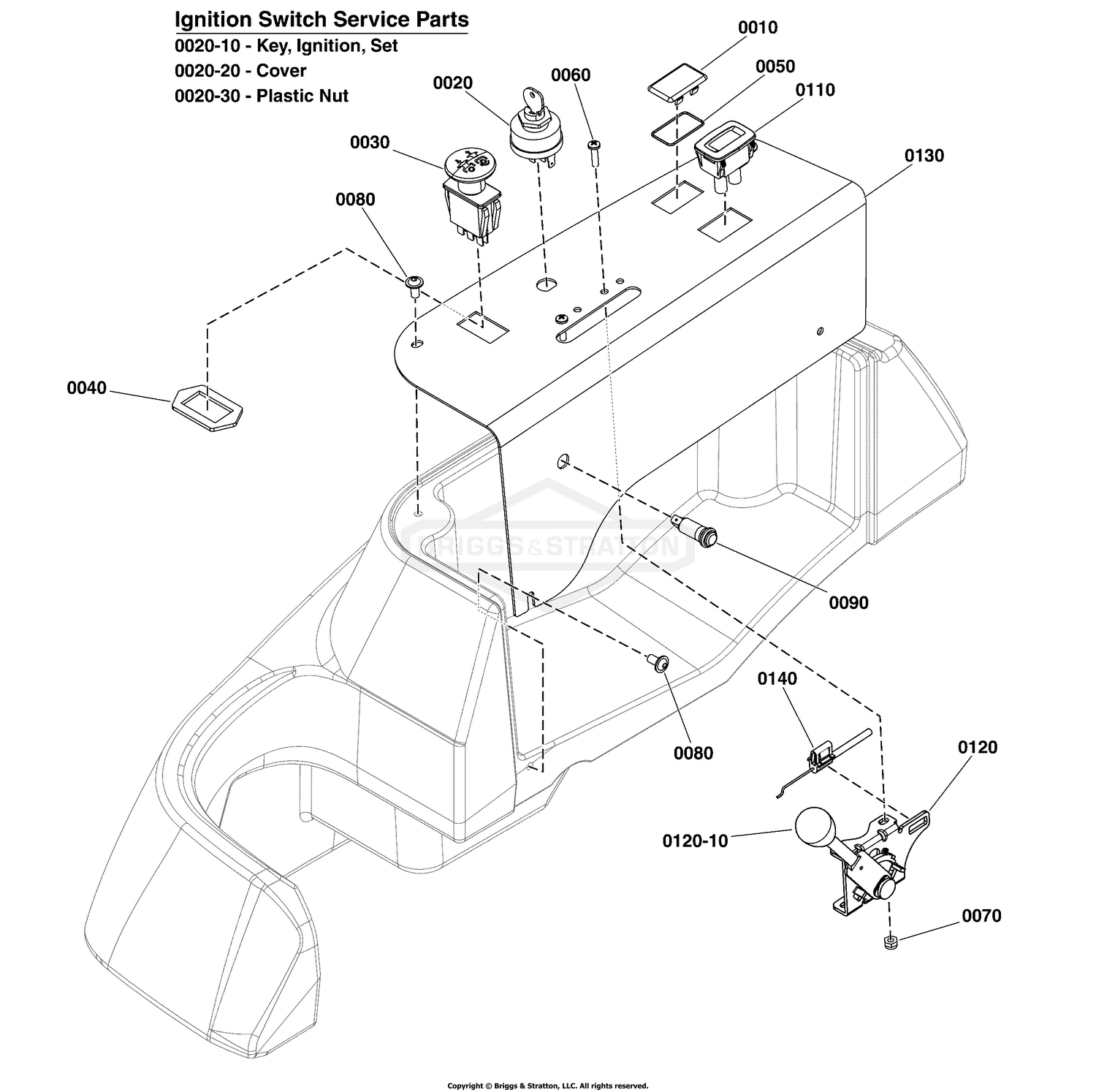

Instrument Control Panel Group

Instrument Control Panel Group

Parts (12)

RefPart NumberDescription
0010 1709188SM PLUG, BLACK PLASTIC This part replaces 1709188. Price: $4.62
0020 5020927FS SWITCH, IGNITION This part replaces 5020927. Price: $30.37
0030 1722887SM SWITCH-PTO PUSH This part replaces 1722887. Price: $30.86
0040 5022222SM RING, SWITCH RETAINER This part replaces 5022222. Price: $3.94
0050 5022269SM O-RING, 7/8" ID X 1/1 This part replaces 5022269. Price: $2.97
0060 5025179X6SM SCREW - #10-24 This part replaces 5025179X6. Price: $6.24
0070 5025271FS NUT This part replaces 5025271. Price: $3.62
0080 84002228 SCREW, FLANGE This part replaces 5106469. Price: $2.22
0090 5103809YP LIGHT, Indicator This part replaces 5103809. Price: $27.00
0110 84008510 HOURMETER (6 Pin Connector) Price: $30.73
0120 5101537SM LEVER, THROTTLE CONTR This part replaces 5101537. Price: $44.64
0130 5419032AAFS PANEL, Control This part replaces 5419032A. Price: $33.06
