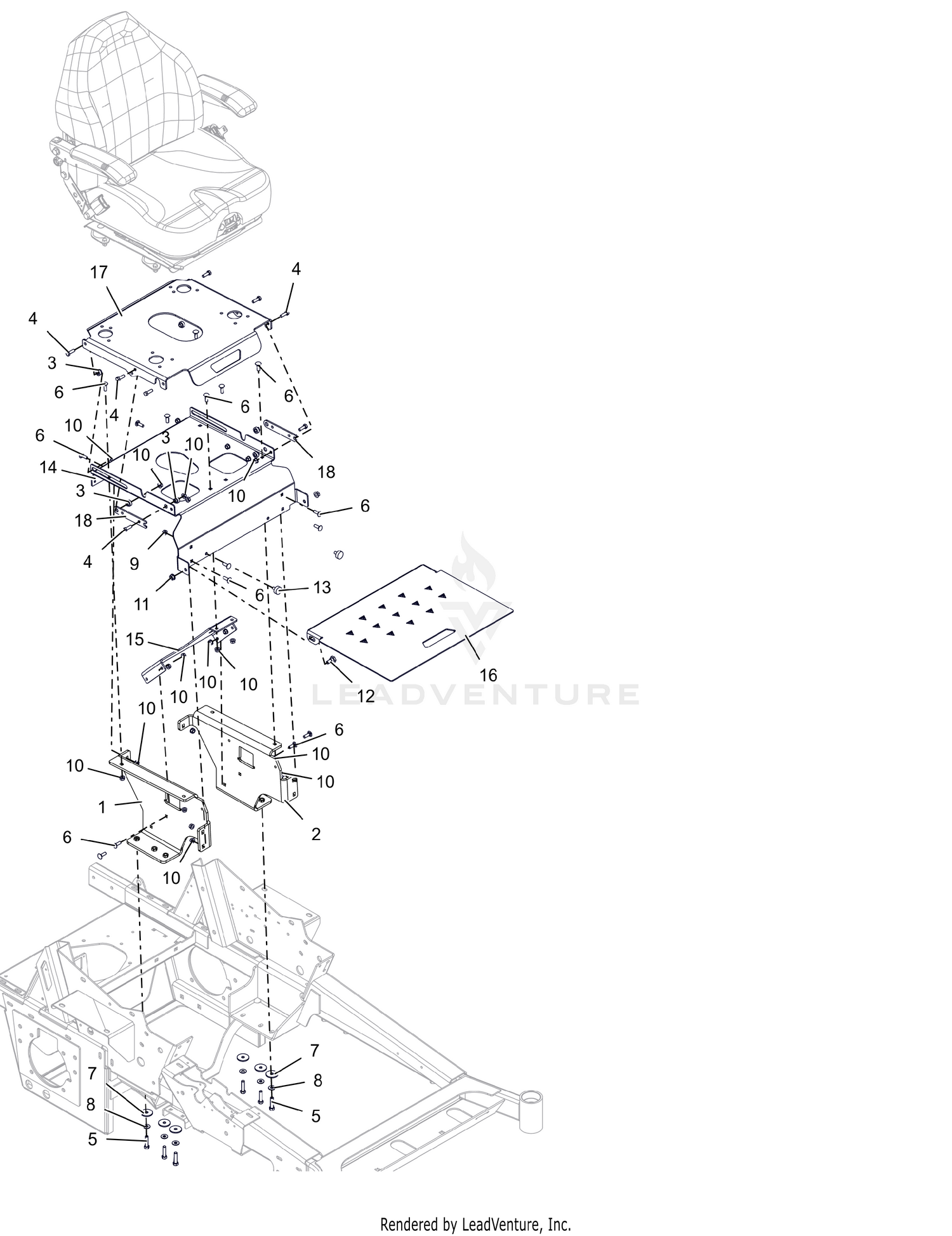

| Ref | Part Number | Description |
|---|
| 1 |
09674853 |
BRKT- SEATBOX RH SUPPORT - RED Price: $101.95 |
| 2 |
09674953 |
BRKT- SEATBOX LH SUPPORT Price: $101.95 |
| 3 |
05501114 |
SPCR, BRG .315X.500X.481X.281 Price: $0.95 |
| 4 |
05901802 |
BLT, HEX .31-18X1.00 G8 ZCC Price: $1.45 |
| 5 |
05902104 |
BLT- HEX .38-16 X 1.50 G8 ZCC Price: $3.45 |
| 6 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC Price: $1.45 |
| 7 |
06401106 |
WSHR, FLT .380X1.50X.125 ZCC Price: $3.45 |
| 8 |
06401138 |
WSHR, HDND 0.375X0.875X0.064 ZCC Price: $3.45 |
| 9 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC Price: $1.45 |
| 10 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 11 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 12 |
07000034 |
BLT,SHLDR EP .38-16X.30 HEX YZ Price: $3.45 |
| 13 |
07533600 |
BUMPER, RUBBER Price: $10.95 |
| 14 |
09675053 |
BRKT- SEATBOX ISOLATOR MTG Price: $128.45 |
| 15 |
09675151 |
BRACE- CROSS Price: $71.45 |
| 16 |
09675253 |
FOOTREST Price: $101.95 |
| 17 |
09697253 |
BRKT, SEATBOX TILT UP (RED) Price: $61.45 |
