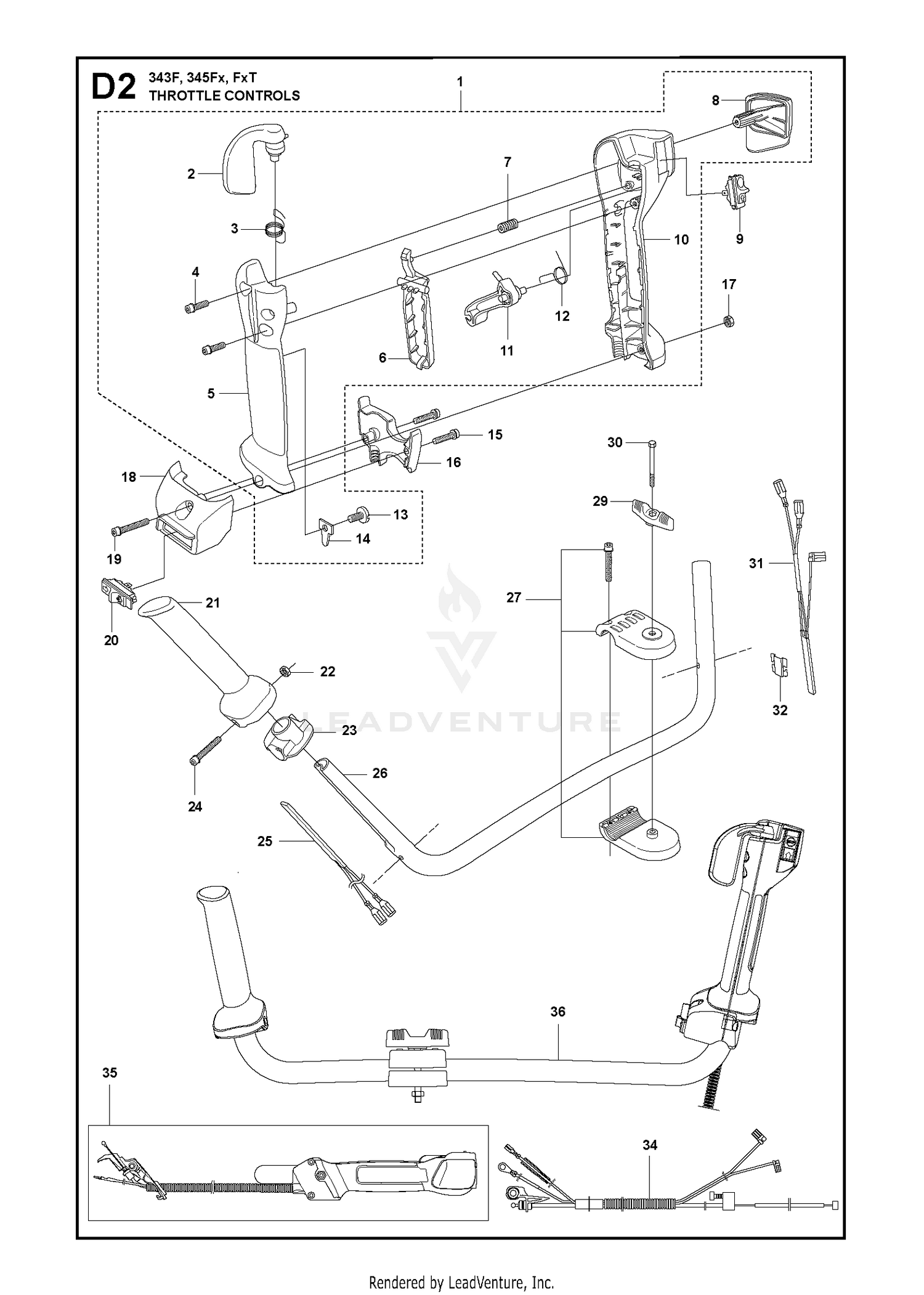

| Ref | Part Number | Description |
|---|
| 1 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 2 |
537263401 |
THROTTLE TRIGGER Price: $6.99 |
| 2 |
66-9070-01 |
LH GUARD WA This part replaces 66-9070. Price: $108.87 |
| 3 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 3 |
537353201 |
SPRING This part replaces 537283701. Price: $3.99 |
| 4 |
503217520 |
SCREW Price: $3.99 |
| 4 |
59-4440 |
AERATOR DECAL Price: $10.28 |
| 5 |
3296-45 |
NUT-HEX Price: $3.79 |
| 5 |
537197213 |
THROTTLE HANDLE This part replaces 537155301. Price: $59.99 |
| 6 |
537155601 |
THROTTLE LOCK Price: $5.99 |
| 6 |
82-8020 |
CLAMP Price: $43.84 |
| 7 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 7 |
537199701 |
SPRING Price: $3.99 |
| 8 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 8 |
537182401 |
COVER Price: $5.99 |
| 9 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 9 |
537419001 |
STOP BUTTON Price: $7.99 |
| 10 |
537197213 |
THROTTLE HANDLE This part replaces 537155201. Price: $59.99 |
| 10 |
61-9160 |
STUD Price: $24.91 |
| 11 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 11 |
537263501 |
LEVER Price: $6.99 |
| 12 |
537342701 |
SPRING Price: $3.99 |
| 13 |
503217010 |
SCREW Price: $3.99 |
| 13 |
80-2710 |
DISCONTINUED Price: Call Us |
| 14 |
22-6090 |
DISCONTINUED Price: Call Us |
| 14 |
537251101 |
HOLDER Price: $9.99 |
| 15 |
231-126 |
TIRE (13X5-6) 4-PLY RIBBED Price: $85.99 |
| 16 |
241-123 |
DISCONTINUED Price: Call Us |
| 17 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 17 |
731231405 |
NUT M6M M5 Price: $2.99 |
| 18 |
3220-7 |
NUT-JAM Price: $4.09 |
| 19 |
61-9780 |
CAP-HUB Price: $7.29 |
| 20 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 21 |
28-2480 |
WASHER-PLAIN Price: $3.99 |
| 21 |
537172805 |
HANDLE Price: $11.99 |
| 22 |
59-9650 |
END THRUST BEARING Price: $9.71 |
| 22 |
731231405 |
NUT M6M M5 Price: $2.99 |
| 23 |
252-105 |
ROLLER BEARING Price: $49.34 |
| 23 |
537172902 |
BRACKET Price: $4.99 |
| 24 |
503200245 |
SCREW Price: $3.99 |
| 24 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 25 |
321-4 |
SCREW-HH Price: $0.99 |
| 26 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 27 |
59-9460 |
GUIDE Price: $14.60 |
| 27 |
596283301 |
HANDLEBAR BRACKET KIT Price: $24.99 |
| 29 |
502203801 |
HANDLE Price: $5.99 |
| 30 |
725238281 |
SCREW EHHM This part replaces 725238285. Price: $3.99 |
| 30 |
94-6813 |
DISCONTINUED Price: Call Us |
| 31 |
59-2420 |
BUSHING (PLTD) Price: $20.75 |
| 32 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 33 |
59-2390-03 |
SPROCKET HUB ASM This part replaces 59-2390. Price: $155.24 |
| 34 |
251-297 |
BEARING-BALL Price: $18.54 |
| 35 |
59-9620-01 |
IDLER COVER This part replaces 59-9620. Price: $23.24 |
| 36 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 37 |
325-13 |
SCREW-HH Price: $3.57 |
| 38 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 39 |
59-9630 |
SPACER Price: $14.69 |
| 40 |
95-3111 |
CHAIN - ROLLER Price: $129.38 |
| 41 |
2710-16 |
LINK-CHAIN Price: $7.23 |
| 42 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 43 |
59-4040 |
DISCONTINUED Price: Call Us |
| 44 |
254-105 |
ROLLER BRG Price: $37.20 |
| 45 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 46 |
59-2380 |
DUST CAP Price: $12.06 |
| 47 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 48 |
93-0177 |
SHAFT - AXLE Price: $234.14 |
| 49 |
253-158 |
DISCONTINUED Price: Call Us |
| 50 |
59-3280-01 |
RH GUARD WA This part replaces 59-3280. Price: $100.29 |
| 51 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 52 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 53 |
59-2430 |
DISCONTINUED Price: Call Us |
| 54 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 60 |
5-2490 |
SCREW-SHOULDER Price: $8.25 |
| 61 |
3-3287 |
SPACER Price: $3.69 |
| 62 |
66-4530 |
DISCONTINUED Price: Call Us |
| 63 |
94-3442-01 |
FRAME WA This part replaces 94-3442. Price: $4,040.76 |
| 64 |
217-60 |
RIM Price: $110.16 |
| 65 |
145-7521 |
TIRE-RIB, 4PLY (18 X 9.5-8) This part replaces 231-119. Price: $90.49 |
| 66 |
2710-20 |
LINK-OFFSET Price: $10.06 |
| 67 |
60-9930-01 |
FRAME GAUGE B This part replaces 60-9930. Price: $8.41 |
| 68 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
