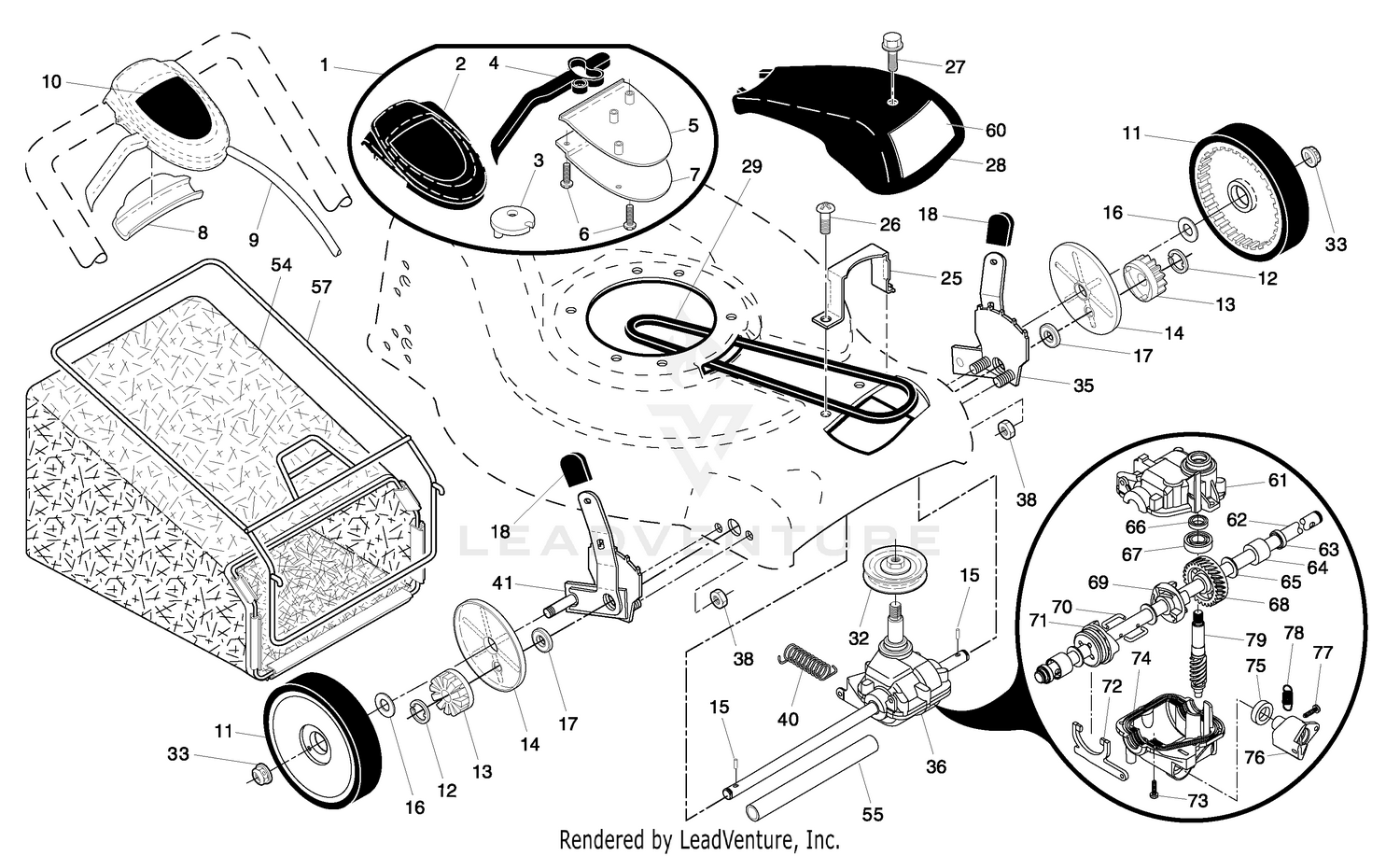

| Ref | Part Number | Description |
|---|
| 1 |
532196270 |
CONTROL.DR.EZ.FWGD.SHORT.GY/BL Price: $54.99 |
| 2 |
532406260 |
COVER TOP AUTO WALK CONTROL This part replaces 532411673. Price: $12.99 |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
532406261 |
COVER BOTTOM AUTO WLK CONTROL This part replaces 532411664. Price: $12.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 8 |
532186297 |
EZ WALK SNAP COVER PLATE Price: $5.99 |
| 9 |
532196270 |
CONTROL.DR.EZ.FWGD.SHORT.GY/BL Price: $54.99 |
| 10 |
532189378 |
DECAL, DRIVE Price: $29.99 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
532404845 |
PAWL, DRIVE This part replaces 532191017. Price: $4.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 18 |
532185574 |
SELECTOR KNOB Price: $5.99 |
| 25 |
532199089 |
KEEPER.BELT.21.EZ.FWGD Price: $3.99 |
| 26 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
532432664 |
COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99 |
| 29 |
532196853 |
BELT.DRIVE.FGD. Price: $17.99 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 36 |
532188296 |
TRANSMISSION.21RD Price: $89.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 40 |
532192849 |
SPRING RETURN Price: $4.99 |
| 54 |
580953406 |
GBAG.34710090.H-GREY MS498 This part replaces 532401190. Price: $54.99 |
| 55 |
532175739 |
DRIVESHAFT COVER Price: $2.94 |
| 57 |
532411950 |
FRAME.GBAG.21.FWGD This part replaces 532401802. Price: $64.99 |
| 60 |
532193557 |
DECAL DRIVE COVER Price: $7.99 |
| 61 |
532196886 |
GEARCASE.HOUSING Price: $12.99 |
| 62 |
532196885 |
SHAFT.OUTPUT Price: $44.99 |
| 63 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 64 |
532183511 |
BUSHING Price: $4.99 |
| 65 |
532183509 |
WASHER Price: $3.99 |
| 66 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 67 |
532183506 |
BEARING Price: $5.99 |
| 68 |
532183499 |
GEAR.27.TEETH.WALK.MOWER Price: $14.99 |
| 69 |
532196884 |
CLUTCH Price: $3.99 |
| 70 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 71 |
532196883 |
CLUTCH Price: $4.99 |
| 72 |
532196882 |
FORK Price: $5.99 |
| 73 |
532183513 |
SCREW Price: $3.99 |
| 74 |
532196881 |
GEARCASE.HOUSING.LOWER Price: $12.99 |
| 75 |
532196880 |
SEAL Price: $4.99 |
| 76 |
532196879 |
LEVER Price: $5.99 |
| 77 |
532196878 |
SCREW.LEVER. Price: $6.99 |
| 78 |
532196877 |
SPRING. Price: $4.99 |
| 91 |
807919 |
Body-Carburetor, Upper Price: Call Us |
| 95 |
805538 |
Screw Price: Call Us |
| 98 |
808177 |
Idle Speed Kit Price: Call Us |
| 103 |
805546 |
FIoatAssembly Price: Call Us |
| 108 |
805539 |
Choke Valve Price: Call Us |
| 117 |
805852 |
Jet-Main Price: Call Us |
| 119 |
805540 |
Screw Price: Call Us |
| 125 |
808251 |
Carburetor Assembly Price: Call Us |
| 130 |
805554 |
Throttle Valve Price: Call Us |
| 131 |
807720 |
Shaft-Throttle Price: Call Us |
| 141 |
807722 |
Shaft-Choke Price: Call Us |
| 187 |
296004 |
Fuel-Hose Price: Call Us |
| 307 |
805025 |
Screw Price: Call Us |
| 387 |
491922 |
Pump-Fuel Price: Call Us |
| 601 |
93053 |
Clamp-Hose Price: Call Us |
| 788 |
807685 |
Bracket-Pump Price: Call Us |
| 823 |
805317 |
Screw-HFH Price: Call Us |
| 918 |
393815 |
Line-Vacuum Price: Call Us |
| 947 |
807664 |
Solenoid Price: Call Us |
