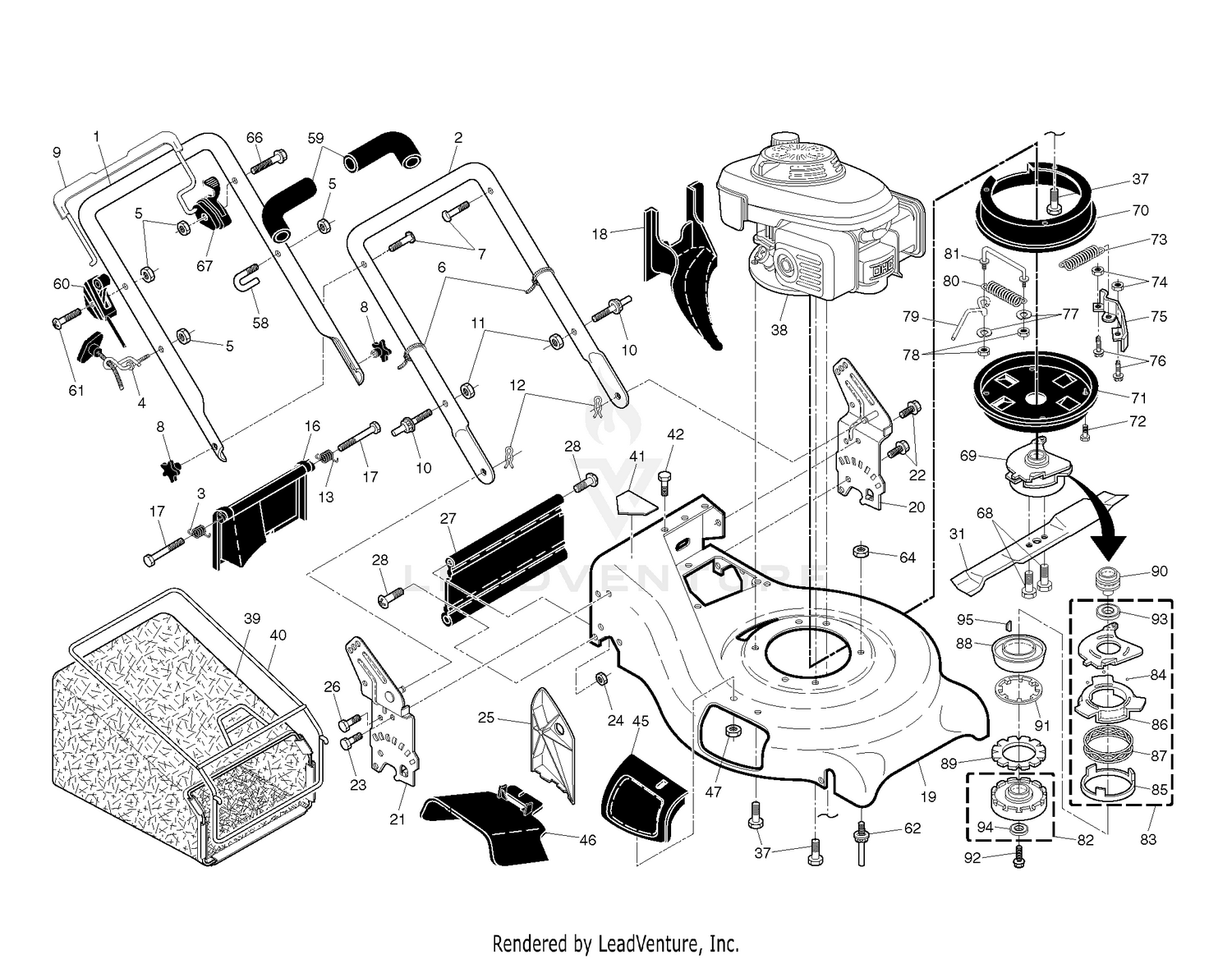

| Ref | Part Number | Description |
|---|
| 1 |
532186296 |
HANDLE.ASM.UPPER.W/GRIP Price: $44.99 |
| 2 |
532197202 |
HANDLE.LOWER.21.GREY Price: $19.99 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 7 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 8 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 9 |
583754701 |
BAIL.CONTROL.HV.BBC.BLACK This part replaces 532426813. Price: $34.99 |
| 10 |
532188821 |
BOLT Price: $4.99 |
| 11 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 16 |
532401815 |
DOOR.REAR.21.RWGD This part replaces 532408888. Price: $14.99 |
| 17 |
532184193 |
BOLT Price: $4.99 |
| 18 |
532198170 |
PLUG.MULCHER.RGD.21. Price: $32.99 |
| 19 |
532410871 |
HOUSING.21.RWD.MC.MS.EZ/ORANGE Price: $114.99 |
| 22 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 23 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 24 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 25 |
532161333 |
CLIPPING DEFLECTOR Price: $9.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
532408442 |
SKIRT.REAR.21.RWGD.BLACK(2 2M) Price: $8.99 |
| 28 |
532088652 |
HINGE SCREW Price: $3.99 |
| 31 |
532180459 |
BLADE.21".BBC Price: $22.99 |
| 37 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 39 |
581002901 |
GBAG.93230010.BLK.GEN This part replaces 532425667. Price: $38.99 |
| 40 |
532411951 |
FRAME.GBAG.21.RWGD.SC Price: $59.99 |
| 41 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 42 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 45 |
532183058 |
DOOR.ASM.MULCH.21.RWD This part replaces 532190510. Price: $99.99 |
| 46 |
532169699 |
DEFLECTOR.21.MCUT.RWGD.GRAY This part replaces 532190512. Price: $8.99 |
| 47 |
532088349 |
NUT Price: $3.99 |
| 58 |
532182003 |
CLIP Price: $5.99 |
| 59 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 60 |
532190878 |
CONTROL.THROTTLE.HONDA.BBC Price: $44.99 |
| 61 |
532183365 |
SCREW Price: $4.99 |
| 62 |
532182131 |
STUC.GUIDE.BELT.RWGD Price: $14.99 |
| 64 |
596219001 |
Nuts This part replaces 532197033. Price: $1.99 |
| 66 |
532189937 |
SCREW Price: $3.99 |
| 67 |
532196541 |
CONTROL.BBC.HV.GRY/ORG Price: $49.99 |
| 68 |
532180460 |
BOLT.BLADE Price: $4.99 |
| 72 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 73 |
532180393 |
SPRING.BBC Price: $4.99 |
| 74 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 75 |
532188525 |
CLUTCH/BRAKE.BZP This part replaces 532190929. Price: $3.99 |
| 76 |
596582501 |
Bolts This part replaces 874780410. Price: $2.99 |
| 77 |
532053998 |
WASHER Price: $3.71 |
| 78 |
873510600 |
NUT Price: $4.99 |
| 79 |
532188545 |
BELT KEEPER Price: $9.99 |
| 80 |
532180394 |
SPRING.LINK.BBC Price: $2.99 |
| 81 |
532180188 |
LINK.TORQUE.BBC Price: $12.99 |
| 82 |
532195049 |
HOLDER.ASM.BLADE.HONDA. Price: $129.99 |
| 83 |
532195072 |
BALL.CONTROL.PLATE.ASSY.BBC.MO Price: $49.99 |
| 84 |
532195053 |
BALL.STEEL Price: $22.99 |
| 85 |
532195073 |
PLATE.SPRING.HOOK Price: $27.40 |
| 86 |
532195074 |
PLATE.BRAKE Price: $37.99 |
| 87 |
532195057 |
SPRING BALL PLATE Price: $29.31 |
| 88 |
532195060 |
DISC.DRIVE Price: $39.09 |
| 89 |
532195063 |
DISK.DRIVEN Price: $129.99 |
| 90 |
532195064 |
PULLEY.DRIVE.HONDA. Price: $74.99 |
| 91 |
532195065 |
SPRING.CLUTCH.HONDA. Price: $24.99 |
| 92 |
532195067 |
BOLT.FLANGE Price: $4.95 |
| 93 |
532195068 |
BEARING.RADIAL BALL#6006 Price: $79.99 |
| 94 |
532195069 |
BEARING RAD. BALL#6204 Price: $44.99 |
| 95 |
532195070 |
KEY.WOODRUFF.16X15.HONDA Price: $6.99 |
| 581579101 |
DECAL.CUTFINGER.CE.02 |
This part replaces 532404764. Price: $3.99 581579101 |
