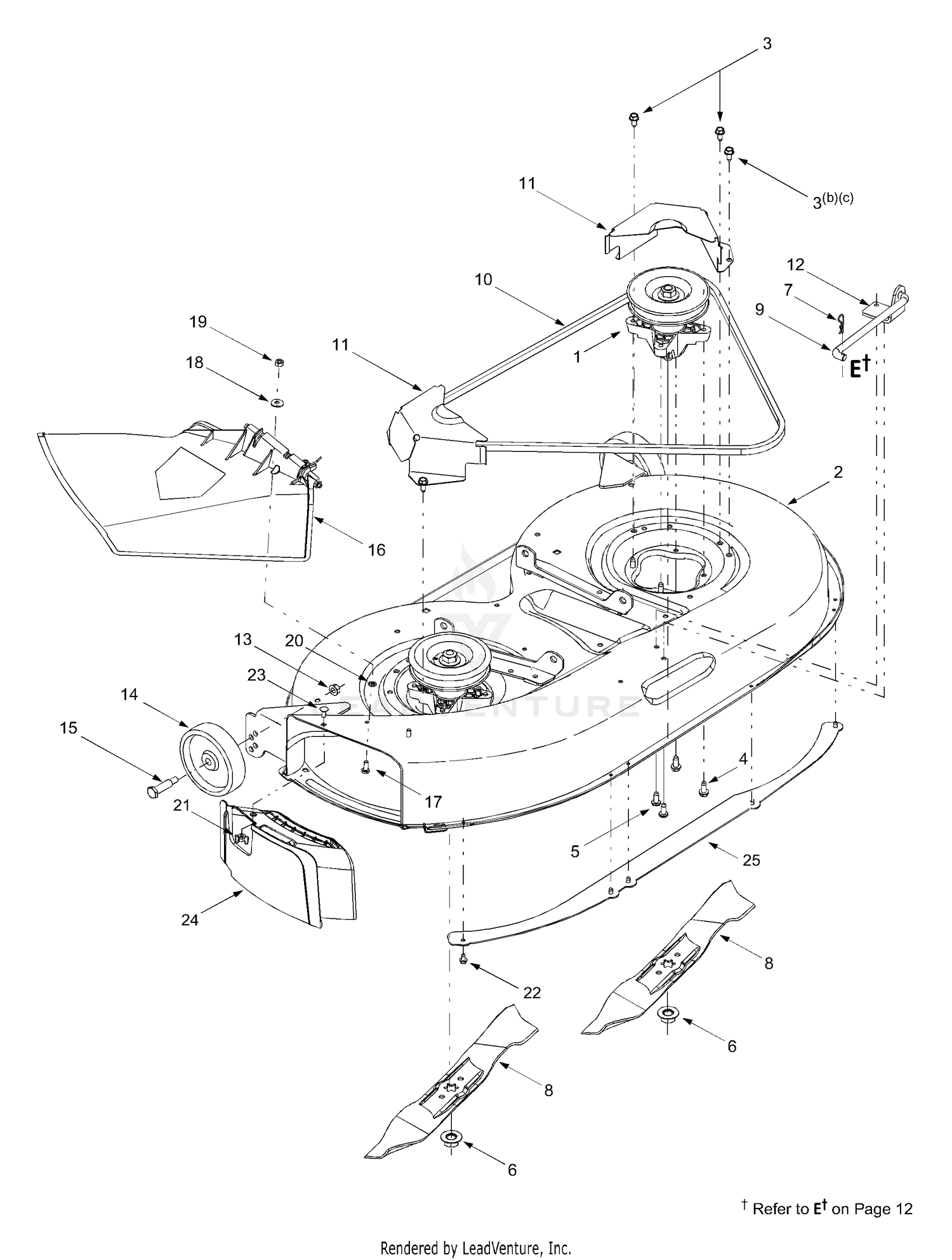

| Ref | Part Number | Description |
|---|
| 3 |
710-0726 |
Self-tapping Screw, 5/16-12 x .75 Price: $3.82 |
| 4 |
710-1260A |
Screw, 5/16-18 x .75 Price: $3.34 |
| 5 |
710-1611B |
Self-tapping Screw, 5/16-18 x .75 Price: $5.94 |
| 6 |
712-0417A |
HEX NUT Price: $6.50 |
| 7 |
714-04023 |
Internal Cotter Pin, .080 x 1.56 Price: $3.90 |
| 9 |
947-04018A |
HANGAR DECK LINK Not Available This part replaces 747-04018. Price: |
| 12 |
783-04211-0637 |
Anti-sway Stabilizer Bracket This part replaces 783-04211. Price: $13.00 |
| 16 |
631-05229 |
CHUTE ASSEMBLY This part replaces 7311032. Price: $71.37 |
| 17 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 18 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 19 |
712-3006 |
HEX NUT Price: $4.05 |
| 20 |
726-0233 |
Push Nut, 1/4 Price: $3.93 |
| 21 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 22 |
710-0599 |
Self-tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 23 |
710-0134 |
Carriage Screw, , 1/4-20 x .62 Price: $3.71 |
| 24 |
731-2363 |
Mulch Plug Price: $25.67 |
