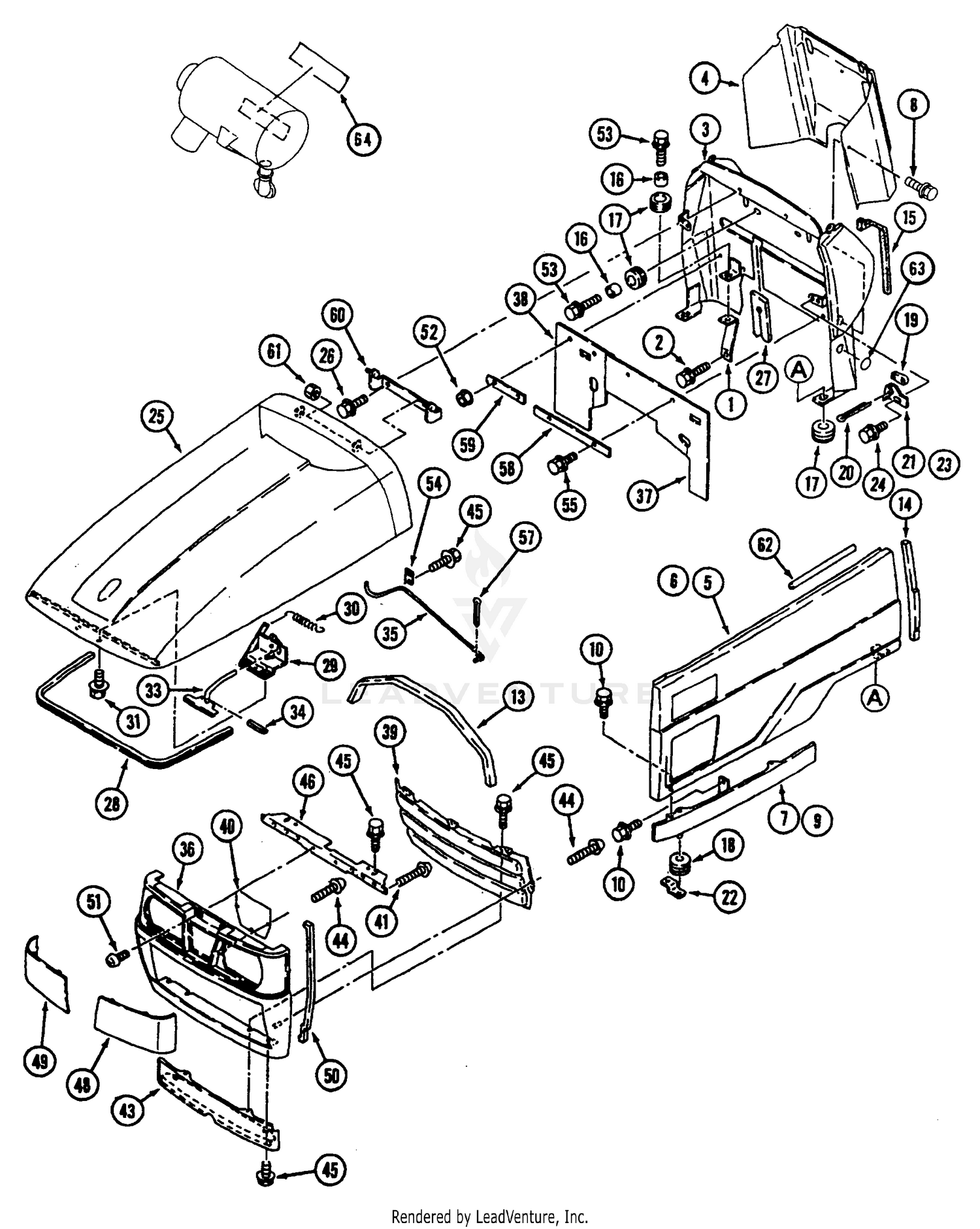

| Ref | Part Number | Description |
|---|
| 1 |
MA-19642613000 |
BRACKET Not Available Price: |
| 2 |
MA-H1540108020 |
BOLT,W/WASHER Not Available Price: |
| 4 |
MA-19682616001 |
COVER-PANEL Not Available Price: |
| 5 |
MA-19682618BC0 |
COVER SIDE L/H 13 Not Available Price: |
| 6 |
MA-19682619BC0 |
COVER SIDE R/H 13 Not Available Price: |
| 7 |
MA-19642621AG0 |
COVER,SIDE LO L Not Available Price: |
| 8 |
MA-H1940106016 |
BOLT Not Available This part replaces MA-H1640406016. Price: |
| 9 |
MA-19642622AG0 |
COVER,SIDE LO R Not Available Price: |
| 10 |
MA-H1540108016 |
BOLT,W/WASHER Not Available Price: |
| 13 |
MA-10382631000 |
CUSHION Not Available Price: |
| 14 |
MA-19632623000 |
CUSHION Not Available Price: |
| 15 |
MA-19832612000 |
CUSHION Not Available This part replaces MA-10192598300. Price: |
| 16 |
MA-67700-26000 |
COLLAR Not Available Price: |
| 17 |
MA-11930439000 |
GROMMET Not Available Price: |
| 18 |
MA-11740217001 |
GROMMET Not Available Price: |
| 19 |
MA-10322629001 |
Hook Price: $12.14 |
| 20 |
MA-05200130032 |
COTTER PIN Not Available Price: |
| 21 |
MA-10322631000 |
Bracket A Price: $11.80 |
| 22 |
MA-19632621AG0 |
BRACKET Not Available Price: |
| 23 |
MA-10322632000 |
BRACKET B Not Available Price: |
| 24 |
MA-H1540108016 |
BOLT,W/WASHER Not Available Price: |
| 25 |
MA-19682632BC0 |
HOOD Not Available Price: |
| 26 |
MA-H1840108020 |
BOLT Not Available Price: |
| 27 |
MA-19632615000 |
CUSHION Not Available Price: |
| 28 |
102601501 |
Drive ClutchFixed Sheave Tool Price: Call Us |
| 28 |
MA-19632634000 |
CUSHION Not Available Price: |
| 29 |
MA-19632636000 |
BRACKET,LEVER Not Available Price: |
| 30 |
MA-19740722000 |
SPRING Not Available Price: |
| 31 |
MA-H1540108016 |
BOLT,W/WASHER Not Available Price: |
| 33 |
101831801 |
Communication Display Module Price: Call Us |
| 33 |
MA-19632637BC0 |
LEVER Not Available Price: |
| 34 |
101641002 |
Compression Gauge and Adapter Price: Call Us |
| 34 |
MA-05500003032 |
SPRING PIN Not Available Price: |
| 35 |
1011273 |
Continuity Tester Price: Call Us |
| 35 |
MA-19632642000 |
ROD STOPPER Not Available Price: |
| 36 |
102773801 |
Cutter, Valve Seat, #122 Price: Call Us |
| 36 |
MA-19672645000 |
GRILL Not Available Price: |
| 37 |
102773901 |
Cutter, Valve Seat #115 Price: Call Us |
| 37 |
MA-19642612000 |
COVER Not Available Price: |
| 38 |
102774101 |
Wrench, T, #505 Price: Call Us |
| 38 |
MA-19642612100 |
COVER Not Available Price: |
| 39 |
102774101 |
Adapter, T-Wrench Price: Call Us |
| 39 |
MA-19672646AG0 |
Screen Price: $254.25 |
| 40 |
MA-19672647AG0 |
SCREEN 12 Not Available Price: |
| 41 |
102774201 |
Pilot, 6.6 MM Price: Call Us |
| 41 |
MA-10212626000 |
SCREW TAPPING Not Available Price: |
| 42 |
102774301 |
Pilot, 6.62 MM Price: Call Us |
| 43 |
MA-19642646AG0 |
COVER,FRONT LOW Not Available Price: |
| 44 |
MA-04322105010 |
SCREW Not Available Price: |
| 45 |
MA-H1440106016 |
Bolt Price: $2.83 |
| 46 |
MA-19632651BC1 |
SUPPORT-GRILLE Not Available This part replaces MA-19632651BC0. Price: |
| 48 |
MA-19632655000 |
COVER LAMP L Not Available Price: |
| 49 |
MA-19632656000 |
COVER LAMP R Not Available Price: |
| 50 |
MA-37357619700 |
SEAL Not Available Price: |
| 51 |
MA-A2520706012 |
SCREW Not Available Price: |
| 52 |
MA-F3010108001 |
NUT Not Available Price: |
| 53 |
MA-H1540108025 |
BOLT,W/WASHER Not Available Price: |
| 54 |
MA-11910414000 |
CLIP Not Available Price: |
| 55 |
MA-H1440106012 |
BOLT,W/WASHER Not Available Price: |
| 57 |
MA-05200125015 |
COTTER PIN Not Available This part replaces MA-05200125016. Price: |
| 58 |
MA-19632616000 |
PLATE Not Available Price: |
| 59 |
MA-19632617000 |
PLATE Not Available Price: |
| 60 |
MA-19632641000 |
BRACKET HOOD Not Available Price: |
| 61 |
MA-A3810108000 |
NUT Not Available Price: |
| 62 |
MA-MA911822000 |
CUSHION-RU Not Available Price: |
| 63 |
MA-19672621000 |
MARK Not Available Price: |
