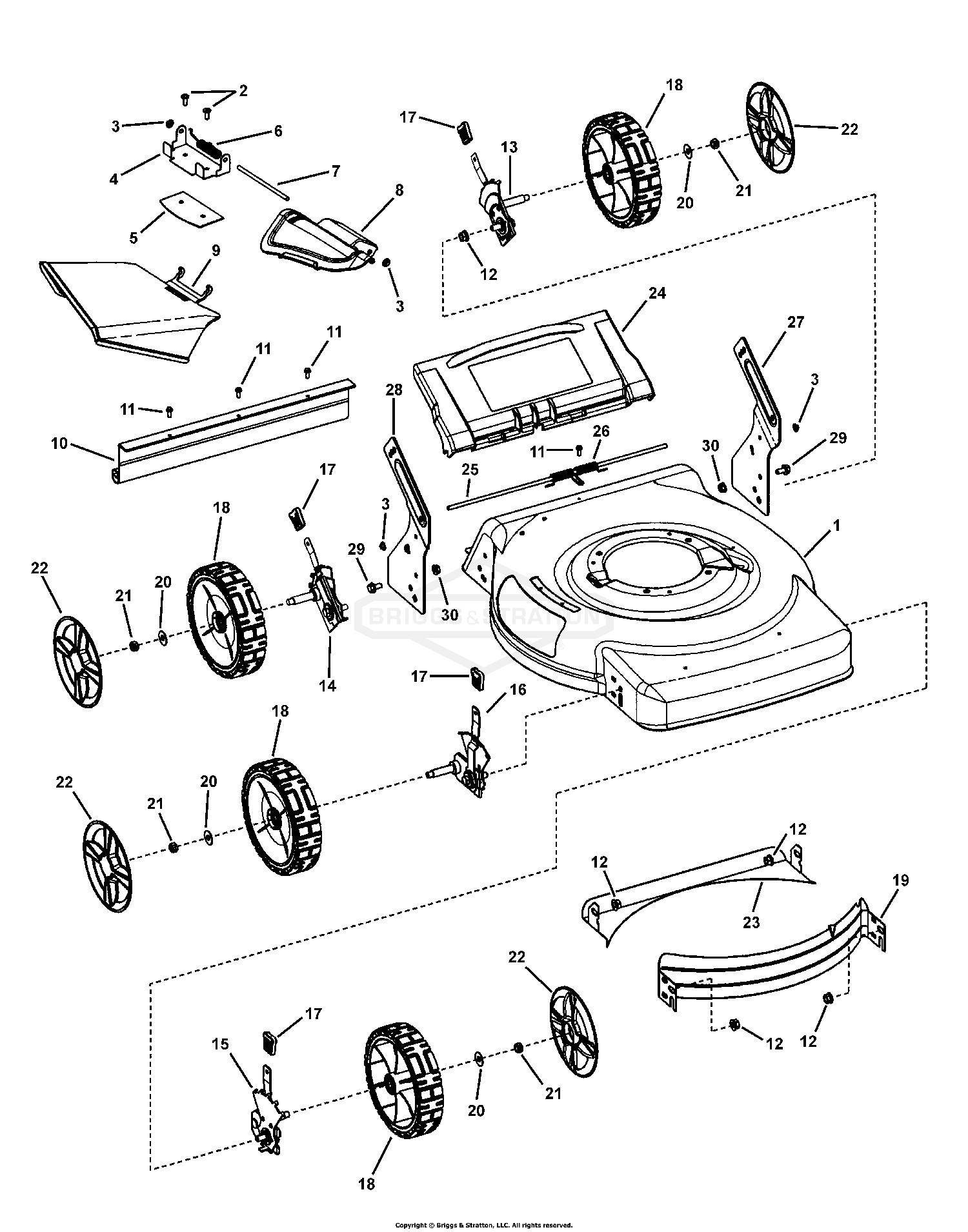

| Ref | Part Number | Description |
|---|
| 1 |
7300401ZYP |
DECK, 22" WALK This part replaces 7300401D. Price: $241.14 |
| 2 |
703961 |
SCREW, 1/4-20 X .625, Self-Tapping, Zinc/Clear This part replaces 722848. Price: $3.61 |
| 3 |
704005 |
PUSHNUT, CAP, 1/4 This part replaces 7091020. Price: $3.82 |
| 4 |
7300855DYP |
BRACKET, CHUTE This part replaces 7300855D. Price: $6.09 |
| 5 |
7300856DYP |
PLATE, MULCH This part replaces 7300856D. Price: $4.89 |
| 6 |
166X38MA |
SPRING, Torsion, Side Chute This part replaces 722507. Price: $4.16 |
| 7 |
7101067YP |
ROD, Pivot This part replaces 7101067. Price: $5.87 |
| 8 |
1101098MA |
Cover, Mulch (Black) This part replaces 721682. Price: $28.99 |
| 9 |
1101097MA |
Deflector, Chute (Black) This part replaces 721681. Price: $35.63 |
| 10 |
7103347YP |
GUARD, Rear, 22" Mower Deck This part replaces 721685. Price: $12.20 |
| 11 |
7091286YP |
HWST, 10-24X.50 SEMS This part replaces 7091286. Price: $4.05 |
| 13 |
7501055YP |
ASSY,HOC,LT,22 WBM This part replaces 7501055. Price: $22.85 |
| 14 |
7501056YP |
ASSY,HOC,RT,22 WBM This part replaces 7501056. Price: $35.99 |
| 15 |
7501294YP |
HOC ASSY, LF, 22 WBM This part replaces 7501294. Price: $31.70 |
| 16 |
7501293YP |
HOC ASSY, RF, 22 WBM This part replaces 7501293. Price: $33.69 |
| 17 |
7103793YP |
GRIP, HT LATCH, BLACK This part replaces 7100633. Price: $3.73 |
| 19 |
7300440BMYP |
BAFFLE, FRONT 22" This part replaces 7300440D. Price: $124.54 |
| 20 |
722604 |
WASHER, 1" O.D. x .387 I.D. Flat Price: Call Us |
| 21 |
703347 |
NUT, 3/8-16 This part replaces 7091585. Price: $4.26 |
| 22 |
7101350YP |
HUBCAP, 8” & 9” Spoked Wheel, 6.51” OD, Gray This part replaces 7101350. Price: $9.53 |
| 23 |
7300854DYP |
BAFFLE, REAR, 22 DEC This part replaces 7300854D. Price: $37.97 |
| 24 |
7101243YP |
DOOR, REAR DISCHARGE, 22 WALK MOWER This part replaces 7101243. Price: $44.93 |
| 25 |
7101070YP |
ROD, Pivot, Rear Door (1/4" Dia. X 17-1/2") This part replaces 7101070. Price: $5.55 |
| 26 |
7101461YP |
SPRING, TORSION, REAR DOOR, 22 WBM This part replaces 7101461. Price: $5.77 |
| 27 |
7300668AYP |
BRACKET, Lower Handle, LH, 22" WBM This part replaces 7300668BH. Price: $27.49 |
| 28 |
7300669AYP |
BRACKET, Lower Handle, RH, 22" WBM This part replaces 7300669BH. Price: $27.49 |
