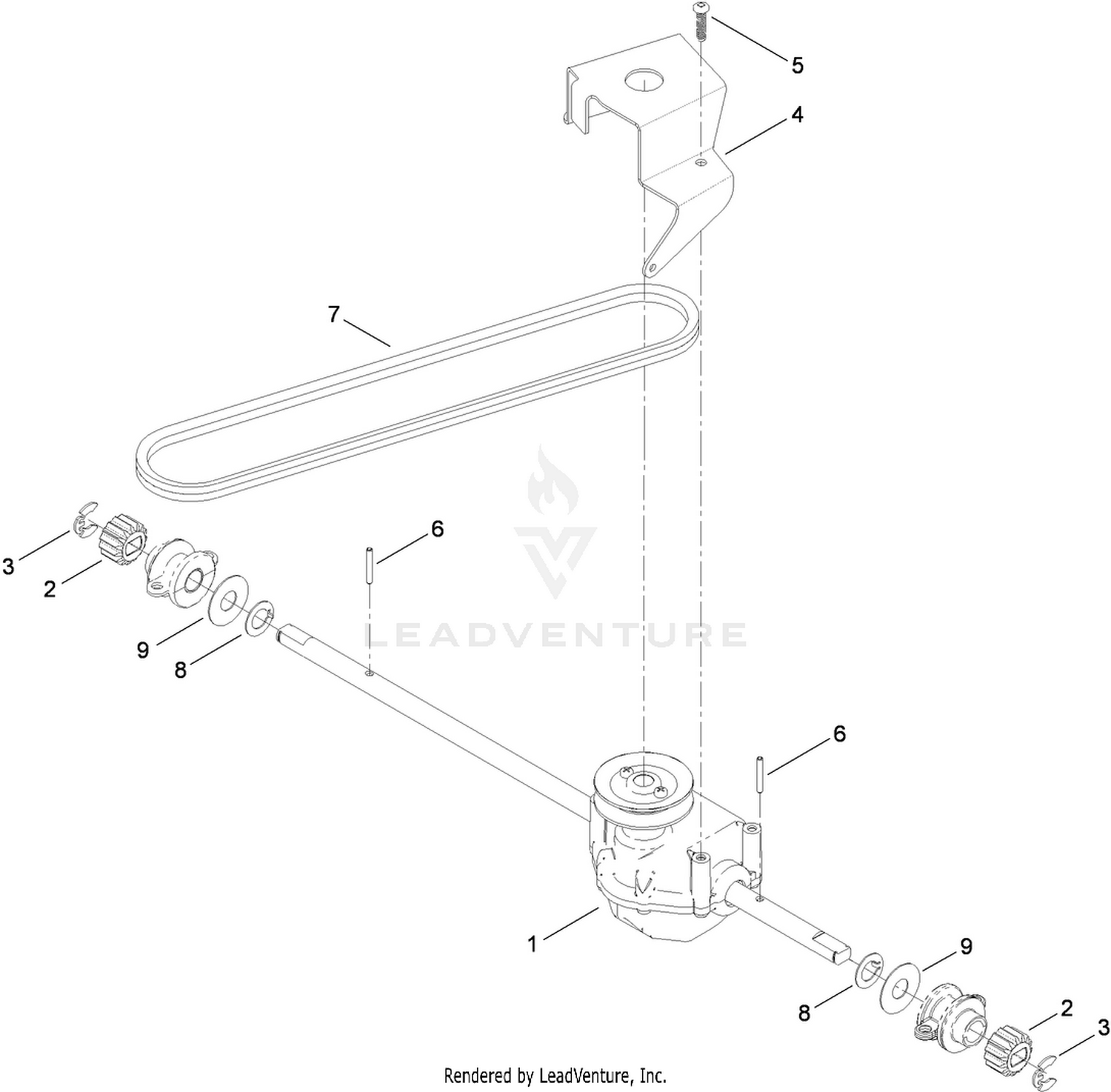

Transmission and Belt Assembly
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-4086 | TRANSMISSION-GEARBOX Price: $124.99 |
| 2 | 131-5399 | GEAR-PINION, 15T This part replaces 110-9417. Price: $4.79 |
| 3 | 65-2720 | RING-RETAINING,CLIP Price: $0.99 |
| 4 | 114-7977-03 | BRACKET-TRANSMISSION Price: $12.99 |
| 5 | 108-7476 | SCREW-PLASTITE Price: $0.79 |
| 6 | 110-7192 | PIN-ROLL Price: Call Us |
| 7 | 110-9429 | V-BELT Price: $15.99 |
| 8 | 112-3911 | WASHER-THRUST, KEYED Price: $14.99 |
