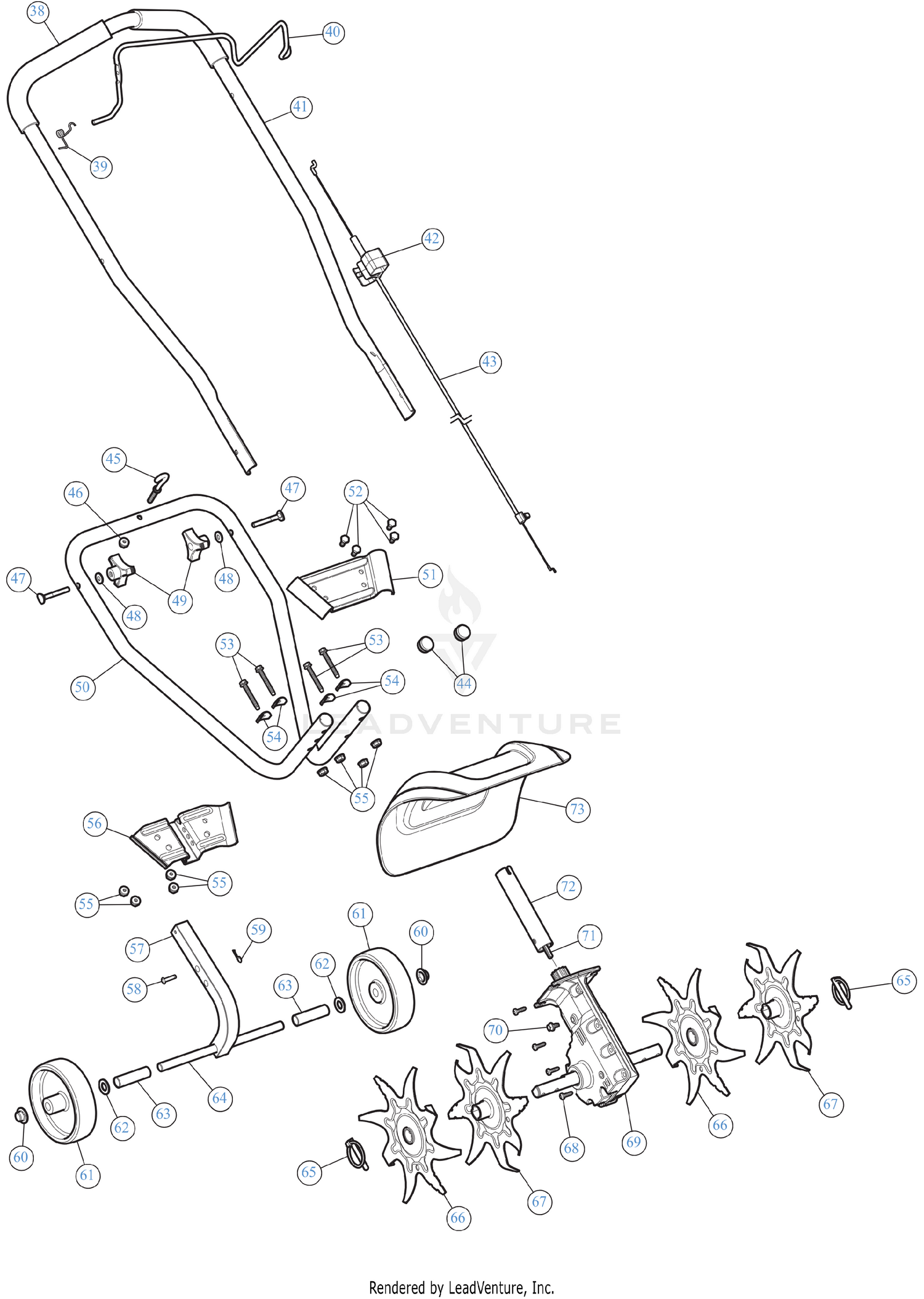

General Assembly — Parts Catalog

Ref	Part Number	Description
38	720-0294A	FOAM GRIP - 9" Price: $6.41
39	753-05940	TORSION SPRING Price: $3.21
40	753-06808	BAIL CONTROL Price: $6.84
41	753-06319	HANDLE UPR Not Available Price:
42	791-182405	SW, MOMENTARY ON/O Price: $9.29
43	753-06831	THROTTLE CABLE Price: $10.27
44	735-04246	CAP Price: $2.63
45	10591	ROPE GUIDE Price: $6.42
46	712-04064	FLANGE LOCK NUT Price: $3.64
47	791-182899	BOLT, CARRIAGE CRV Price: $6.82
48	736-0451	Saddle Wash. .32" I.D. This part replaces 936-0451. Price: $3.75
49	791-182677	KNOB, 3-PRONG ¼ "- Price: $12.48
50	753-06809	HANDLE LOWER Price: $21.71
51	753-06813	BRACKET UPR Price: $3.90
52	710-3013	SCREW 1/4-20X.5 GR5 Price: $4.02
53	710-1026	SCREW 1/4-20 x 1.750 Price: $5.94
54	736-0451	Saddle Wash. .32" I.D. This part replaces 936-0451. Price: $3.75
55	912-3027	LOCK NUT 1/4 Price: $3.85
56	753-06814	BRACKET LOWER Price: $4.20
57	753-06817	TUBE SQUARE Price: $10.27
58	714-04106	CLEVIS PIN Price: $2.83
59	714-0104	COTTER PIN .072 DIA Price: $3.90
60	726-0299	PUSH CAP Price: $7.03
62	791-182910	WASHER Price: $6.59
63	753-06815	SPACER Price: $2.83
64	753-06816	AXLE Price: $4.80
65	753-05985	CLICK PIN Not Available Price:
68	791-182195	SCREW #10-24X11/16 T-25 Price: $6.20
70	710-0599	SCREW 1/4-20 X.500 Price: $3.86
71	753-04499	SHAFT-FLEX Price: $26.32
