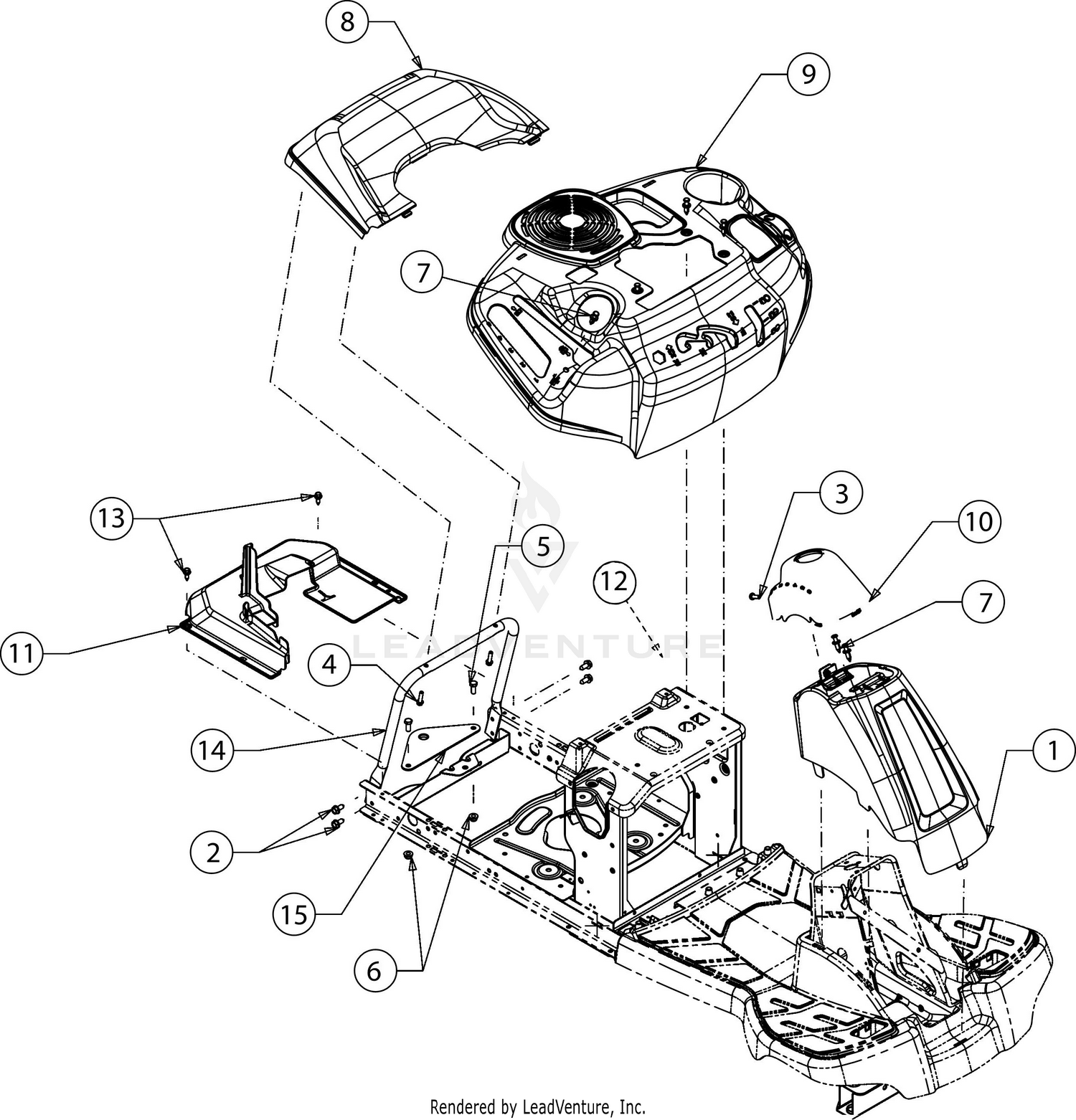

| Ref | Part Number | Description |
|---|
| 1 |
631-05038 |
COLUMN COVER ASSEMBLY (MTD RED) Price: $29.83 |
| 2 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 3 |
710-0924 |
SCREW 1/4-20X.75 Price: $4.02 |
| 4 |
710-1241 |
SCREW 1/4-15 x 1.00 Price: $5.77 |
| 5 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 7 |
728-0199 |
PLASTIC RIVET Price: $4.08 |
| 8 |
731-08620A |
REAR COVER Price: $29.37 |
| 9 |
931-08708B |
FENDER (W/RMC) This part replaces 931-08708A. Price: $75.62 |
| 10 |
731-09382 |
COLUMN STEERING CAP Price: $13.05 |
| 11 |
731-10504 |
DRIVE OVER REAR Price: $44.68 |
| 12 |
735-05006 |
BUMPER .62 DIA x .50 Price: $3.70 |
| 13 |
738-04184A |
SHOULDER SCREW Price: $5.99 |
| 14 |
749-04932-0637 |
REAR SUPPORT TUBE Price: $29.83 |
