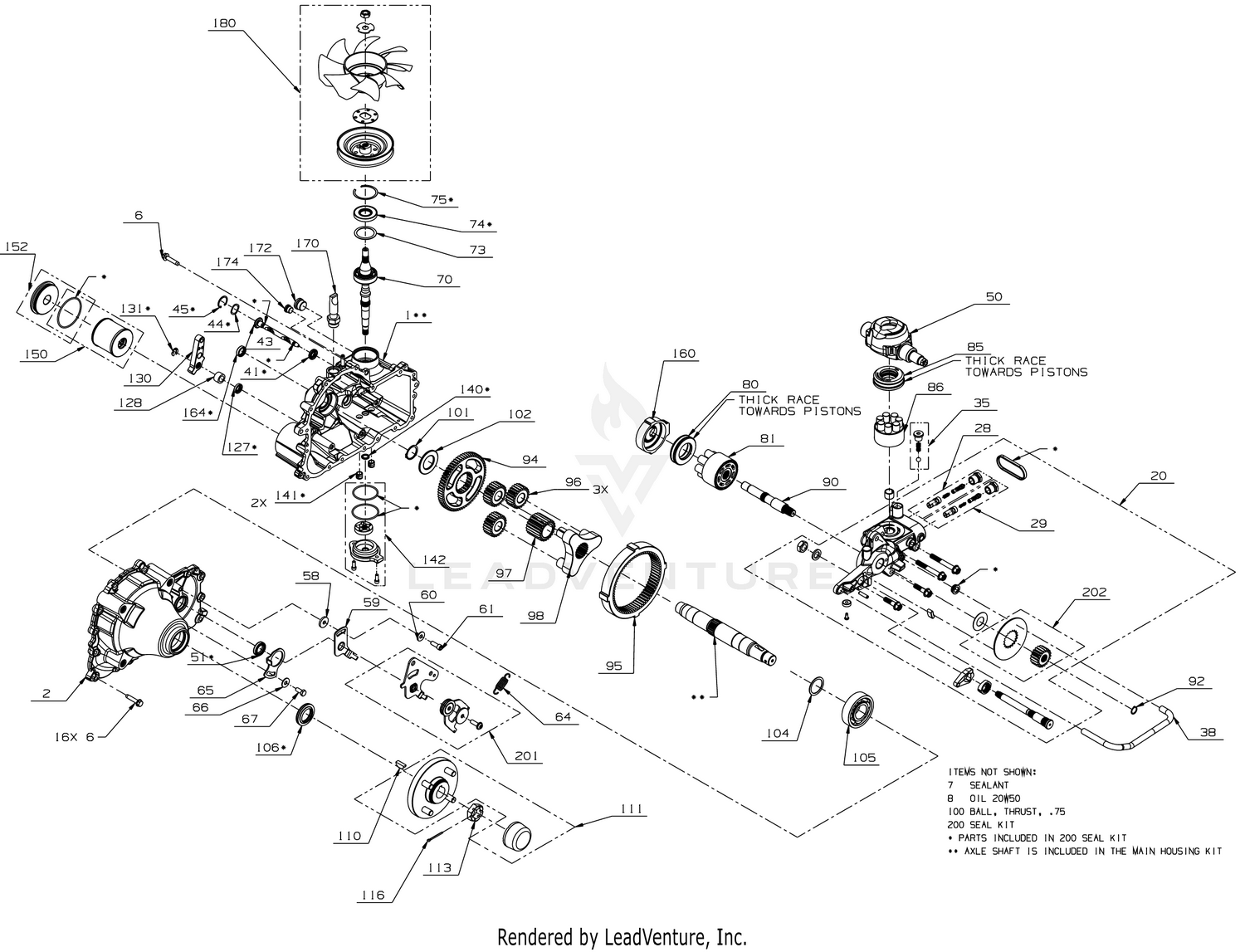

| Ref | Part Number | Description |
|---|
| 2 |
HG-71949 |
SIDE HOUSING (RH) KIT Price: $326.35 |
| 6 |
HG-53987 |
HOUSING SCREW Price: $1.48 |
| 7 |
HG-50928 |
SEALANT-HOUSING Price: $91.12 |
| 8 |
N/A |
OIL, 20W50 |
| 20 |
HG-71996 |
CENTER SECTION (RH) KIT Price: $332.78 |
| 28 |
HG-71952 |
SHOCK VALVE KIT Price: $35.53 |
| 29 |
HG-71952 |
SHOCK VALVE KIT Price: $35.53 |
| 35 |
HG-71999 |
CHARGE RELIEF KIT Price: $10.30 |
| 38 |
HG-52983 |
FILTER TUBE-RH Price: $17.04 |
| 43 |
HG-54335 |
ACTUATOR BYPASS ASM Price: $14.13 |
| 58 |
HG-54315 |
SPACER .32 x 1.005 x .179 Price: $2.30 |
| 59 |
HG-51945 |
ARM-NEUTRAL (RH) Price: $12.25 |
| 60 |
736-0371 |
Fl-Wash. .344" I.D. x .875" O.D. This part replaces HG-44130. Price: $3.94 |
| 61 |
HG-71341 |
KIT, RTN SCREWS This part replaces HG-51616. Price: $7.94 |
| 64 |
HG-51605 |
EXTENSION SPRING Price: $19.24 |
| 65 |
HG-53189 |
STOP PLATE-RH Price: $5.61 |
| 66 |
736-0371 |
Fl-Wash. .344" I.D. x .875" O.D. This part replaces HG-44130. Price: $3.94 |
| 67 |
HG-56170 |
SCREW 5/16-18.75 HHCS Price: $1.57 |
| 70 |
HG-71941 |
INPUT SHAFT KIT Price: $72.59 |
| 73 |
HG-51279 |
FLAT WASHER 1.559X1.944X.040 Price: $2.30 |
| 80 |
HG-53341 |
PLASTIC THRUST BEARING Price: $30.49 |
| 81 |
HG-72159 |
BLOCK KIT-21CC CYL Price: $87.06 |
| 85 |
HG-52991 |
THRUST BEARING Price: $29.49 |
| 90 |
HG-52992 |
MOTOR SHAFT Price: $50.80 |
| 92 |
HG-44145 |
RETAINING RING Price: $3.68 |
| 95 |
HG-53988 |
RING GEAR 68T Price: $84.72 |
| 96 |
HG-54483 |
GEAR 23T Price: $15.84 |
| 97 |
HG-53000 |
GEAR 22T Price: $28.62 |
| 98 |
HG-53001 |
CARRIER Price: $59.94 |
| 100 |
HG-53002 |
BALL-.75 Price: $1.55 |
| 101 |
HG-53003 |
RETAINING RING Price: $1.51 |
| 102 |
HG-53004 |
AXLE GEAR SPACER Price: $4.62 |
| 104 |
HG-53006 |
FLAT WASHER 1.40 X 1.75 X .05 Price: $3.05 |
| 105 |
HG-53007 |
BALL BEARING 35 X 80 X 21 Price: $26.10 |
| 110 |
HG-51796 |
WOODRUFF KEY 5/16 X 1 Price: $4.52 |
| 113 |
HG-51821 |
SLOTTED 1-20 NUT Price: $13.47 |
| 116 |
HG-51822 |
COTTER PIN 9/64 X 1.5 Price: $1.53 |
| 128 |
HG-53356 |
SPACER-.57 X .86 X .53 Price: $1.48 |
| 130 |
HG-53018 |
ACTUATING HANDLE Price: $7.93 |
| 142 |
HG-71942 |
CHARGE COVER KIT Price: $80.13 |
| 150 |
HG-71943 |
FILTER KIT Price: $24.00 |
| 152 |
609099 |
FILTER CAP This part replaces HG-71944. Price: $39.89 |
| 160 |
HG-53026 |
MOTOR SWASH PLATE Price: $39.20 |
| 170 |
HG-53037 |
STRAIGHT FITTING 7/8 SAE Price: $27.21 |
| 172 |
HG-9005110-8700 |
PLUG Price: $32.23 |
| 174 |
HG-9005110-5600 |
PLUG-STRAIGHT THRE Price: $17.80 |
| 180 |
HG-73461 |
FAN/PULLEY KIT Price: $37.58 |
| 200 |
HG-73190 |
OVERHAUL SEAL KIT Price: $62.58 |
| 201 |
HG-71951 |
RTN BI-DIRECTIONAL KIT Price: $37.24 |
| 202 |
HG-72748 |
BRAKE ROTOR,GEAR KIT Price: $22.43 |
