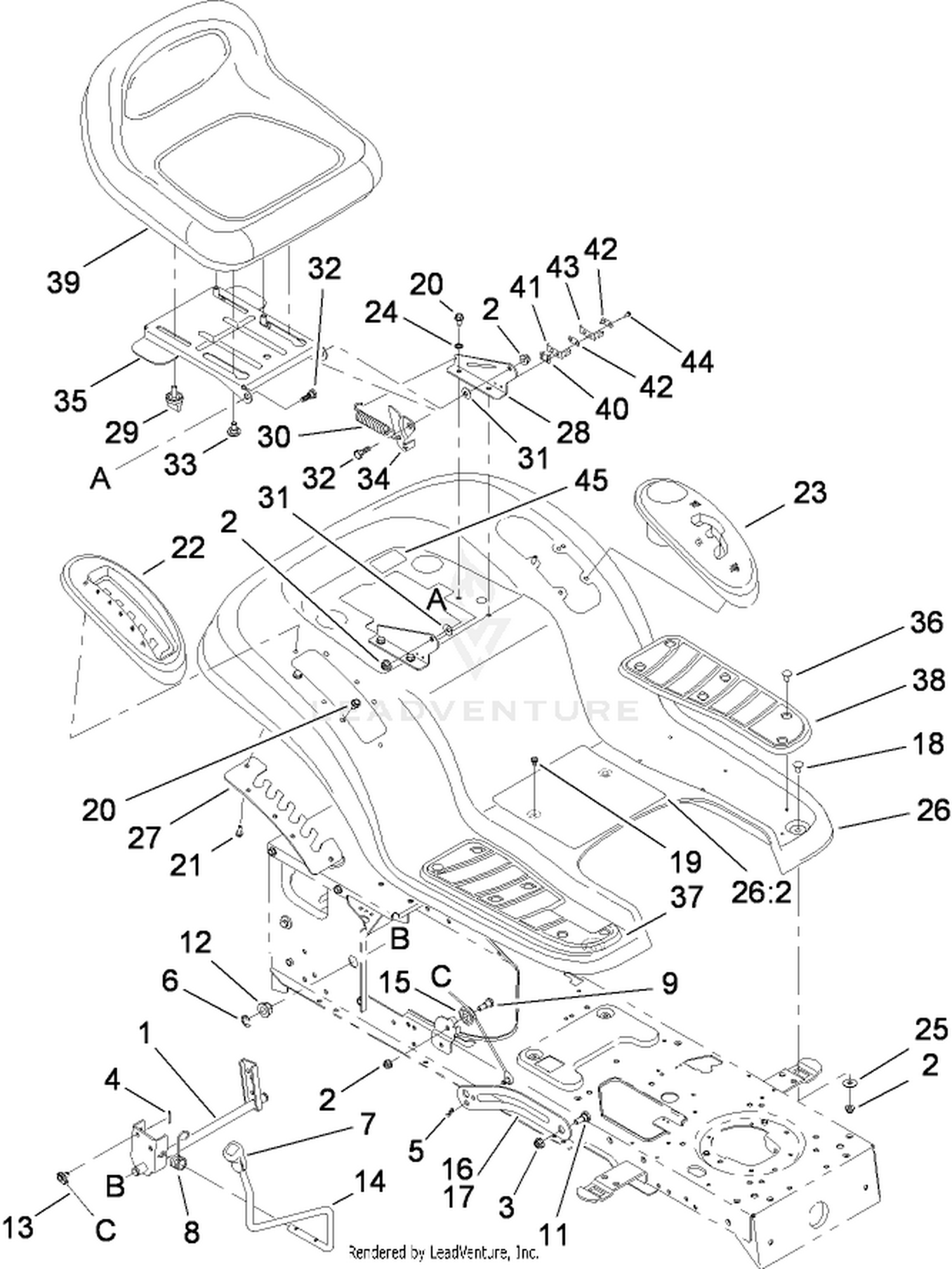

| Ref | Part Number | Description |
|---|
| 1 |
112-5969 |
LIFT SHAFT ASM Price: $60.99 |
| 2 |
112-0650 |
NUT-LOCK, FLANGE Price: $5.89 |
| 3 |
112-0668 |
NUT-LOCK, FLANGE Price: $5.79 |
| 4 |
112-0459 |
PIN-COTTER Price: $3.16 |
| 5 |
112-0568 |
PIN-COTTER Price: $6.29 |
| 6 |
112-0586 |
RING-E Price: $6.29 |
| 7 |
112-0585 |
GRIP-HANDLE Price: $10.89 |
| 8 |
112-0477 |
SPRING-TORSION Price: $4.78 |
| 9 |
112-0443 |
BOLT-SHOULDER Price: $6.57 |
| 11 |
112-0669 |
BOLT-SHOULDER Price: $6.49 |
| 12 |
112-0347 |
BEARING-FLANGE Price: $13.99 |
| 13 |
112-0374 |
CABLE-LIFT Price: $33.99 |
| 14 |
112-5970 |
HANDLE-LIFT Price: $32.44 |
| 15 |
112-0502 |
PULLEY-ROLLER Price: $10.99 |
| 16 |
119-8471 |
ARM-LIFT, RH This part replaces 112-6109. Price: $35.99 |
| 17 |
119-8472 |
ARM-LIFT, LH This part replaces 112-6110. Price: $30.87 |
| 18 |
112-0426 |
BOLT-CARR Price: $4.33 |
| 19 |
112-0524 |
SCREW-HWHTF Price: $5.99 |
| 20 |
112-6070 |
SCREW-TAP Price: $5.59 |
| 21 |
112-0509 |
SCREW-TAP Price: $8.99 |
| 22 |
112-0869 |
COVER-LEVER, LIFT Price: $37.62 |
| 23 |
112-6111 |
COVER-HOLDER (W/CUP) Price: $45.99 |
| 24 |
112-0517 |
WASHER-LOCK, EXTERNAL Price: $4.37 |
| 25 |
112-0582 |
WASHER-FLAT Price: $4.37 |
| 26 |
112-6112 |
FENDER Price: $310.37 |
| 27 |
112-0629 |
BRACKET-ADJUSTING, LIFT Price: $28.29 |
| 28 |
112-6046 |
BRACKET-MOUNT, SEAT Price: $24.99 |
| 29 |
112-0409 |
KNOB Price: $8.99 |
| 30 |
112-0616 |
SPRING-EXTENSION Price: $15.99 |
| 31 |
112-0435 |
WASHER-BELL Price: $4.61 |
| 32 |
112-0575 |
BOLT-SHOULDER Price: $5.39 |
| 33 |
112-0554 |
BOLT-SHOULDER Price: $3.91 |
| 34 |
112-0646 |
BRACKET-LIFT, LH Price: $16.55 |
| 35 |
112-6113 |
BRACKET-PIVOT, SEAT Price: $41.27 |
| 36 |
112-0549 |
CLIP-RATCHET, FASTENER Price: $5.99 |
| 37 |
112-0540 |
PAD-FOOT, RH Price: $29.02 |
| 38 |
112-0545 |
PAD-FOOT, LH Price: $29.15 |
| 39 |
112-6114 |
SEAT-MEDIUM Price: $184.27 |
| 40 |
112-0637 |
PLATE-BOSS, INSULATOR Price: $5.07 |
| 41 |
112-0532 |
SWITCH-SPRING, INNER Price: $6.79 |
| 42 |
112-0635 |
PLATE-INSULATOR Price: $4.69 |
| 43 |
112-0529 |
SWITCH-SPRING Price: $5.59 |
| 44 |
112-0626 |
SCREW-HWHTF Price: $5.99 |
