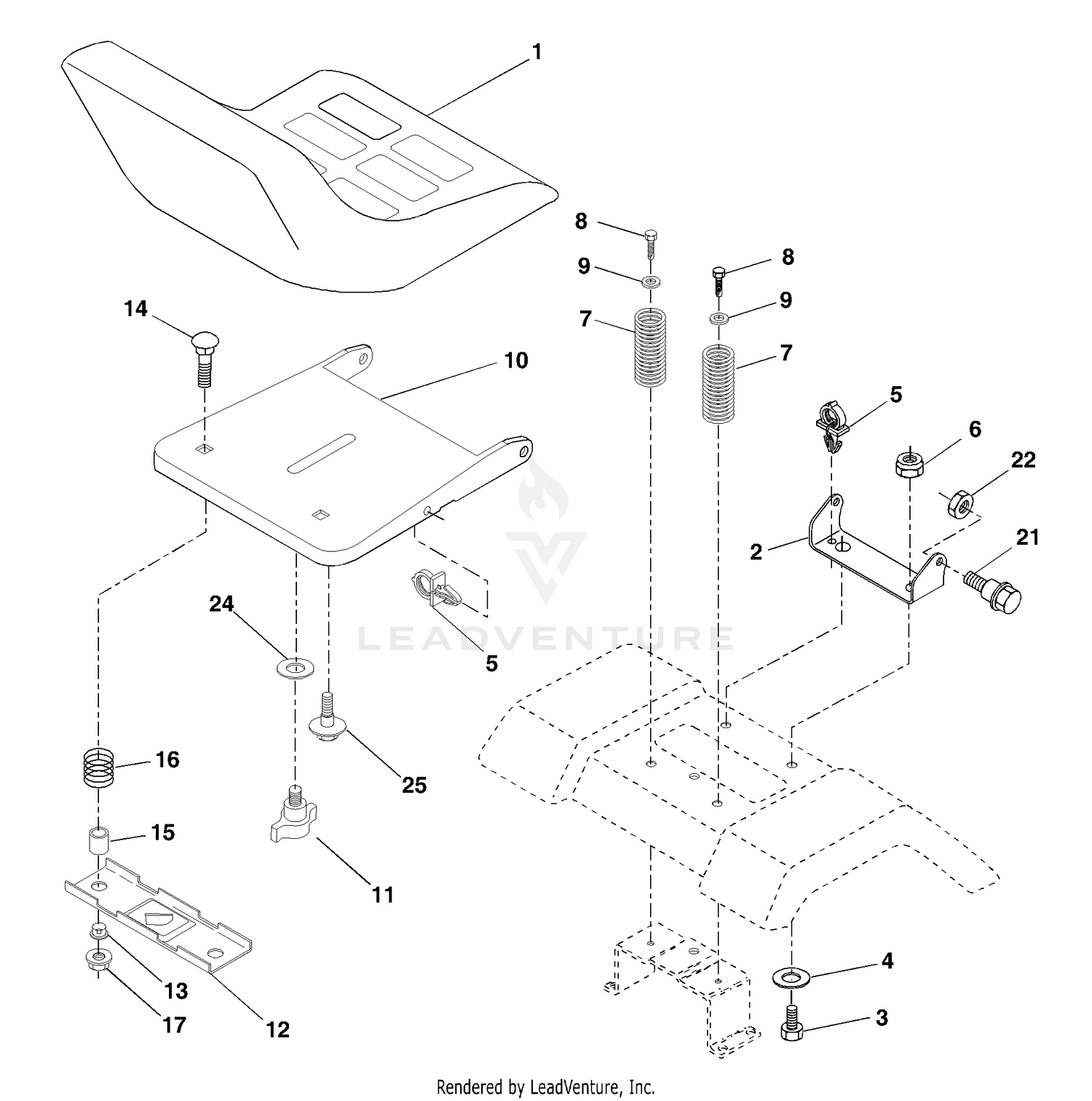

| Ref | Part Number | Description |
|---|
| 1 |
171684 |
Seat Price: Call Us |
| 2 |
140551 |
Bracket Pivot Seat 8 720 Price: Call Us |
| 3 |
71110616 |
Bolt Fin Hex 3/8-16 Unc x 1 Price: Call Us |
| 4 |
19131610 |
Washer Flat 13/32 x 1 x 10 Ga. Price: Call Us |
| 5 |
145006 |
Clip Push-In Price: Call Us |
| 6 |
73800600 |
Nut Hex w/Ins. 3/8-16 Unc Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 8 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 10 |
112-7018 |
VALVE-INLET Price: $41.87 |
| 10 |
174894 |
Pan Seat Price: Call Us |
| 11 |
166369 |
Knob Seat Adj. Wingnut Price: Call Us |
| 12 |
121246X |
Bracket Mounting Switch Price: Call Us |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 14 |
72050412 |
Bolt Rdhd Sqnk 1/4-20x1-1/2 Price: Call Us |
| 15 |
121249X |
Spacer Split 28x 88 Price: Call Us |
| 16 |
123740X |
Spring Cprsn Price: Call Us |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr 5 Zinc Price: Call Us |
| 20 |
120-2564 |
VALVE-EXHAUST This part replaces 112-7021. Price: $34.21 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 Unc Price: Call Us |
| 22 |
73800500 |
Nut Hex Lock W/Ins 5/16-18 Price: Call Us |
| 24 |
19171912 |
Washer 17/32 X 1-3/16 X 12 Ga. Price: Call Us |
| 30 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 40 |
107-9092 |
RETAINER-SPRING Price: $2.58 |
| 50 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 60 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 70 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 80 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 90 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
105-3758 |
PIN-SPRING Price: $0.57 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
110-3832 |
WASHER-PLAIN Price: $0.71 |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 160 |
112-7020 |
ROCKER ARM ASM Price: $75.86 |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 200 |
98-9393 |
NUT Price: $2.72 |
