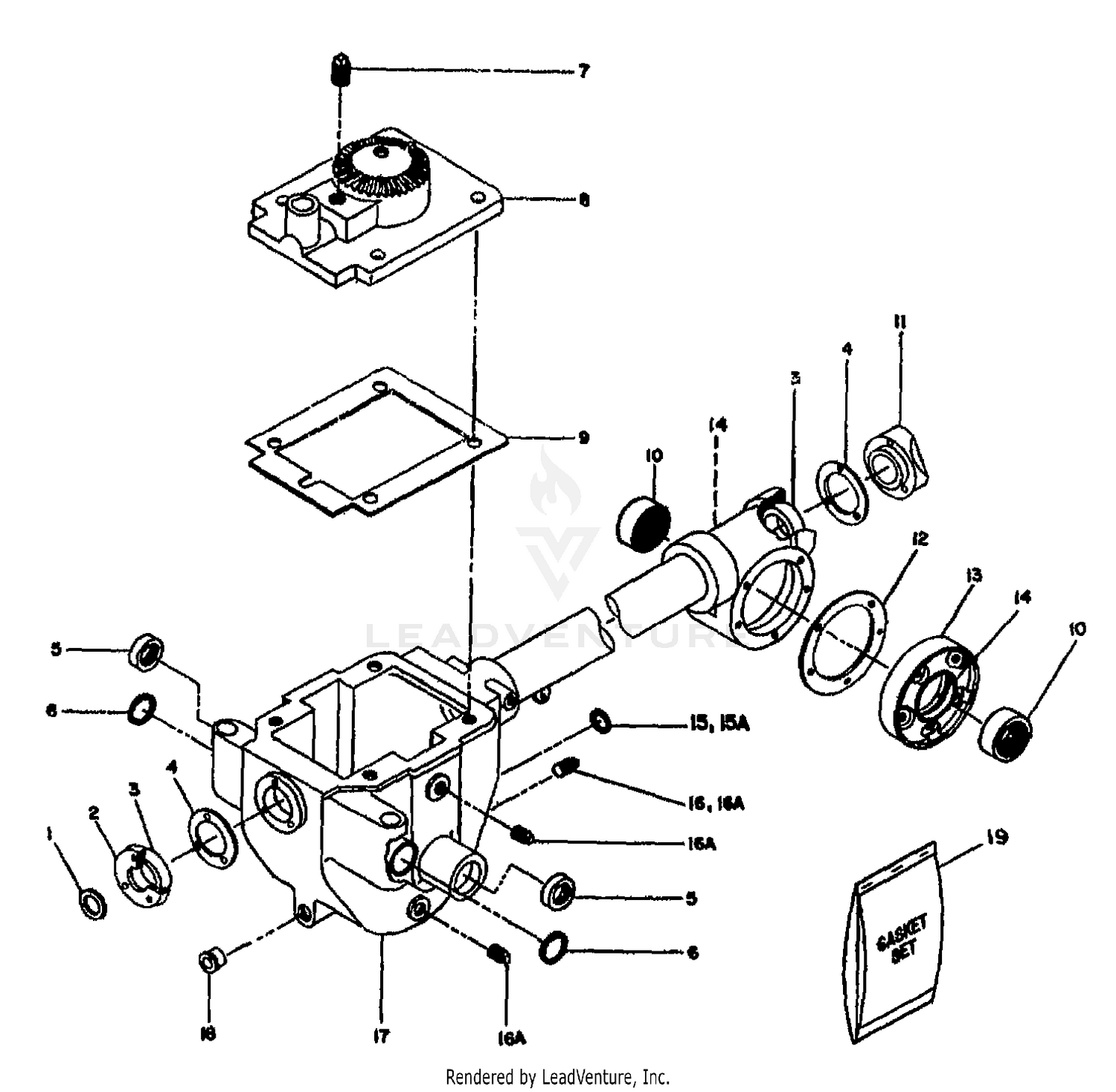

| Ref | Part Number | Description |
|---|
| 1 |
9600 |
SEAL-PINION SHAFT PT/85030/00 Price: Call Us |
| 2 |
718-04007 |
Front Bearing Cap This part replaces 1114. Price: $16.60 |
| 3 |
941-0107 |
Bearing, Tapered Roller (with race) This part replaces 1714. Price: $41.81 |
| 4 |
GW-1124-2099 |
BEARING COVER GASKET This part replaces 1124-2. Price: $3.98 |
| 5 |
9609 |
SEAL-OIL WHEELSHAFT Price: Call Us |
| 6 |
GW-9604 |
O-RING - retaining plug This part replaces 9604. Price: $4.62 |
| 7 |
737-04202 |
Pipe Plug This part replaces 9727. Price: $6.01 |
| 8 |
1003 |
ASSM-COVER W/BOLT-HORSE Price: Call Us |
| 9 |
GW-1123 |
GASKET- transmission cover This part replaces 1123. Price: $7.44 |
| 10 |
9616 |
SEAL-OIL TILLERSHAFT Price: Call Us |
| 11 |
718-04406 |
Rear Bearing Cover This part replaces 1115. Price: $44.01 |
| 12 |
GW-1129-1099 |
TILLER COVER GASKET This part replaces 1129-1. Price: $7.81 |
| 12 |
GW-1129-2099 |
TILLER COVER GASKET This part replaces 1129-2. Price: $7.81 |
| 13 |
1872 |
COVER-W/SCRS(TLR) (9780) Price: Call Us |
| 14 |
11527 |
KIT-TILLER GEAR & BRGS Price: Call Us |
| 15 |
9611 |
SEAL-OIL ECCENTRIC Price: Call Us |
| 15A |
9603 |
RING-O .625 X .438 Price: Call Us |
| 16 |
737-04202 |
Pipe Plug This part replaces 9727. Price: $6.01 |
| 16A |
1105620 |
PLUG-SQ HEAD 1/4-18 NPT This part replaces 9726. Price: $3.66 |
| 17 |
N/A |
CASE |
| 18 |
GW-9122 |
PLUG - red plastic, thread protector This part replaces 9122. Price: $8.93 |
