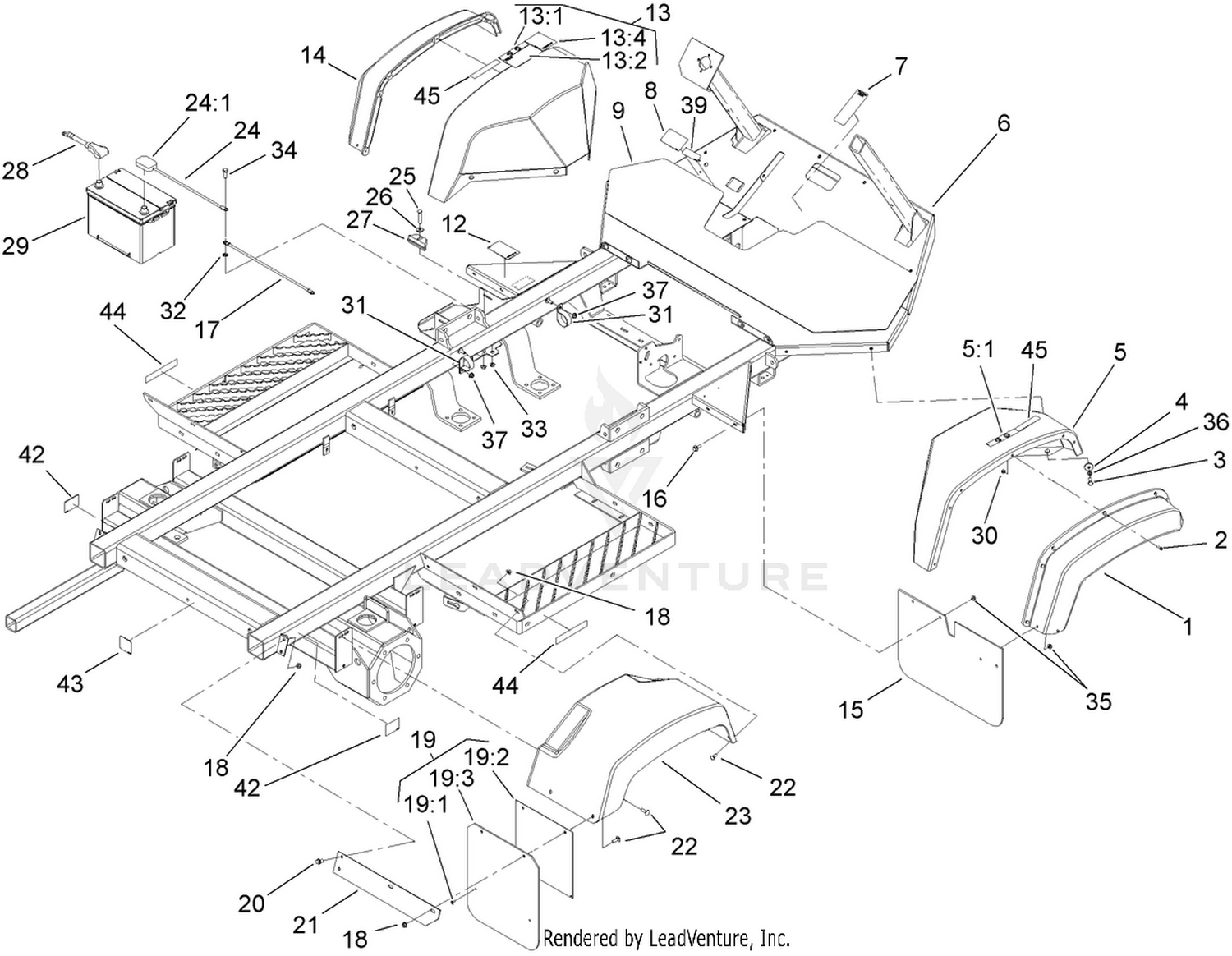

| Ref | Part Number | Description |
|---|
| 1 |
94-7074 |
FLARE-FENDER, RH Price: $111.01 |
| 2 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 3 |
322-3 |
SCREW-HH Price: $0.79 |
| 4 |
52-2861 |
WASHER Price: $1.29 |
| 5 |
94-8532 |
RH FENDER ASM Price: $511.87 |
| 6 |
106-5262-03 |
FRAME ASM Price: $5,436.23 |
| 7 |
107-8724 |
DECAL-TRACTION Price: $18.74 |
| 8 |
100-8619 |
DECAL-SWITCH, BOOM Price: $10.09 |
| 9 |
104-8863 |
TREAD-FLOOR Price: $54.94 |
| 12 |
107-8720 |
DECAL-WARNING, SAFETY START Price: $19.87 |
| 13 |
94-8531 |
LH FENDER ASM Price: $534.90 |
| 14 |
94-7075 |
FLARE-FENDER, LH Price: $124.14 |
| 15 |
94-7071 |
GUARD-SPLASH Price: $76.78 |
| 16 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 17 |
42617 |
CABLE-GROUND Price: $25.41 |
| 18 |
32128-20 |
NUT-HF Price: $0.99 |
| 19 |
94-7127 |
SPLASH GUARD ASM Price: $161.83 |
| 20 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 21 |
93-6528-03 |
STRAP-MOUNT, FENDER Price: $37.52 |
| 22 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 23 |
93-6498 |
FENDER-REAR Price: $312.87 |
| 24 |
99060 |
CABLE-GROUND Price: $41.19 |
| 25 |
322-9 |
SCREW-HH Price: $3.09 |
| 26 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 27 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 28 |
105-0114 |
CABLE-BATTERY, POSITIVE Price: $70.97 |
| 29 |
106-5190 |
BATTERY Price: $170.85 |
| 30 |
3290-148 |
NUT-HF Price: $0.25 |
| 31 |
2412-96 |
CLAMP-R Price: $3.46 |
| 32 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 33 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 34 |
323-6 |
SCREW-HH Price: $0.66 |
| 35 |
32128-33 |
NUT-HF Price: $0.25 |
| 36 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 37 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 39 |
107-8722 |
DECAL-INSTRUCTIONS, PARKING BRAKE Price: $8.11 |
| 42 |
107-8667 |
DECAL-JACKING Price: $14.57 |
| 43 |
107-8666 |
DECAL-TIE-DOWN / TOWING Price: $11.35 |
| 44 |
107-8732 |
DECAL-TORQUE (CE) Price: $13.00 |
