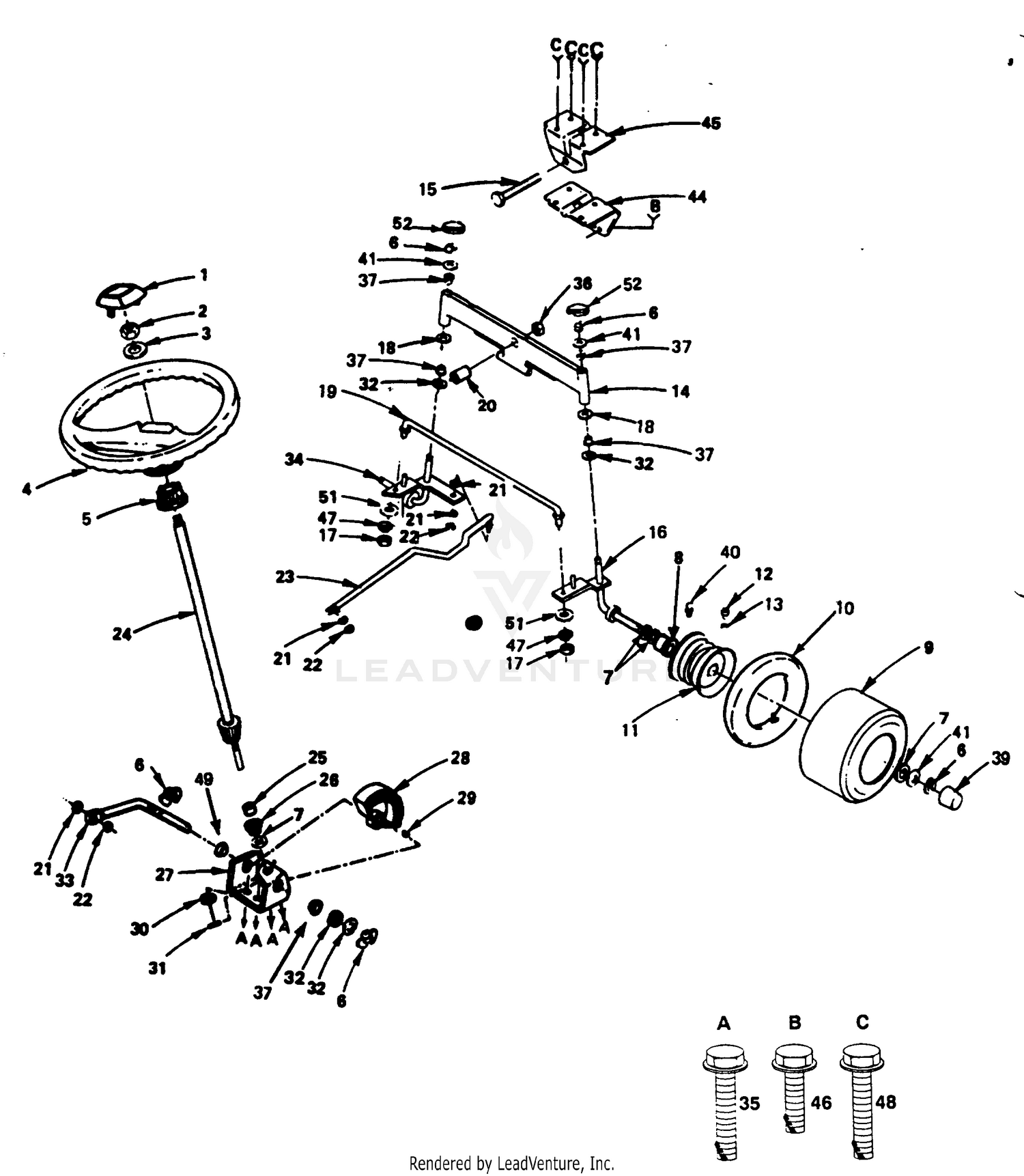

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
532150546 |
STEERING WHEEL KIT This part replaces 532126805. Price: $59.99 |
| 2 |
873940800 |
Nut, Hex, Toplock Jam 1/2-20 (AYP part number) Price: $3.99 |
| 3 |
237-68 |
O-RING Price: $3.22 |
| 3 |
532100712 |
Washer 17/32 x 2-1/4 x .160 (AYP part number) Price: $2.42 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
532150546 |
STEERING WHEEL KIT This part replaces 532121472. Price: $59.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
532100711 |
Adapter, Steering Wheel (AYP part number) Price: $11.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
812000029 |
Ring, Klip (AYP part number) Price: $1.99 |
| 7 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $1.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
532009040 |
BEARING T This part replaces 532124959. Price: $3.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
532122073 |
TIRE.FRONT (15X6-6) TURF SAVER This part replaces 532106222. Price: $49.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
532059904 |
Tube, Tire Price: $22.99 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
532065139 |
Stem, Valve (AYP part number) Price: $5.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
532059192 |
Cap, Valve (AYP part number) Price: $3.99 |
| 14 |
532108075 |
Axle Assembly, Front (AYP part number) Price: $62.55 |
| 15 |
105-8095-01 |
BEDBAR-FAIRWAY Price: $303.06 |
| 15 |
874761060 |
Bolt, Hex 5/8-11 x 3-3/4 (AYP part number) Price: $3.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
532105654 |
Spindle, Assembly, R.H. (AYP part number) Price: $32.99 |
| 17 |
873610500 |
This part replaces 873810500. Price: Call Us |
| 18 |
819272016 |
Washer 27/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $2.99 |
| 19 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN This part replaces 532121334. Price: $59.99 |
| 20 |
532110438 |
Spacer, Bearing (AYP part number) Price: $5.99 |
| 21 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 22 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 23 |
532130468 |
Link Drag Sol Ball Jt 20 064 (AYP part number) This part replaces 532124032. Price: $49.99 |
| 24 |
532156544 |
STEERING SHAFT This part replaces 532128762. Price: $64.99 |
| 24 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 25 |
532057079 |
Washer (AYP part number) Price: $2.99 |
| 25 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 26 |
131-4715 |
WASHER Price: $0.95 |
| 26 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $6.99 |
| 27 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 27 |
532124036 |
Bracket, Steering (AYP part number) Price: $4.99 |
| 28 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 28 |
532136874 |
Gear Sector (AYP part number) This part replaces 532124034. Price: $49.99 |
| 29 |
127-4284 |
WASHER-SPECIAL Price: $5.88 |
| 29 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871070410. Price: $2.99 |
| 30 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 30 |
819091016 |
WASHER This part replaces 532126684. Price: $2.99 |
| 31 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 31 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 32 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 32 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 33 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532124033. Price: $27.99 |
| 34 |
137-8426 |
ES REEL+,5IN FWY(22)8 BLD LD(RR) This part replaces 132-7109. Price: $719.44 |
| 34 |
532156483 |
SPINDLE ASM LH This part replaces 532105656. Price: $14.99 |
| 35 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 36 |
583612401 |
LOCKNUT M (1 2) (5 2) This part replaces 873601000. Price: $2.99 |
| 37 |
130-0064 |
INSERT-THREADED, 5 INCH (LH) Price: $42.48 |
| 37 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 38 |
130-0063 |
INSERT-THREADED, 5 INCH (RH) Price: $42.48 |
| 39 |
532104757 |
Cap, Axle (AYP part number) Price: $1.99 |
| 40 |
532000278 |
FITTING LT This part replaces 532124957. Price: $2.99 |
| 41 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number) Price: $1.99 |
| 44 |
532105664 |
Support, Saddle, Front (AYP part number) Price: $9.99 |
| 45 |
532105663 |
Support, Saddle, Rear (AYP part number) Price: $8.25 |
| 46 |
817490508 |
Screw, Hex Washer Threaded, Rolling 5/16-18), (AYP part number) Price: $3.99 |
| 47 |
810040500 |
Washer, Lock 5/16 (AYP part number) Price: $2.99 |
| 48 |
532122819 |
Screw, Special (AYP part number) Price: $2.38 |
| 49 |
532109816 |
Nyliner, Snap In (AYP part number) Price: $2.99 |
| 51 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 52 |
532121232 |
Cap, Spindle (AYP part number) Price: $1.99 |
