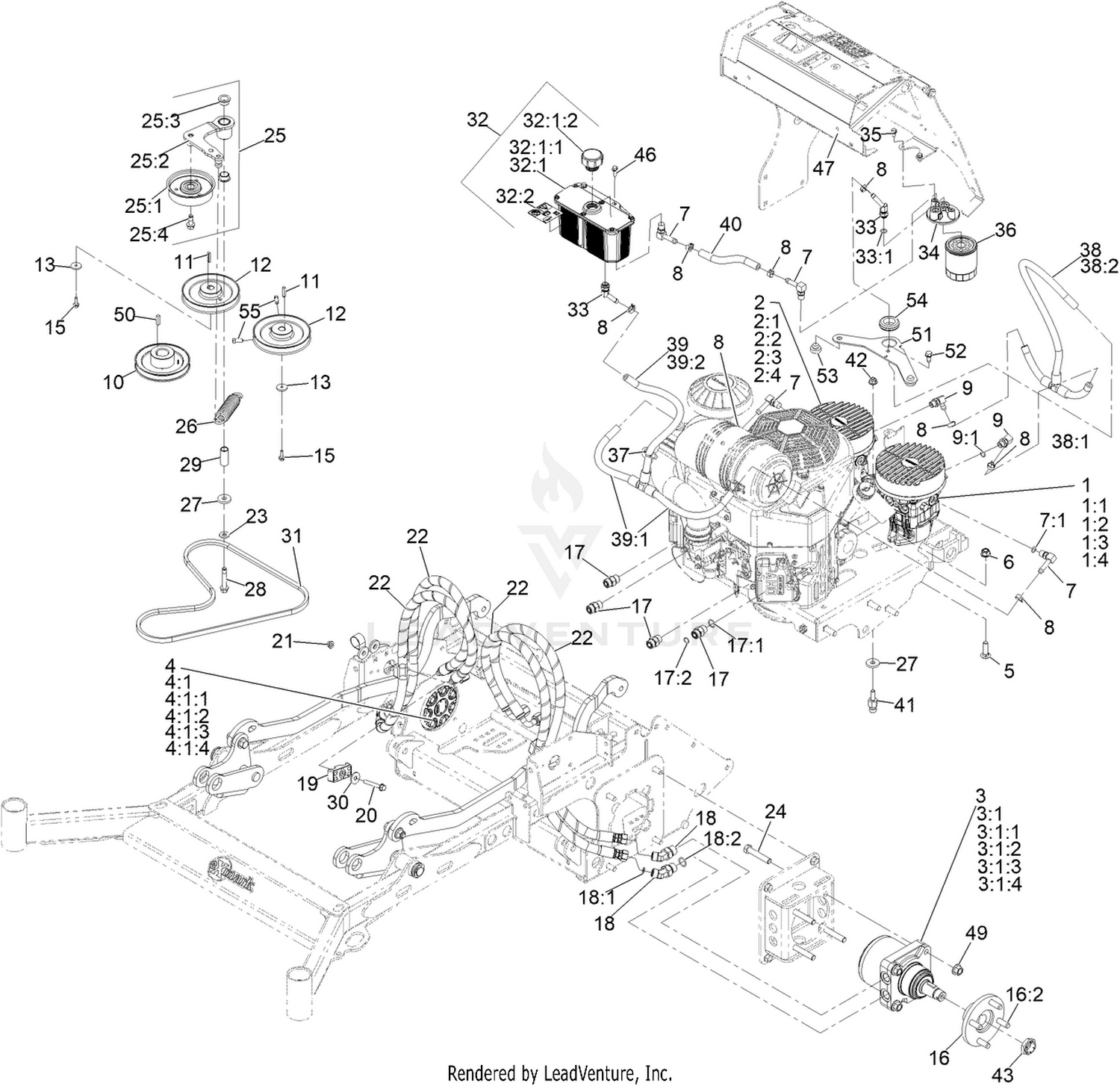

| Ref | Part Number | Description |
|---|
| 1 |
142-8892 |
PUMP-12CC LT W/SHOCK VALVE Price: $975.99 |
| 2 |
142-8893 |
PUMP-12CC RT W/SHOCK VALVE Price: $1,029.99 |
| 3 |
142-8578 |
MOTOR, TL240 LH Price: $1,011.99 |
| 4 |
142-8577 |
MOTOR, TL240 RH Price: $1,011.99 |
| 5 |
3232-3 |
BOLT-CARR Price: $3.09 |
| 6 |
114-8417 |
NUT-HF, NI Price: $2.19 |
| 7 |
100-4887 |
FITTING-ELBOW, 90 Price: $24.99 |
| 8 |
103-1988 |
CLAMP-HOSE Price: $1.19 |
| 9 |
126-2927 |
FITTING-90 DEG Price: $24.99 |
| 10 |
116-1946 |
SHEAVE-PUMP, DRIVE Price: $76.99 |
| 11 |
135-7971 |
KEY, 5MM X 5MM X 29MM Price: $2.39 |
| 12 |
146-3810 |
SHEAVE-PUMP Price: $77.99 |
| 13 |
142-8011 |
WASHER-1.00 OD X .25 ID Price: $1.19 |
| 15 |
142-8012 |
SCREW-HHF Price: $1.19 |
| 16 |
18-3209 |
WHEEL HUB / STUD ASM Price: $160.99 |
| 17 |
340-4 |
FITTING-STRAIGHT Price: $10.99 |
| 18 |
340-89 |
Fitting-HYD, 45 DEG Price: $36.99 |
| 19 |
94-8105 |
CLAMP-TUBE Price: $6.49 |
| 20 |
139-4479 |
CLAMP-TUBE Price: $1.89 |
| 21 |
104-8300 |
NUT-HF, NI Price: $0.89 |
| 22 |
146-1921 |
HOSE ASM-HYD HP Price: $121.99 |
| 23 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 24 |
325-11 |
SCREW-HH Price: $2.89 |
| 25 |
142-6821 |
ASM-PUMP IDLER Price: $111.99 |
| 26 |
135-1272 |
SPRING, EXTENSION Price: $15.99 |
| 27 |
1-373034 |
WASHER Price: $3.19 |
| 28 |
126-2956 |
SCREW-HHF Price: $5.99 |
| 29 |
126-2954 |
PIVOT, IDLER Price: $6.29 |
| 30 |
52-2861 |
WASHER Price: $1.29 |
| 31 |
146-5340 |
BELT-COG A 54 Price: $36.99 |
| 32 |
116-2066 |
RESERVOIR ASM This part replaces 126-1248. Price: $182.99 |
| 33 |
103-1807 |
FITTING-BARBED, 45 DEG Price: $26.99 |
| 34 |
103-2888 |
HEAD-FILTER Price: $84.99 |
| 35 |
3234-13 |
SCREW-HHF Price: $1.29 |
| 36 |
109-4180 |
FILTER-25 MICRON, BI-DIRECTIONAL Price: $45.99 |
| 37 |
32180-030 |
CLIP-TIE Price: $4.19 |
| 38 |
146-5722 |
ASM-Hydraulic Lo-Pres Price: Call Us |
| 39 |
146-5723 |
ASM-Hydraulic Lo-Pres Price: Call Us |
| 40 |
146-5721 |
Hose, LP Hydro Price: Call Us |
| 41 |
126-0423 |
PIN-SPRING, ANCHOR Price: $7.39 |
| 42 |
104-8301 |
NUT-HF, NI Price: $1.19 |
| 43 |
116-1399 |
LOCKNUT Price: $13.99 |
| 46 |
3234-4 |
SCREW-HHF Price: $0.79 |
| 47 |
32128-32 |
NUT-HHF Price: $2.69 |
| 49 |
99-5107 |
Nut-Lock 1/2-13 Price: $1.69 |
| 50 |
1-807259 |
KEY Price: $1.89 |
| 51 |
146-2910-03 |
PLATE-HOLD DOWN Price: $13.99 |
| 52 |
32144-11 |
SCREW-THD ROLL, HWH Price: $7.09 |
| 53 |
104-1412 |
BUMPER-RUBBER Price: $15.99 |
| 54 |
108-3723 |
GROMMET Price: $7.19 |
