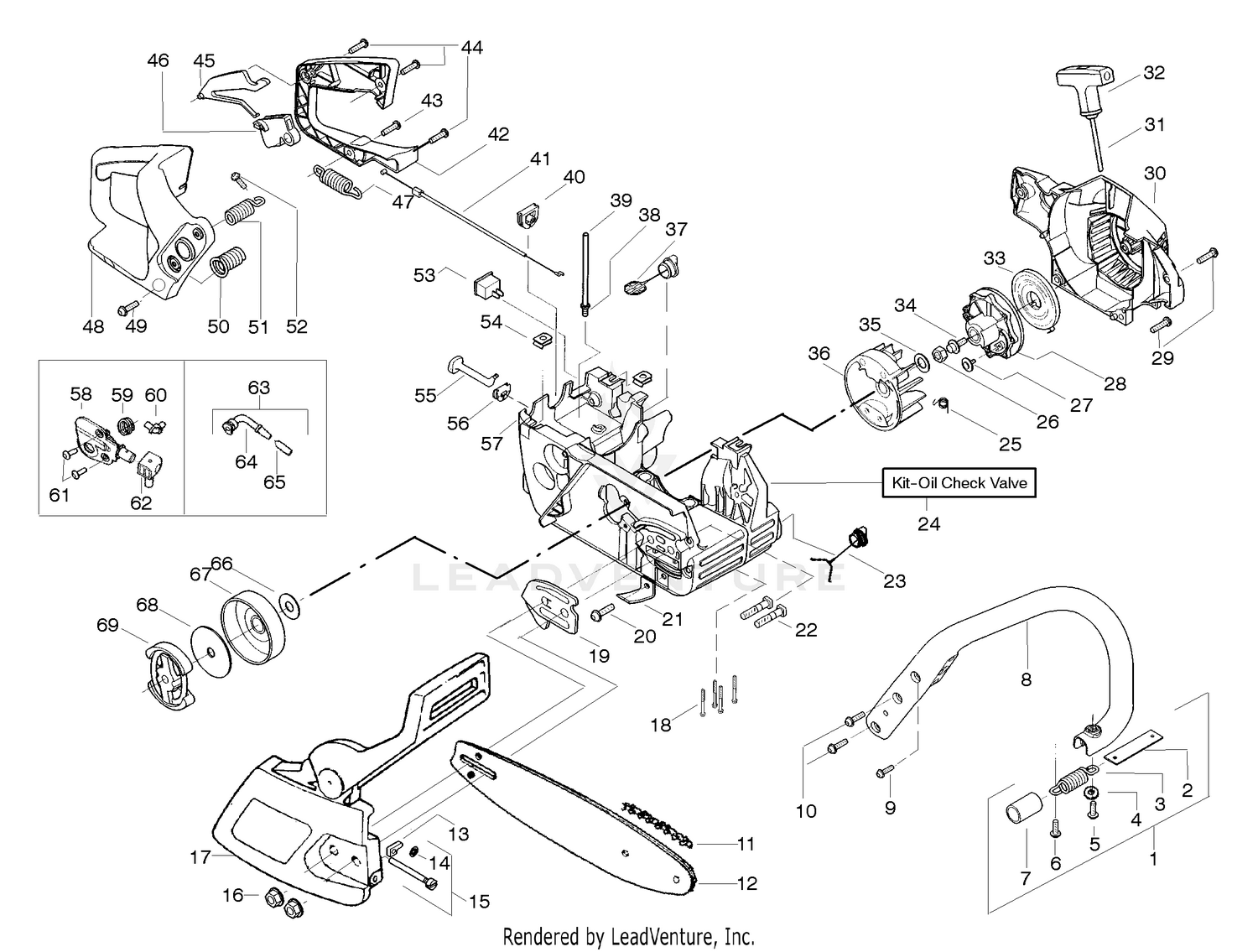

Handle, Chassis, And Bar Assembly
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530059667 | Assy.-Isolator Price: $1.08 |
| 3 | 545006036 | SPRING This part replaces 530059668. Price: $5.99 |
| 4 | 530015123 | Washer Price: $1.99 |
| 5 | 530016018 | Screw Price: $1.99 |
| 6 | 530015843 | Screw Price: $1.99 |
| 7 | 530036142 | Sleeve-AV Spring Price: Call Us |
| 8 | 545048001 | HANDLE This part replaces 530047583. Price: $27.99 |
| 9 | 530015940 | Screw Price: $1.99 |
| 10 | 530015814 | Screw Price: $1.99 |
| 11 | 581562301 | P/PP CHN 18" 62DL 3/8 .050 This part replaces 952051338. Price: $19.99 |
| 12 | 952044418 | Bar-18" Price: $30.95 |
| 13 | 530015826 | Pin Bar Adjust Price: $1.99 |
| 14 | 530038593 | Retainer-Bar Adjust Price: $0.99 |
| 16 | 530015917 | Nut-Bar Mounting Price: $0.99 |
| 17 | 530057447 | Assy-Chain Brake Price: $21.28 |
| 18 | 530016132 | Screw Price: $1.99 |
| 19 | 530038238 | Plate-Bar Mounting Price: $1.99 |
| 20 | 530015814 | Screw Price: $1.99 |
| 21 | 530029850 | Chain Catcher Price: $1.99 |
| 22 | 530016133 | Bolt-Bar Price: $1.99 |
| 23 | 530057236 | Oil Cap Ass'y. Price: $5.99 |
| 24 | 530071666 | Kit-Oil Check Valve Price: $7.99 |
| 25 | 530023817 | Spring-Starter Dog Price: $1.99 |
| 26 | 530016134 | Nut-Flywheel Price: $1.99 |
| 27 | 530016080 | Screw Price: $1.99 |
| 28 | 545034301 | STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 29 | 530015892 | Screw Price: $1.99 |
| 30 | 530057444 | Fan Housing Price: $17.99 |
| 31 | 530069232 | Kit-Rope Price: $3.99 |
| 32 | 530056402 | Handle-Starter This part replaces 530037485. Price: $2.99 |
| 33 | 545008015 | SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 34 | 530015920 | Screw Price: $1.99 |
| 35 | 530015127 | Washer-Flywheel Price: $1.99 |
| 36 | 530047534 | FLYWHEEL ASSY This part replaces 530039209. Price: $22.99 |
| 37 | 580940901 | FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 38 | 530023877 | Fitting-fuel line Price: $1.99 |
| 39 | 530069216 | Kit-Fuel line (large) Price: $3.99 |
| 40 | 530047631 | Grommet-Cable Price: $1.99 |
| 41 | 530047602 | Cable-Throttle Price: $3.99 |
| 42 | 530047581 | Cover-Rear Handle Price: $3.99 |
| 43 | 530015886 | Screw Price: $1.99 |
| 44 | 530015906 | Screw Price: $1.99 |
| 45 | 530036098 | Throttle Lockout Price: $1.99 |
| 46 | 530036097 | Trigger-Throttle Price: $1.99 |
| 47 | 545006036 | SPRING This part replaces 530059668. Price: $5.99 |
| 48 | 530047582 | Handle-Rear Price: $11.99 |
| 51 | 530071958-01 | Kit-Isolator (Upper) Price: Call Us |
| 52 | 530015875 | Screw Price: $1.99 |
| 53 | 530069572 | Kit-Switch Price: $4.99 |
| 54 | 530015922 | Nut-"U"-Type Price: $1.99 |
| 55 | 530047605 | Knob-Choke Price: $1.99 |
| 56 | 530049005 | Grommet-Knob Price: $1.99 |
| 59 | 530037820 | Gear-Worm Spring Price: $1.99 |
| 60 | 530049477 | Elbow-Oil Pickup Price: $1.99 |
| 61 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 62 | 530019206 | Seal Block Price: $1.99 |
| 64 | 530038373 | Pick-up Oiler Price: $1.99 |
| 65 | 530056533 | Oil Filter Price: $2.99 |
| 66 | 530015907 | Washer-Thrust Price: $1.99 |
| 67 | 530047061 | Assy.-Clutch Drum w/bearing Price: $11.99 |
| 68 | 530015611 | Washer-Clutch Price: $1.99 |
