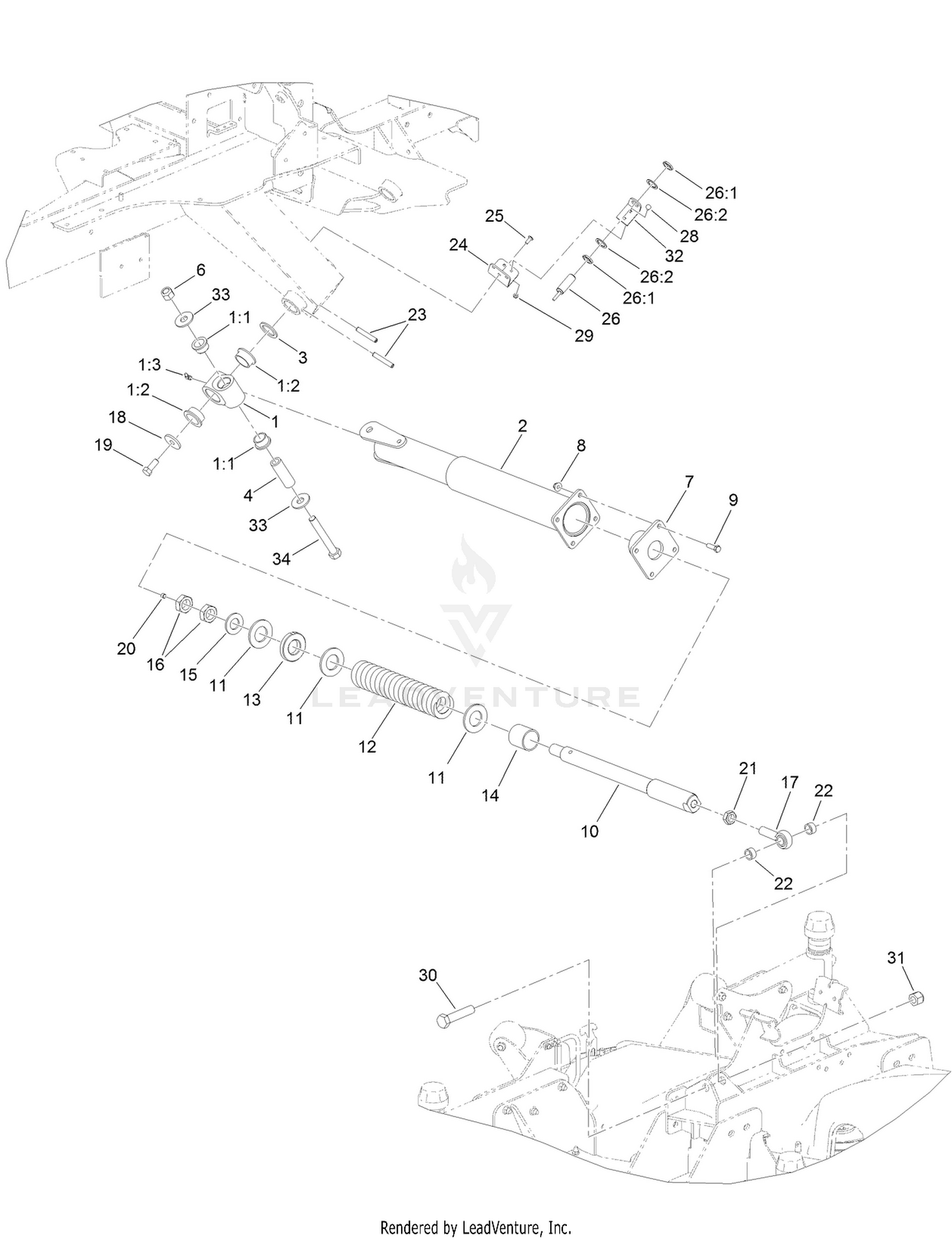

| Ref | Part Number | Description |
|---|
| 1 |
138-5253 |
PIVOT HUB ASM This part replaces 115-5468. Price: $73.95 |
| 2 |
137-5596 |
ARM-IMPACT, REAR This part replaces 112-7330-03. Price: $272.93 |
| 3 |
98-1452 |
WASHER-THRUST Price: $0.94 |
| 4 |
94-6604 |
TUBE-SPACER Price: $12.19 |
| 6 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 7 |
114-5677-03 |
HOUSING Price: $199.61 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
117-9404 |
SHAFT-SPRING Price: $293.95 |
| 11 |
114-5986 |
WASHER-PLAIN Price: $18.02 |
| 12 |
114-5993 |
SPRING-COMPRESSION Price: $264.02 |
| 13 |
114-5992 |
BEARING-PLASTIC Price: $53.92 |
| 14 |
114-5989 |
BUSHING-PLAIN Price: $11.20 |
| 15 |
3256-62 |
WASHER-FLAT Price: $0.75 |
| 16 |
3220-9 |
NUT-JAM Price: $11.71 |
| 17 |
105-2806 |
END-ROD Price: $98.92 |
| 18 |
106-2008 |
WASHER-THRUST Price: $5.16 |
| 19 |
325-5 |
SCREW-HH Price: $1.20 |
| 20 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 21 |
3220-7 |
NUT-JAM Price: $4.09 |
| 22 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 23 |
117-5479 |
PIN-SPRING Price: $1.45 |
| 24 |
133-2236 |
BRACKET-SUPPORT Price: $16.59 |
| 25 |
3290-412 |
RIVET-BLIND Price: $3.19 |
| 26 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 28 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 29 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 30 |
328-5 |
SCREW-HH Price: $3.60 |
| 31 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 32 |
133-2235 |
BRACKET-SENSOR, SIDE Price: $14.36 |
| 33 |
3256-7 |
WASHER-FLAT Price: $0.75 |
