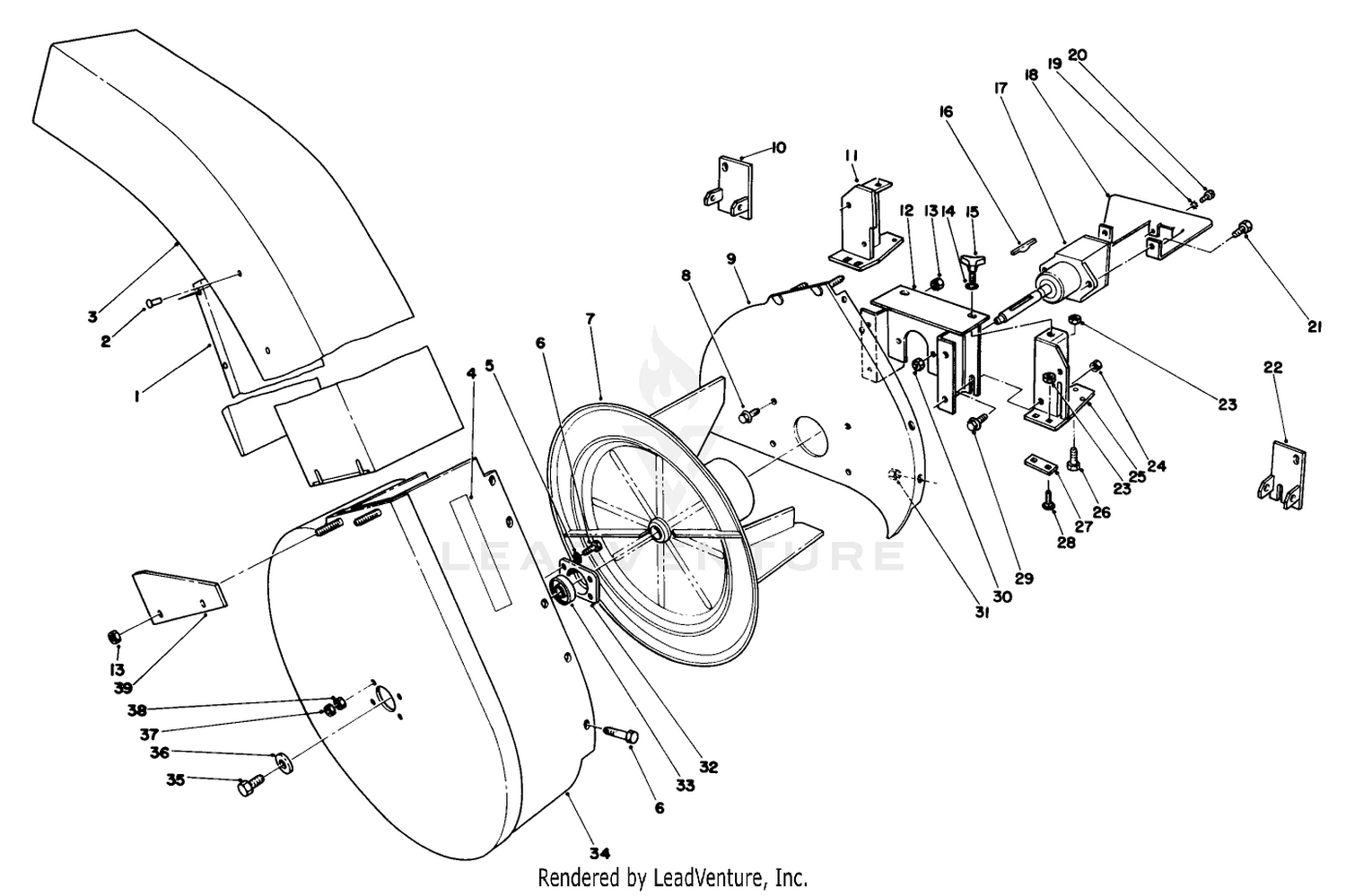

| Ref | Part Number | Description |
|---|
| 1 |
44-5290 |
Deflector-Chute Price: Call Us |
| 2 |
3290-409 |
RIVET Price: $0.34 |
| 3 |
94-2672 |
CHUTE ASSEMBLY This part replaces 44-5300. Price: $596.99 |
| 4 |
82-5510 |
DECAL-WARNING This part replaces 43-1110. Price: $7.09 |
| 5 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 6 |
321-3 |
SCREW-HH Price: $0.28 |
| 7 |
56-4780-03 |
IMPELLER ASM This part replaces 56-4780. Price: $926.99 |
| 8 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 9 |
59-5070-03 |
MTG PLATE ASM This part replaces 59-5070. Price: $328.99 |
| 10 |
74-0910-03 |
BRACKET This part replaces 59-4980. Price: $63.99 |
| 11 |
59-5050 |
LH BRACKET ASM, WELDED Price: $122.99 |
| 12 |
59-5140-03 |
BLOWER MT ASM This part replaces 59-5140. Price: $186.99 |
| 13 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
62-6520 |
KNOB This part replaces 27-4571. Price: $7.79 |
| 16 |
3257-40 |
KEY Price: $7.99 |
| 17 |
53-4530-03 |
GEAR BOX ASM This part replaces 53-4530. Price: $1,650.99 |
| 18 |
59-5150-01 |
GEARBOX COVER This part replaces 59-5150. Price: $41.91 |
| 19 |
3255-17 |
WASHER-LOCK, EXT Price: $0.29 |
| 20 |
3290-134 |
SCREW Price: $0.27 |
| 21 |
323-7 |
SCREW-HH Price: $0.65 |
| 22 |
74-0910-03 |
BRACKET This part replaces 59-5000. Price: $63.99 |
| 23 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 24 |
3218-3 |
NUT-JAM Price: $0.25 |
| 25 |
59-5090 |
RH BRACKET ASM, WELDED Price: $129.99 |
| 26 |
322-3 |
SCREW-HH Price: $0.79 |
| 27 |
44-5460-03 |
LH PLT BRKT This part replaces 44-5460. Price: $16.99 |
| 28 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 29 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 30 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 31 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 32 |
37-6730 |
CUP-BEARING Price: $15.84 |
| 33 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 34 |
56-4690 |
Blower Housing Price: Call Us |
| 35 |
98-3052 |
SCREW-LOCKING, THREAD This part replaces 36-4030. Price: $1.49 |
| 36 |
43-0940 |
SPACER Price: $1.25 |
| 37 |
3218-1 |
NUT-JAM Price: $1.29 |
| 38 |
3217-5 |
NUT-HEX Price: $0.25 |
