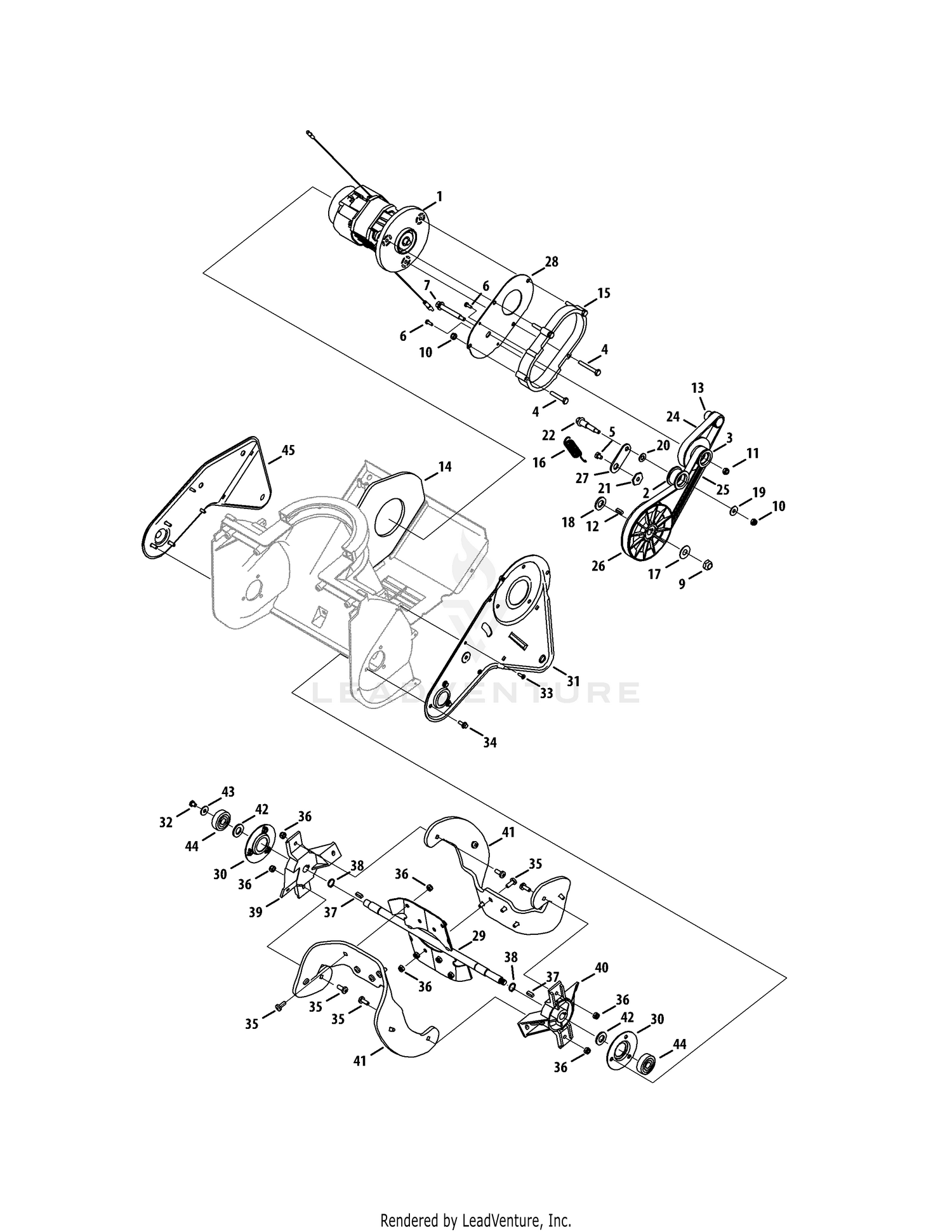

| Ref | Part Number | Description |
|---|
| 2 |
931-04505 |
Pulley Assembly, Idler Price: $11.24 |
| 3 |
656-04060P |
BEARING PULLEY ASSEMBLY Not Available This part replaces 656-04060A. Price: |
| 4 |
710-04197 |
SCREW M6-1X35 Not Available Price: |
| 5 |
710-05132 |
Screw, Hex Screw, M6 x 8mm Price: $3.49 |
| 6 |
710-05137 |
SCREW M4.2 x 1.4 x 13 Not Available Price: |
| 7 |
710-05187A |
SCREW M8-1.25 x 62MM Not Available This part replaces 710-05187. Price: |
| 8 |
710-1391 |
SCREW M6-1 x 45 Not Available Price: |
| 9 |
712-04255 |
HEX NUT Not Available Price: |
| 10 |
712-0691 |
HEX NUT This part replaces 912-0691. Price: $6.13 |
| 11 |
712-0692 |
Nut, Hex Lock, M8-1.25, Nylon Price: $6.07 |
| 12 |
714-04089 |
Key, Square, 5 x 5 x 13 Price: $3.35 |
| 13 |
756-04455A |
PULLEY-5MM 15 TOOTH Not Available Price: |
| 14 |
723-04076 |
FOAM GASKET Not Available Price: |
| 15 |
731-07772 |
MOTOR SPACER Not Available Price: |
| 16 |
732-04770 |
IDLER SPRING Not Available Price: |
| 17 |
936-0101 |
Washer, Flat, .406 x 1.0 x .030 Not Available Price: |
| 18 |
736-04502A |
Washer, Flat, M12 This part replaces 736-04502. Price: $3.24 |
| 19 |
736-0685 |
FLAT WASHER Not Available Price: |
| 20 |
736-0700 |
Washer, Flat, 8.4 x 16 x 1.60 Price: $6.20 |
| 21 |
738-04446 |
SPACER-SHOULDER HEX NLAUD Not Available Price: |
| 22 |
738-04449 |
SHOULDER SCREW Not Available Price: |
| 23 |
750-05435 |
SPACER Not Available Price: |
| 24 |
754-04279A |
BELT-5MM PITCH x 280MM Not Available Price: |
| 25 |
754-04281A |
Belt, Poly, 6 Rib Price: $17.85 |
| 26 |
756-04451A |
AUGER PULLEY This part replaces 756-04451. Price: $15.89 |
| 27 |
790-00418 |
IDLER BRACKET Not Available Price: |
| 28 |
790-00425-0637 |
MOTOR PLATE Not Available Price: |
| 29 |
753-08308 |
SHAFT KIT-AUGER Not Available This part replaces 684-04365. Price: |
| 30 |
684-04366 |
BEARING PLATE ASSEMBLY Not Available Price: |
| 31 |
684-04370 |
BEARING PLATE ASSEMBLY Not Available Price: |
| 32 |
710-05132 |
Screw, Hex Screw, M6 x 8mm Price: $3.49 |
| 33 |
710-05137 |
SCREW M4.2 x 1.4 x 13 Not Available Price: |
| 34 |
710-05158 |
SCREW M5 x 13MM Not Available Price: |
| 35 |
710-1389 |
SCREW M6-1 x 16 Not Available Price: |
| 36 |
712-0691 |
HEX NUT This part replaces 912-0691. Price: $6.13 |
| 37 |
714-04089 |
Key, Square, 5x5x13 Price: $3.35 |
| 38 |
716-04170 |
SNAP RING Not Available Price: |
| 39 |
731-07638 |
AUGER BRACKET (RH) Not Available Price: |
| 40 |
731-07642 |
Bracket, Paddle, Mount, LH Price: $13.08 |
| 41 |
735-04273 |
Paddle Auger, Rubber This part replaces 735-04238. Price: $12.93 |
| 42 |
736-04502A |
Washer, Flat, M12 This part replaces 736-04502. Price: $3.24 |
| 43 |
736-0685 |
FLAT WASHER Not Available Price: |
| 44 |
741-04466 |
BALL BEARING Not Available Price: |
