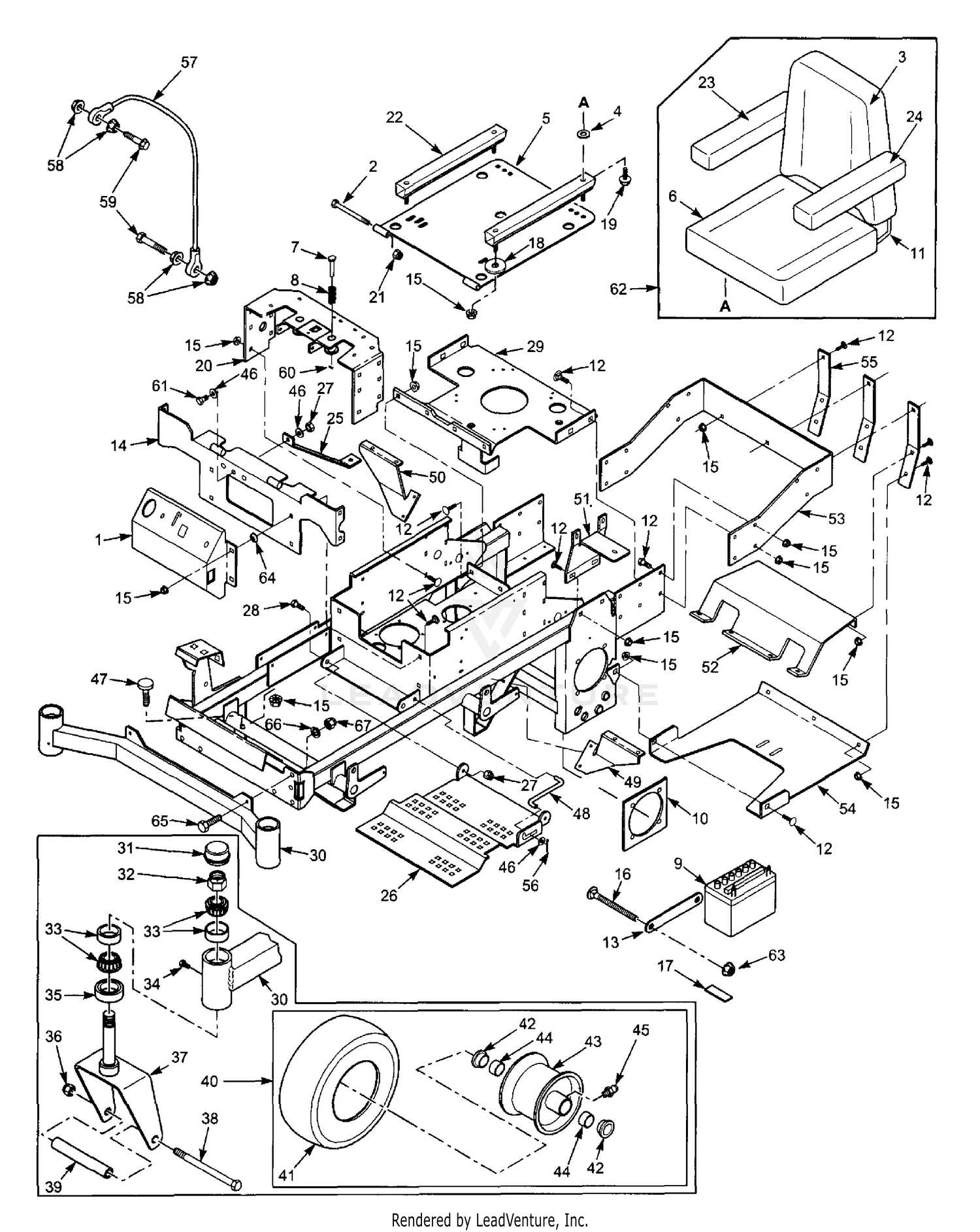

| Ref | Part Number | Description |
|---|
| 1 |
423218 |
Panel, Instrument Price: Call Us |
| 2 |
04001-63 |
Bolt, Hex Head 5/16-18 x 3-1/2" Price: Call Us |
| 3 |
484716 |
BACK CUSHION This part replaces 482105. Price: Call Us |
| 4 |
04041-11 |
Flatwasher, 3/8-.406 x 1.5 x .179 Price: Call Us |
| 5 |
451220 |
Plate, Seat Mounting Price: Call Us |
| 6 |
482111 |
Cushion, Lower Seat Price: Call Us |
| 7 |
43462 |
Pin Retainer, spring Price: Call Us |
| 8 |
481389 |
Spring Price: Call Us |
| 9 |
48015 |
Battery Price: Call Us |
| 10 |
423279 |
Plate Weldment, Motor Backing This part replaces 451290. Price: Call Us |
| 11 |
482190 |
Pan, Seat Mounting Price: Call Us |
| 12 |
04003-12 |
Bolt, Carr 5/16-18 x 3/4" Price: Call Us |
| 13 |
423058 |
Plate, Battery Mounting Price: Call Us |
| 14 |
451273 |
Weldment, Seat Plate Mounting Price: Call Us |
| 15 |
04019-03 |
Nut, Serr. Flange 5/16-18 Price: Call Us |
| 16 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 17 |
48661 |
Pad, Rubber Price: Call Us |
| 19 |
04003-04 |
Bolt, Carr. 5/16-18 x 1" Price: Call Us |
| 20 |
451221 |
Weldment, Seat Brace Price: Call Us |
| 21 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 22 |
46570 |
Seat Track Assy Price: Call Us |
| 23 |
482108 |
Arm Pad, RH Price: Call Us |
| 24 |
482107 |
Arm Pad, LH Price: Call Us |
| 25 |
423060 |
Brace, Seat Plate Price: Call Us |
| 26 |
423211 |
Footplate Price: Call Us |
| 27 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 28 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 29 |
451262 |
Plate, Engine Mounting Price: Call Us |
| 31 |
481559 |
Cap, Grease Price: Call Us |
| 32 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 33 |
481657 |
Bearing Set Price: Call Us |
| 34 |
482028-01 |
Plug, 1/4-28 Price: Call Us |
| 35 |
481025 |
Seal, 2.0" OD x 1.625" ID Price: Call Us |
| 36 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 37 |
45934 |
Yoke, Front Caster Wheel Price: Call Us |
| 38 |
04001-134 |
Bolt, Hex Head 1/2-13 x 7-1/2" Price: Call Us |
| 39 |
43430 |
Sleeve Price: Call Us |
| 41 |
481613 |
Tire, 13 x 5.0-6 Smooth Price: Call Us |
| 42 |
481770 |
Bushing Price: Call Us |
| 44 |
481846 |
Bearing Price: Call Us |
| 45 |
48114-06 |
Fitting, Grease Price: Call Us |
| 46 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x.105 Price: Call Us |
| 47 |
481284 |
Stud, Rubber Stop Price: Call Us |
| 48 |
44136 |
Rod, Footplate Prop Price: Call Us |
| 49 |
423202 |
Bracket, Lower LH Fuel Tank Price: Call Us |
| 50 |
423200 |
Bracket, Fuel Tank Front Price: Call Us |
| 51 |
423764 |
Mounting Bracket, Fuel Tank This part replaces 423201. Price: Call Us |
| 52 |
423186 |
Heatshield Price: Call Us |
| 53 |
423212 |
Bumper, Rear Price: Call Us |
| 54 |
423179 |
Plate, Skid Price: Call Us |
| 55 |
423229 |
Bracket, Support Price: Call Us |
| 56 |
04062-02 |
Hair Pin Cotter, .080 x 1.19 Price: Call Us |
| 57 |
48566 |
Cable, Seat Stop Price: Call Us |
| 58 |
04019-02 |
Nut, Serr. Flange 1/4-20 Price: Call Us |
| 59 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 60 |
04060-01 |
Roll Pin, Spring 5/32 x 3/4" Price: Call Us |
| 61 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 62 |
482027 |
Seat Assembly Price: Call Us |
| 63 |
04021-08 |
Nut, Elastic Stop 1/4-20 Price: Call Us |
| 64 |
04024-03 |
Push Nut, 5/16 Price: Call Us |
| 65 |
04001-28 |
Bolt, Hex Head 7/16-14 x 1-1/4" Price: Call Us |
| 66 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 482109 |
Bracket, |
Armrest LH Price: Call Us 482109 |
| 482110 |
Bracket, |
Armrest RH Price: Call Us 482110 |
