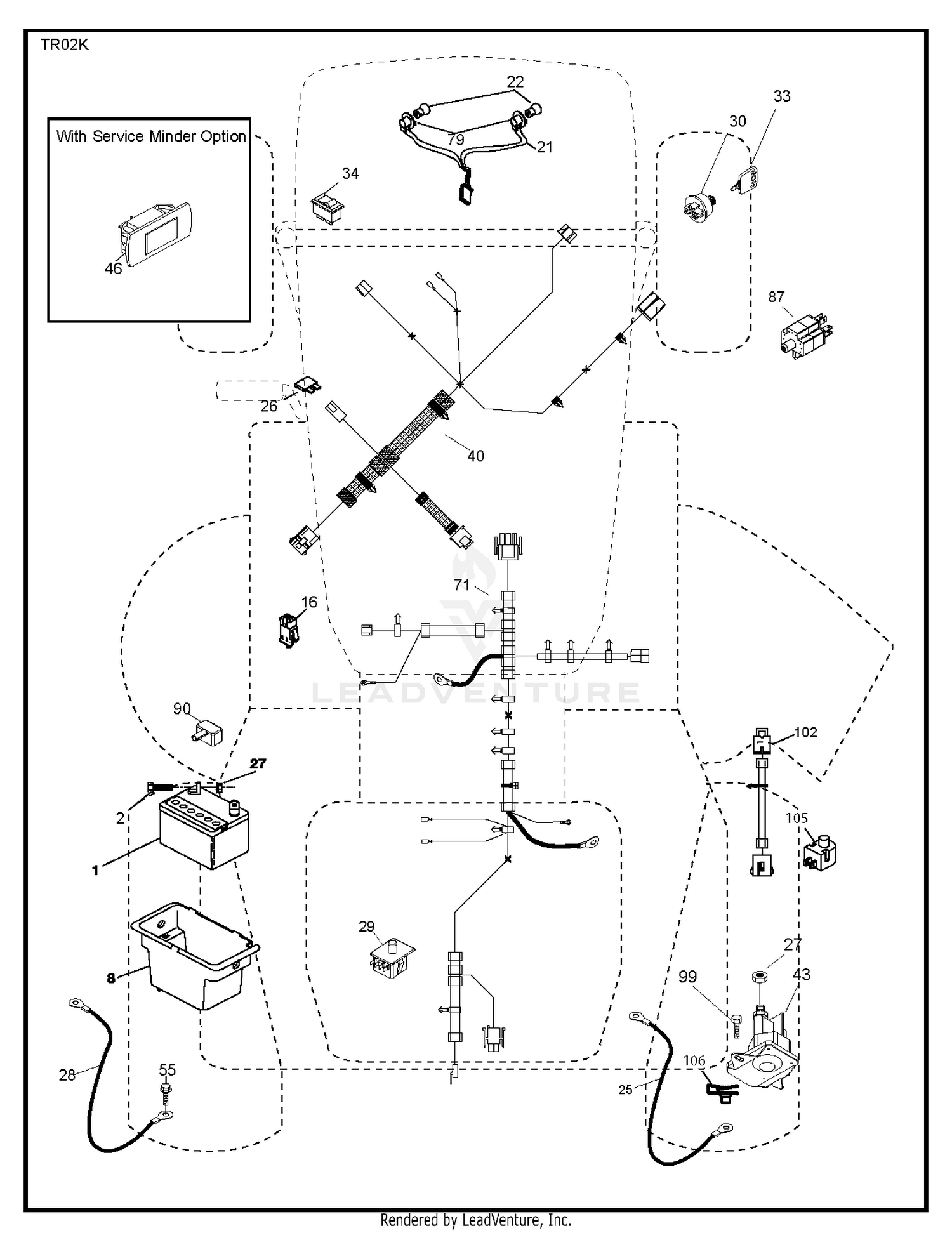

| Ref | Part Number | Description |
|---|
| 1 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $139.99 |
| 2 |
36-7550 |
DISCONTINUED Price: Call Us |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
107-3039 |
PIN-LYNCH This part replaces 3290-243. Price: $6.96 |
| 4 |
37-9580 |
DISCONTINUED Price: Call Us |
| 5 |
27-9870 |
PIN-SWITCH, SEAT Price: $31.55 |
| 6 |
3220-2 |
NUT-JAM Price: $0.50 |
| 7 |
3253-24 |
WASHER-LOCK/SP Price: $0.37 |
| 8 |
2411-33 |
BALLJOINT-RH (W/GROMMET) This part replaces 37-9570. Price: $24.45 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $11.99 |
| 9 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 11 |
323-12 |
SCREW-HH Price: $1.14 |
| 12 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 13 |
28-0570 |
SPRING-COMPRESSION Price: $33.04 |
| 14 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 15 |
71-4490 |
SEAT SUPT BRKT WA *R This part replaces 27-9830. Price: $142.74 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $11.99 |
| 21 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 25 |
581498001 |
CABLE.BATT.RED.8GA.17 Price: $4.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $3.99 |
| 27 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 28 |
532421686 |
CABLE.GROUND.REAR.BATTERY.8G Price: $11.99 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $12.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $9.99 |
| 33 |
532411933 |
KEY.CHAIN.BLISTER.PACK.GEN.USA Price: $6.99 |
| 34 |
532110712 |
SWITCH LT Price: $4.99 |
| 40 |
581023101 |
HARNESS.TEX.DASH.MAN.REAR BATT Price: $24.99 |
| 43 |
582042801 |
SOLENOID.STARTER.BRASS.PLUNGER This part replaces 532192507. Price: $7.99 |
| 55 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 817060512. Price: $3.99 |
| 71 |
581023001 |
HARNESS.TEX.CHSSIS.REAR.BATT Price: $39.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $11.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $2.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $11.99 |
