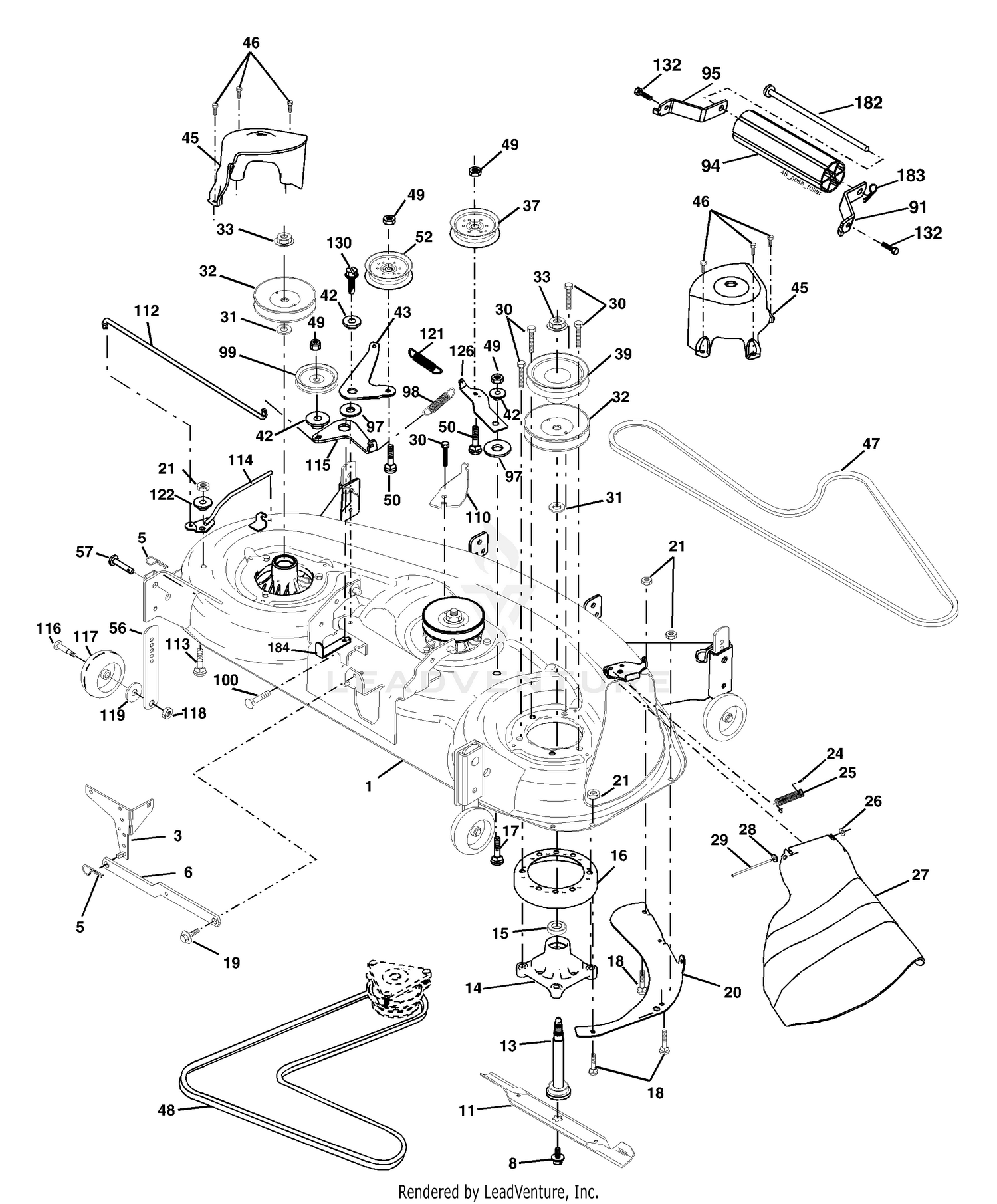

| Ref | Part Number | Description |
|---|
| 1 |
532184233 |
DECK.SVC.4.GA.WHLS.48".BLK This part replaces 532181848. Price: $349.99 |
| 1 |
98-3206 |
DECAL This part replaces 12-9140. Price: $1.99 |
| 2 |
2410-18 |
CAP-PLASTIC Price: $1.41 |
| 3 |
29-9080 |
HANDLE Price: $53.41 |
| 3 |
532178915 |
BRACKET ASM. Price: $22.99 |
| 4 |
29-9100 |
BRUSH AND HANDLE ASM This part replaces 29-9090. Price: $58.15 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532178024. Price: $9.99 |
| 13 |
532174360 |
SHAFT ASM W/LOWER BEARING Price: $39.99 |
| 14 |
532174358 |
HOUSING, MANDREL 48" Price: $49.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 17 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $39.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 37 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 39 |
532174375 |
PULLEY.DRIVEN.DECK.48' Price: $34.99 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
532174373 |
ARM, IDLER SECONDARY Price: $9.99 |
| 45 |
532180806 |
COVER.MANDREL.DECK.48" Price: $12.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532180808 |
V-BELT, 48"SECONDARY Price: $49.99 |
| 48 |
532174368 |
V-BELT PRIMARY 48" Price: $49.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 52 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 91 |
529846201 |
SERVICE KIT BRKT.NOSEROLLER.RH This part replaces 532180535. Price: $5.99 |
| 94 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 95 |
529846101 |
SERVICE KIT BRKT.NOSEROLLER.LH This part replaces 532180534. Price: $5.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
532179479 |
SPRING PRIMARY DRIVE Price: $3.99 |
| 99 |
532193195 |
PULLEY.V.IDLER This part replaces 532184058. Price: $49.99 |
| 100 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 110 |
532175016 |
ARM, SPRING SECONDARY Price: $4.99 |
| 112 |
532174387 |
LEVER, TENSION RELIEF LINK Price: $14.99 |
| 113 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 114 |
532174384 |
LEVER ASM, TENSION RELIEF Price: $8.99 |
| 115 |
532174609 |
ARM, SPRING TENSION RELIEF Price: $4.99 |
| 116 |
596434404 |
Bolts This part replaces 532184219. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 121 |
532174371 |
SPRING.DRIVE.SECONDARY.48".DEC Price: $5.99 |
| 122 |
532174606 |
BUSHING, PIVOT TENSION RELIEF Price: $3.99 |
| 126 |
532174372 |
ARM, IDLER PRIMARY DECK Price: $9.99 |
| 130 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 132 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 182 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 184 |
532173979 |
KEEPER BELT IDLER PLATED Price: $4.99 |
