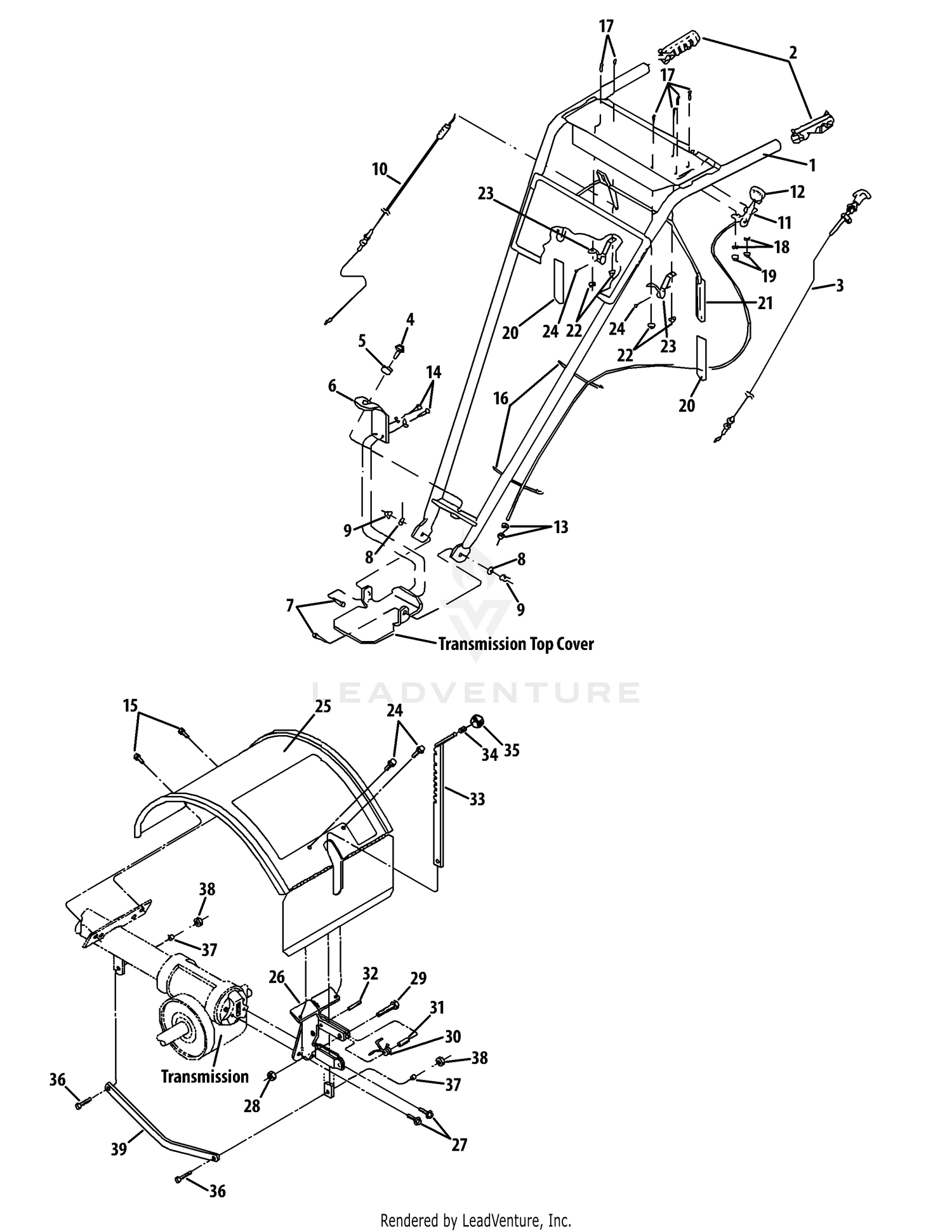

| Ref | Part Number | Description |
|---|
| 1 |
1918811P |
HANDLE BAR WITH DECALS Not Available Price: |
| 2 |
720-0274 |
Grip Price: $9.99 |
| 3 |
1916784P |
Reverse Clutch Control Cable Price: $63.82 |
| 4 |
710-04042 |
Hex Flange Screw, 3/8-16 Price: $4.05 |
| 5 |
736-04445 |
Keyed Washer Price: $3.65 |
| 6 |
1900475010 |
Handlebar Hgt. Adjustment Bracket Price: $19.83 |
| 7 |
710-0514 |
Hex Hd. Screw, 3/8-16 x 1 Price: $3.78 |
| 8 |
736-3050 |
Plain Washer, 3/8 Price: $3.90 |
| 9 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 10 |
946-04027 |
Forward Clutch Control Cable Price: $41.81 |
| 11 |
GW-9442P |
Wheel Gear Control & Cable Ass. Price: $35.23 |
| 12 |
GW-9057 |
Wheel Gear Control Lever Knob Price: $7.12 |
| 13 |
912-3057 |
NUT-5/16X 24 This part replaces 1186211. Price: $5.94 |
| 14 |
710-0623 |
Self-tapping Screw, 3/8-16 x 3/4 Price: $3.93 |
| 15 |
710-0759 |
SCREW 5/16-18 x .625 GR5 Not Available Price: |
| 16 |
725-0157 |
Cable Ties Price: $3.46 |
| 17 |
1114748 |
Round Head Screw, #10-32 x 1/2 Price: $5.16 |
| 18 |
936-0722 |
Lockwasher, #10 Price: $5.81 |
| 19 |
1186208 |
Hex Nut, #10-32 Not Available Price: |
| 20 |
GW-9390 |
Grip Price: $4.26 |
| 21 |
1918840 |
Forward Clutch Bail Price: $102.41 |
| 22 |
GW-9853 |
Sems Nut Price: $6.01 |
| 23 |
GW-20806 |
Bail Support Bracket Price: $7.83 |
| 24 |
710-0599 |
Self-tapping Screw, 1/4-20 x 1/2 Price: $3.86 |
| 25 |
686-04078-0638 |
TINE SHIELD ASSEMBLY (MTD RED) Not Available Price: |
| 26 |
GW-2525 |
Hood Bracket Price: $85.92 |
| 27 |
710-04049 |
Hex Flange Screw, 5/16-18 x 5/8 Price: $4.11 |
| 28 |
712-04064 |
Hex Locknut, 1/4-20 Price: $3.64 |
| 29 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 30 |
732-04320 |
Spring Price: $3.85 |
| 31 |
750-04556 |
Spacer Price: $6.01 |
| 32 |
715-04034 |
Roll Pin (spiral), 1/4 x 1 Price: $6.01 |
| 33 |
1900864 |
Depth Regulator Price: $75.79 |
| 34 |
GW-9120 |
Retaining Ring Price: $5.94 |
| 35 |
GW-9119 |
Depth Regulator Knob Price: $10.22 |
| 36 |
710-3005 |
Hex Head Screw, 3/8-16 x 1-1/4 Price: $3.61 |
| 37 |
GW-1113-1099 |
Drag Bar Bushing Price: $4.53 |
| 38 |
712-04065 |
Hex Nut, 3/8-16 Price: $3.68 |
